Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

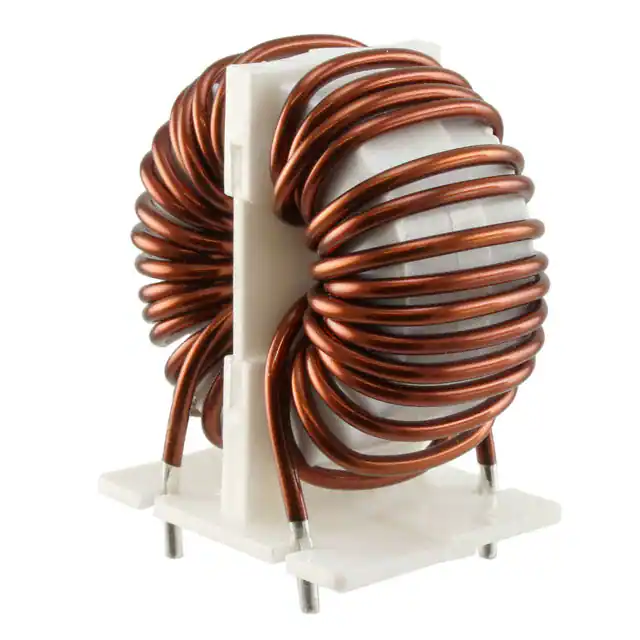

SC-15-10JCMC 1MH 15A 2LN TH |
394 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCF19XV-080-1R0A011JVCMC 1.5MH 8A 2LN TH AEC-Q200 |
609 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 8A | 8.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF19XV-150-1R3A006JVCMC 440UH 15A 2LN TH AEC-Q200 |
214 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 440 µH @ 100 kHz | 15A | 2.91mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

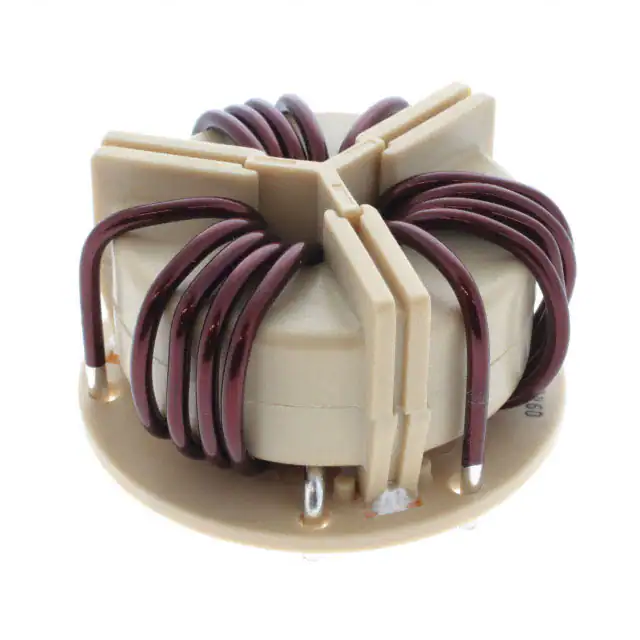

SC-07-S045JHCMC 441UH 7A 3LN TH |
211 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 441 µH @ 10 kHz | 7A | 13mOhm | 500V | 500V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-15-20JHCMC 2MH 15A 2LN TH |
195 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCR38-350-1R8B008JHCMC 850UH 35A 2LN TH |
457 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 850 µH @ 10 kHz | 35A | 2.5mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SCR25XV-170-1R7A009JHCMC 1MH 17A 2LN TH AEC-Q200 |
152 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 17A | 3.83mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR29XV-200-2R0A011JHCMC 740UH 20A 2LN TH AEC-Q200 |
230 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 740 µH @ 100 kHz | 20A | 2.84mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR29XV-050-1R0A044JVCMC 11.8MH 5A 2LN TH AEC-Q200 |
101 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 11.8 mH @ 100 kHz | 5A | 40.3mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-070-1R2A030JVCMC 5.5MH 7A 2LN TH AEC-Q200 |
115 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 100 kHz | 7A | 19.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
