Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EXC-24CE900UCMC 160MA 2LN 90 OHM SMD |
7,207 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 160mA | 1.75Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
.jpg "EXC-24CB102U")
|
EXC-24CB102UCMC 50MA 2LN 1K OHM SMD |
13,434 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 50mA | 1.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
.jpg "DLW21SN921SK2L")
|
DLW21SN921SK2LCMC 160MA 2LN 920 OHM SMD |
7,327 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 920 Ohms @ 100 MHz | - | 160mA | 950mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ECMF02-2AMX6CMC 200MA 2LN SMD ESD |
118,893 | - |
|
Datasheet | 6-UFQFN | Signal Line | 2 | - | - | 200mA | 2.5Ohm | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
DLW21SN900SQ2LCMC 330MA 2LN 90 OHM SMD |
44,097 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW21SN371SQ2LCMC 280MA 2LN 370 OHM SMD |
40,860 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 370 Ohms @ 100 MHz | - | 280mA | 450mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ECMF02-4CMX8CMC 2LN SMD ESD |
160,562 | - |
|
Datasheet | 8-UFDFN | Signal Line | 2 | - | - | - | 4Ohm | - | - | -40°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|
|
DLW21SN900HQ2LCMC 280MA 2LN 90 OHM SMD |
110,547 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 280mA | 410mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACM2520-801-3P-T002CMC 150MA 3LN 800 OHM SMD |
1,607 | - |
|
Datasheet | Horizontal, 6 PC Pad | Signal Line | 3 | 800 Ohms @ 100 MHz | - | 150mA | 1.6Ohm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ECMF4-20A42N10CMC 100MA 4LN SMD ESD |
123,554 | - |
|
Datasheet | 10-UFQFN | Signal Line | 4 | - | - | 100mA | 5Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
ECMF02-2HSMX6CMC 100MA 2LN SMD ESD |
7,275 | - |
|
Datasheet | 6-UFQFN | Signal Line | 2 | - | - | 100mA | 9Ohm | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ECMF2-40A100N6CMC 100MA 2LN SMD ESD |
3,464 | - |
|
Datasheet | 6-XFDFN | Signal Line | 2 | - | - | 100mA | 3Ohm (Typ) | - | - | -55°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|

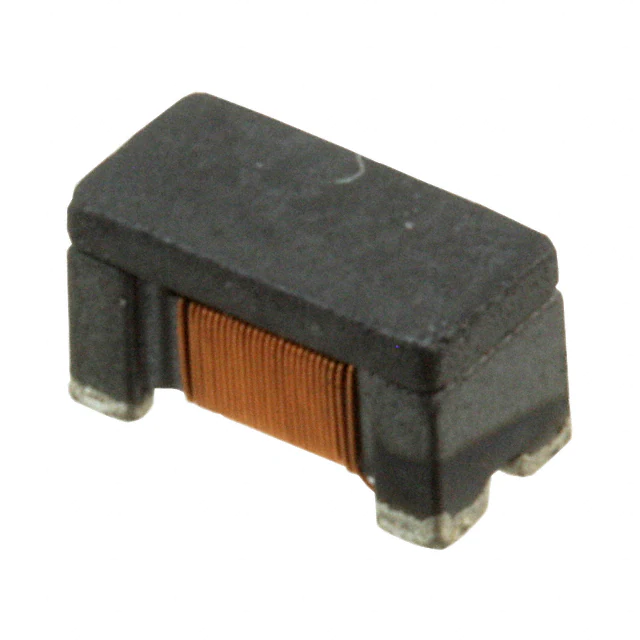

SRF3216-222YCMC 200MA 2LN 2.2KOHM SMD |
57,340 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 2.2 kOhms @ 100 MHz | - | 200mA | 1.2Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
MCZ1210DH500CPTA0GCMC 50 OHM SMD |
23,698 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | - | 50 Ohms @ 100 MHz | - | - | - | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
ECMF4-40A100N10CMC 100MA 4LN SMD ESD |
2,345 | - |
|
Datasheet | 10-XFDFN | Signal Line | 4 | - | - | 100mA | 3Ohm (Typ) | - | - | -55°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|
EXC-24CG900UCMC 100MA 2LN 90 OHM SMD |
26,235 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|

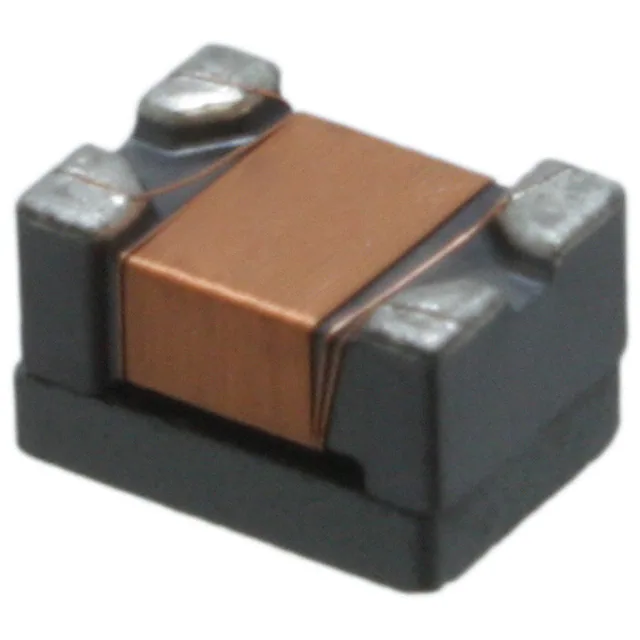

SRF4532-510YCMC 51UH 200MA 2LN 2KOHM SMD |
53,894 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 2 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 3.5Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF4532-101YCMC 100UH 200MA 2LN 5KOHM SMD |
17,083 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 5 kOhms @ 10 MHz | 100 µH @ 100 kHz | 200mA | 8.9Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
.jpg "PE-1206CCMC222STS")
|
PE-1206CCMC222STSCMC 200MA 2LN 2.2K OHM SMD |
112,900 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 2.2 kOhms @ 100 MHz | - | 200mA | 1.2Ohm | 50V | - | - | - | - | - | - | - |
|
2744045447CMC 5A 2LN 60 OHM SMD |
138,230 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 64 Ohms @ 100 MHz | - | 5A | 1.4mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
