Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCFE201204A101TGCMC 100MA 4LN 100 OHM SMD ESD |
2,733 | - |
|
Datasheet | 0805 (2012 Metric), 10 Lead | Signal Line | 4 | 100 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ACM2520-301-2P-T002CMC 400MA 2LN 300 OHM SMD |
5,045 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 300 Ohms @ 100 MHz | - | 400mA | 350mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACM2520-102-2P-T002CMC 200MA 2LN 1K OHM SMD |
16,646 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 200mA | 900mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
PCMF2USB3SZCMC 4LN SMD ESD |
13,930 | - |
|
Datasheet | 10-UFBGA, WLCSP | Signal Line | 4 | - | - | - | 3Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
ACM2520-451-2P-T002CMC 350MA 2LN 450 OHM SMD |
12,519 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 450 Ohms @ 100 MHz | - | 350mA | 400mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
CM2021Y330R-10CMC 15A 2LN 33 OHM SMD |
25,792 | - |
|
Datasheet | 2322 (5956 Metric), 4 Lead | Power Line | 2 | 33 Ohms @ 100 MHz | - | 15A | 0.75mOhm | 280V | - | -40°C ~ 125°C | - | - | - | - | - |
|
50475CCMC 4.7MH 400MA 2LN SMD |
7,155 | - |
|
Datasheet | Horizontal, 4 J-Lead | Power Line | 2 | - | 4.7 mH @ 100 kHz | 400mA | 700mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
50105CCMC 1MH 700MA 2LN SMD |
6,446 | - |
|
Datasheet | Horizontal, 4 J-Lead | Power Line | 2 | - | 1 mH @ 100 kHz | 700mA | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
50474CCMC 470UH 700MA 2LN SMD |
3,874 | - |
|
Datasheet | Horizontal, 4 J-Lead | Power Line | 2 | - | 470 µH @ 100 kHz | 700mA | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
50225CCMC 2.2MH 500MA 2LN SMD |
2,703 | - |
|
Datasheet | Horizontal, 4 J-Lead | Power Line | 2 | - | 2.2 mH @ 100 kHz | 500mA | 400mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
PE-1812ACC101STSCMC 200MA 2LN 7.5KOHM SMD |
36,407 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 7.5 kOhms @ 10 MHz | - | 200mA | 2Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PE-1812ACC510STSCMC 230MA 2LN 3.5KOHM SMD |
12,343 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 3.5 kOhms @ 10 MHz | - | 230mA | 1Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

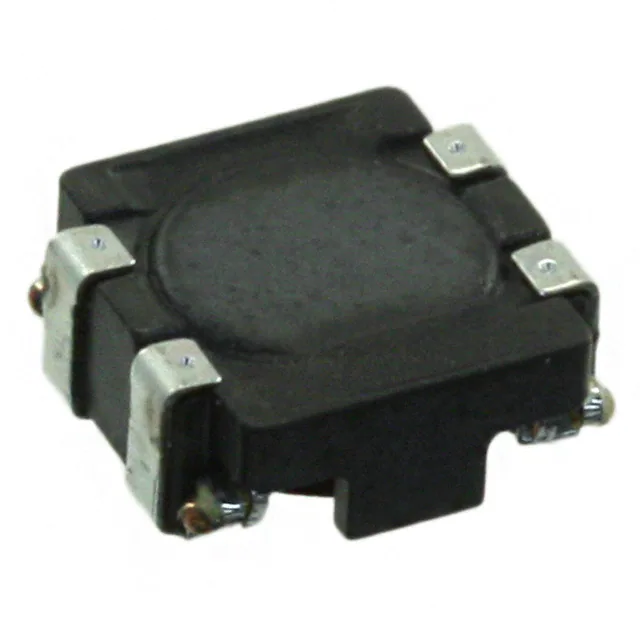

ACM4520-421-2P-T000CMC 2.8A 2LN 420 OHM SMD |
8,935 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 420 Ohms @ 100 MHz | - | 2.8A | 55mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
PCMF3USB3SZCMC 6LN SMD ESD |
21,969 | - |
|
Datasheet | 15-UFBGA, WLCSP | Signal Line | 6 | - | - | - | 3Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ACP3225-102-2P-T000CMC 1.5A 2LN 1K OHM SMD |
216,894 | - |
|
Datasheet | 1210 (3225 Metric), 4 Leads | Power Line | 2 | 1 kOhms @ 100 MHz | - | 1.5A | 50mOhm (Typ) | 60V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
PE-1210CCMC601STSCMC 1A 2LN 600 OHM SMD |
39,331 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 600 Ohms @ 100 MHz | - | 1A | 120mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
CM3421Y600R-10CMC 15A 2LN 60 OHM SMD |
158,170 | - |
|
Datasheet | 3822 (8531 Metric), 4 Lead | Power Line | 2 | 60 Ohms @ 100 MHz | - | 15A | 0.75mOhm | 140V | - | -40°C ~ 125°C | - | - | - | - | - |
|
ACT32P-102-2P-TL01CMC 800MA 2LN 1KOHM SMD AEC-Q200 |
6,307 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 800mA | 150mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
ACM4520-901-2P-T000CMC 2.3A 2LN 900 OHM SMD |
29,751 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 900 Ohms @ 100 MHz | - | 2.3A | 60mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACM2012-361-2P-T001CMC 220MA 2LN 360 OHM SMD |
26,688 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 360 Ohms @ 100 MHz | - | 220mA | 500mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
