Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "744232222")
|
744232222CMC 200MA 2LN 2.2KOHM SMD |
6,941 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 2.2 kOhms @ 100 MHz | - | 200mA | 1.2Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744230251CMC 350MA 2LN 250OHM SMD AECQ200 |
5,465 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 250 Ohms @ 100 MHz | - | 350mA | 280mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|

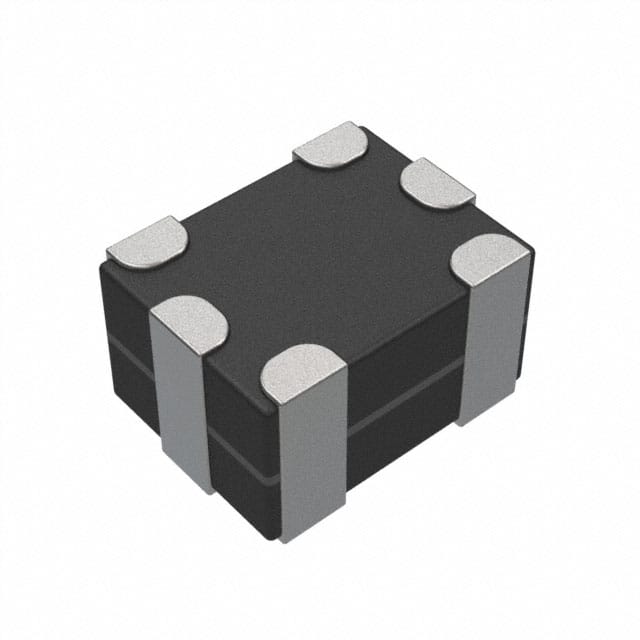

LCFE080602A900TGCMC 100MA 2LN 90 OHM SMD ESD |
5,085 | - |
|
Datasheet | 0302 (0806 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 6Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
744232090CMC 370MA 2LN 90OHM SMD AEC-Q200 |
3,449 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82787C0513H002CMC 51UH 200MA 2LN 2.8KOHM SMD |
13,526 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 2.8 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 1Ohm | 50V | - | -40°C ~ 150°C | - | - | - | - | - |
|
ACM7060-301-2PL-TL01CMC 5A 2LN 300 OHM SMD |
10,582 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 300 Ohms @ 100 MHz | - | 5A | 10mOhm | 80V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACM2012-900-2P-T001CMC 400MA 2LN 90OHM SMD AEC-Q200 |
20,872 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 190mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
ECLAMP8052P.TCTCMC 2LN SMD ESD AEC-Q100 |
13,320 | - |
|
Datasheet | 5-UFDFN | - | 2 | - | - | - | 1.8Ohm | - | - | -40°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|
|
ACM7060-701-2PL-TL01CMC 4A 2LN 700 OHM SMD |
42,303 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 4A | 15mOhm | 80V | - | -40°C ~ 85°C | - | - | - | - | - |
|
CPFC74NP-PS02H2A20CMC 2A 2LN 200 OHM SMD |
59,242 | - |
|
Datasheet | Vertical, 4 Gull Wing | Power Line | 2 | 200 Ohms @ 20 MHz | - | 2A | 120mOhm (Typ) | - | - | - | - | - | - | - | - |
|
SRF0905-102YCMC 1MH 800MA 2LN 1.5KOHM SMD |
54,605 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1.5 kOhms @ 1 MHz | 1 mH @ 100 kHz | 800mA | 310mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
CPFC74NP-PS10H2A15CMC 1.5A 2LN 700 OHM SMD |
36,523 | - |
|
Datasheet | Vertical, 4 Gull Wing | Power Line | 2 | 700 Ohms @ 100 MHz | - | 1.5A | 120mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
SRF0905-472YCMC 4.7MH 400MA 2LN 4KOHM SMD |
32,991 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 4 kOhms @ 300 kHz | 4.7 mH @ 100 kHz | 400mA | 900mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF0905-251YCMC 250UH 1.2A 2LN 600 OHM SMD |
24,128 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 3 MHz | 250 µH @ 100 kHz | 1.2A | 130mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF0905-202YCMC 2MH 600MA 2LN 3KOHM SMD |
14,648 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 3 kOhms @ 1 MHz | 2 mH @ 100 kHz | 600mA | 420mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF0905-250YCMC 25UH 1A 2LN 600 OHM SMD |
11,646 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 20 MHz | 25 µH @ 1 kHz | 1A | 160mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
CPFC74NP-PS03H2A25CMC 2.5A 2LN 300 OHM SMD |
11,555 | - |
|
Datasheet | Vertical, 4 Gull Wing | Power Line | 2 | 300 Ohms @ 160 MHz | - | 2.5A | 120mOhm (Typ) | - | - | - | - | - | - | - | - |
|
CPFC74NP-PS01H2A30CMC 3A 2LN SMD |
9,391 | - |
|
Datasheet | Vertical, 4 Gull Wing | Power Line | 2 | - | - | 3A | 60mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
SRF0905-652YCMC 6.5MH 300MA 2LN 5KOHM SMD |
6,742 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 5 kOhms @ 300 kHz | 6.5 mH @ 100 kHz | 300mA | 1.05Ohm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
.jpg "744233121")
|
744233121CMC 280MA 2LN 120OHM SMD AECQ200 |
3,418 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 280mA | 300mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
