Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744237701CMC 9UH 8A 2LN 700OHM SMD |
1,436 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 700 Ohms @ 100 MHz | 9 µH @ 100 kHz | 8A | 6mOhm | 80V | 1000V (1kV) | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
744253101CMC 100UH 450MA 3LN SMD |
3,515 | - |
|
Datasheet | - | Signal Line | 3 | - | 100 µH @ 100 kHz | 450mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

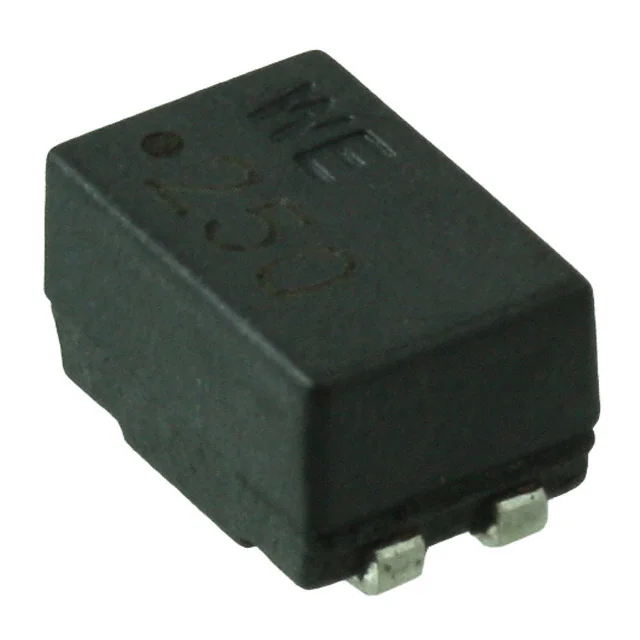

744223CMC 500UH 1A 2LN 3.3K OHM SMD |
5,196 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 3.3 kOhms @ 6 MHz | 500 µH @ 100 kHz | 1A | 150mOhm | 80V | - | -40°C ~ 125°C | - | - | - | Automotive | AEC-Q200 |
|
|
744222CMC 1MH 800MA 2LN 6KOHM SMD |
4,597 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 6 kOhms @ 4 MHz | 1 mH @ 100 kHz | 800mA | 310mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

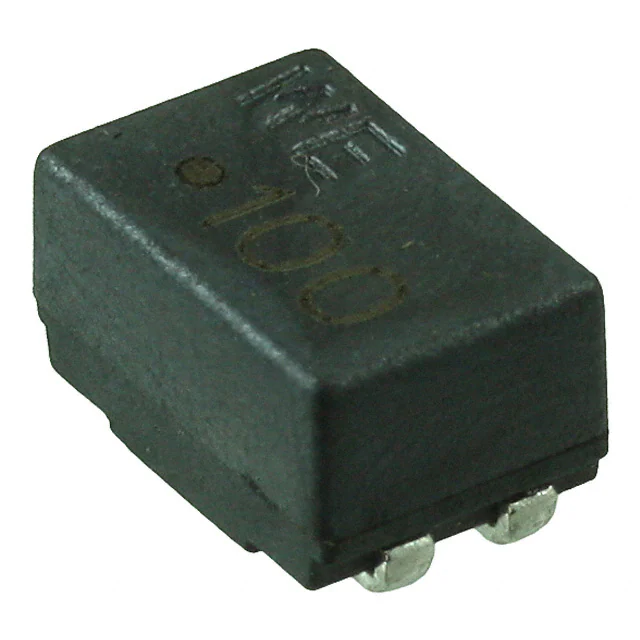

744226CMC 10UH 1.6A 2LN 920 OHM SMD |
4,539 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 920 Ohms @ 100 MHz | 10 µH @ 1 kHz | 1.6A | 80mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744227CMC 51UH 1A 2LN 5.5K OHM SMD |
3,695 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 5.5 kOhms @ 10 MHz | 51 µH @ 1 kHz | 1A | 160mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744221CMC 2MH 600MA 2LN 9.2K OHM SMD |
1,673 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 9.2 kOhms @ 2 MHz | 2 mH @ 100 kHz | 600mA | 420mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744225SCMC 40UH 900MA 2LN 3.1K OHM SMD |
1,109 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 3.1 kOhms @ 50 MHz | 40 µH @ 1 kHz | 900mA | 250mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744220CMC 4.7MH 500MA 2LN 20K OHM SMD |
858 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 20 kOhms @ 1 MHz | 4.7 mH @ 100 kHz | 500mA | 750mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744272102CMC 1MH 950MA 2LN 3.6K OHM SMD |
4,820 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 3.6 kOhms @ 6 MHz | 1 mH @ 100 kHz | 950mA | 180mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
