Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7448258022CMC 2.2MH 8A 2LN TH |
2,465 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 8A | 14mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

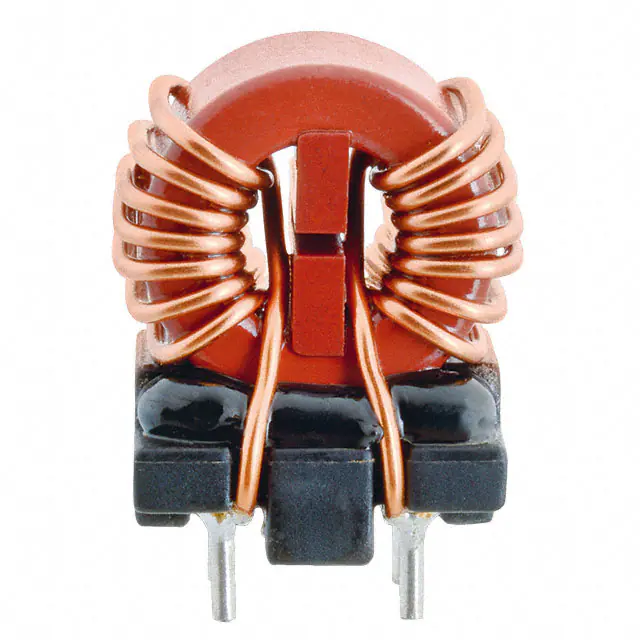

74482210002CMC 175UH 10A 2LN TH |
1,096 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 175 µH @ 100 kHz | 10A | 4mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744825510CMC 10MH 5A 2LN TH |
260 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 5A | 55mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

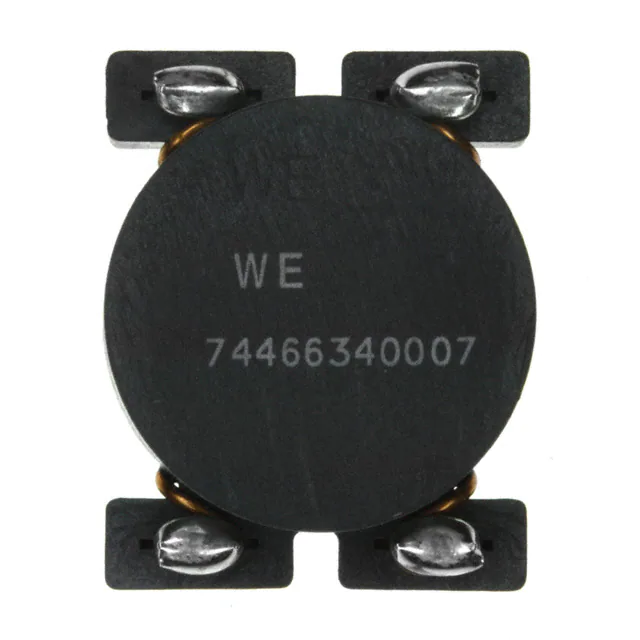

74466340007CMC 700UH 5.25A 2LN SMD |
530 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 700 µH @ 10 kHz | 5.25A | 30mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448680120CMC 330UH 12A 2LN TH |
566 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 330 µH @ 10 kHz | 12A | 6mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|

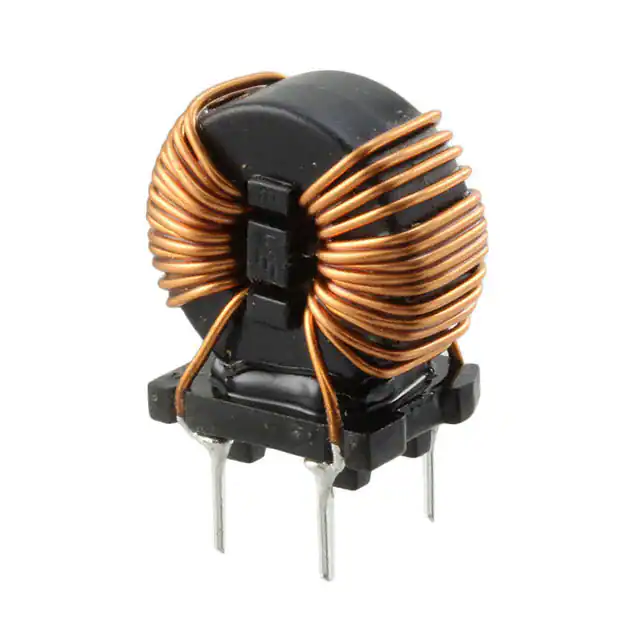

7448030509CMC 9MH 5A 2LN TH |
1,067 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 5A | 32mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
7448031002CMC 2MH 10A 2LN TH |
324 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 10A | 6.3mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
7448040707CMC 7MH 7A 2LN TH |
507 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 7A | 22mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|

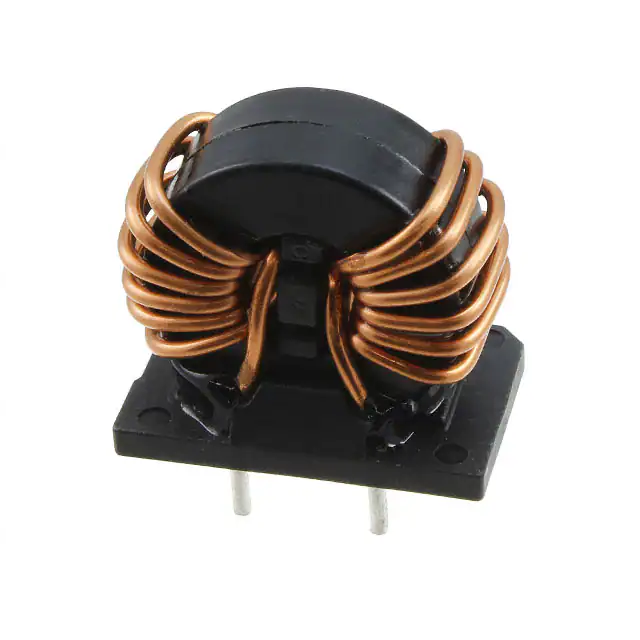

7448042001CMC 1MH 20A 2LN TH |
197 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 20A | 2.4mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448051804CMC 4.5MH 18A 2LN TH |
153 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 10 kHz | 18A | 4.2mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
