Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744272251CMC 250UH 2A 2LN 970 OHM SMD |
4,076 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 970 Ohms @ 15 MHz | 250 µH @ 100 kHz | 2A | 35mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272121CMC 120UH 2.5A 2LN 460 OHM SMD |
3,451 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 460 Ohms @ 30 MHz | 120 µH @ 100 kHz | 2.5A | 25mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272471CMC 470UH 1.6A 2LN 1.75K OHM SMD |
2,392 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.75 kOhms @ 10 MHz | 470 µH @ 100 kHz | 1.6A | 65mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272332CMC 3.3MH 650MA 2LN 8.9K OHM SMD |
1,546 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 8.9 kOhms @ 100 kHz | 3.3 mH @ 100 kHz | 650mA | 360mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272221CMC 220UH 2.2A 2LN 780 OHM SMD |
549 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 780 Ohms @ 15 MHz | 220 µH @ 100 kHz | 2.2A | 32mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744841414CMC 14UH 4A 2LN TH |
896 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 14 µH @ 10 kHz | 4A | 15mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

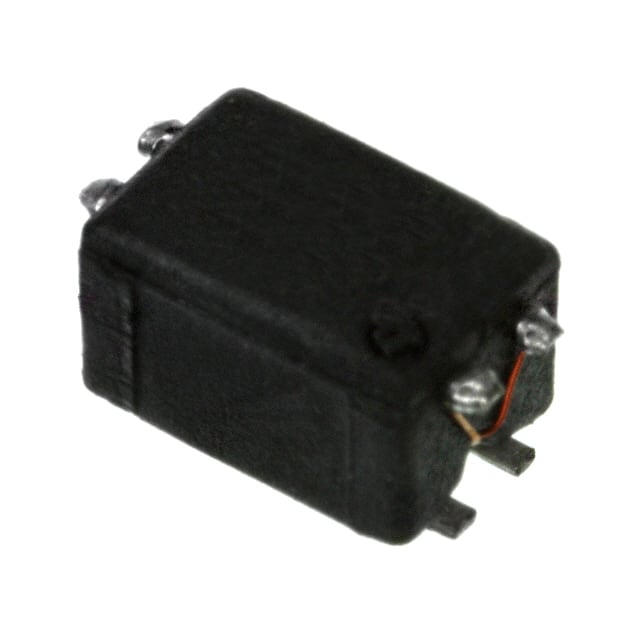

744242510CMC 51UH 400MA 2LN 2.5K OHM SMD |
34,636 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | 2.5 kOhms @ 25 MHz | 51 µH @ 100 kHz | 400mA | 320mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

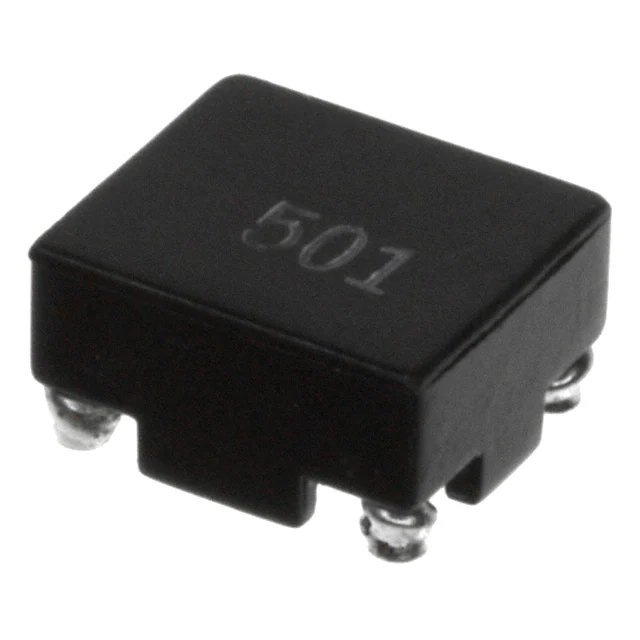

744273501CMC 5UH 5A 2LN 500 OHM SMD |
11,753 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 500 Ohms @ 130 MHz | 5 µH @ 100 kHz | 5A | 5.5mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

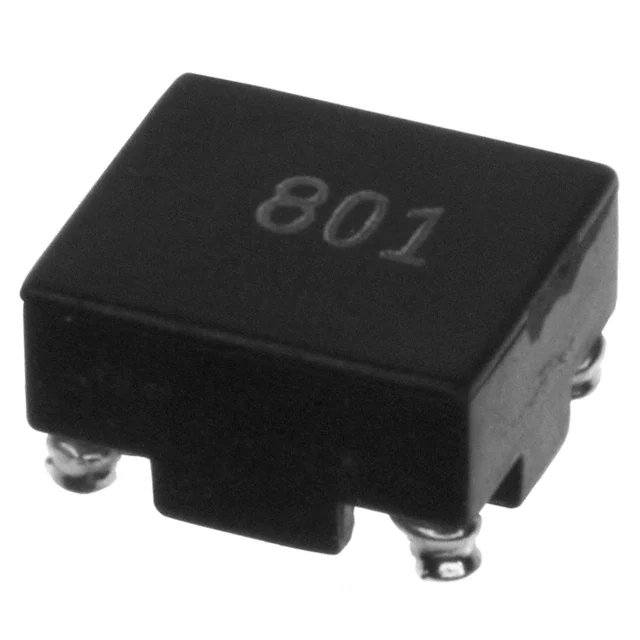

744273801CMC 9UH 3.5A 2LN 800 OHM SMD |
4,009 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 800 Ohms @ 120 MHz | 9 µH @ 100 kHz | 3.5A | 11mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744273102CMC 11UH 2.5A 2LN 1K OHM SMD |
2,204 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | 11 µH @ 100 kHz | 2.5A | 30mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
