Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T60405S6123X240CMC 810UH 40A 3LN 680 OHM TH |
921 | - |
|
Datasheet | Horizontal, 6 PC Pin | - | 3 | 680 Ohms @ 100 kHz | 810 µH @ 100 kHz | 40A | - | - | - | -55°C ~ 60°C | - | - | - | - | - |
|

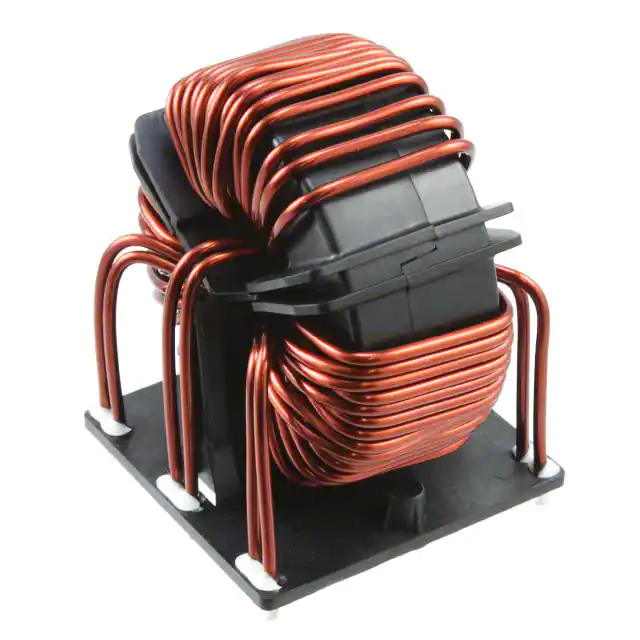

RB8532-36-0M8CMC 830UH 36A 3LN TH |
493 | - |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 830 µH @ 400 Hz | 36A | 2.3mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
TCM0605T-200-2P-T201CMC 100MA 2LN 20 OHM SMD |
1,520 | - |
|
Datasheet | 0202 (0505 Metric), 4 PC Pad | Signal Line | 2 | 20 Ohms @ 100 MHz | - | 100mA | 2.5Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
TCM0403M-120-2P-T210CMC 50MA 2LN SMD |
47,847 | - |
|
Datasheet | 0201 (0603 Metric) Variant, 4 Lead | Signal Line | 2 | - | - | 50mA | 1Ohm (Typ) | 5V | - | -25°C ~ 85°C | - | - | - | - | - |
|
NFG0NCN162HL3DCMC 100MA 3LN 25 OHM SMD |
3,963 | - |
|
Datasheet | 0302 (0806 Metric), 6 Lead | - | 3 | 25 Ohms @ 100 MHz | - | 100mA | - | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
EXC-14CH350UCMC 100MA 2LN 35 OHM SMD |
9,835 | - |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 1.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
LCF080602A250TGCMC 100MA 2LN 25 OHM SMD |
16,829 | - |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 25 Ohms @ 100 MHz | - | 100mA | 5Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
EXC-34CE670UCMC 250MA 2LN 67 OHM SMD |
5,145 | - |
|
Datasheet | 0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 250mA | 800mOhm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
BWCU00321619161M02CMC 340MA 2LN 160 OHM SMD |
32,700 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 160 Ohms @ 100 MHz | - | 340mA | 400mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
BWCU00321619102M02CMC 230MA 2LN 1K OHM SMD |
18,205 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 230mA | 1Ohm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
BWCU00321619900M02CMC 370MA 2LN 90 OHM SMD |
11,782 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
LCF121002A350TGCMC 100MA 2LN 35 OHM SMD |
6,839 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
.jpg "DLW21SZ670HQ2L")
|
DLW21SZ670HQ2LCMC 320MA 2LN 67 OHM SMD |
2,850 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 320mA | 310mOhm | 20V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SRF2012-261YACMC 300MA 2LN 260 OHM SMD |
8,996 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 260 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012A-670YACMC 400MA 2LN 67OHM SMD AEC-Q200 |
7,283 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012-371YACMC 300MA 2LN 370 OHM SMD |
4,408 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 370 Ohms @ 100 MHz | - | 300mA | 500mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012A-221YACMC 300MA 2LN 220OHM SMD AECQ200 |
3,993 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 220 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SRF2012-670YACMC 400MA 2LN 67 OHM SMD |
3,286 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012-671YACMC 140MA 2LN 670 OHM SMD |
2,012 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 670 Ohms @ 100 MHz | - | 140mA | 600mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012-221YACMC 300MA 2LN 220 OHM SMD |
1,915 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 220 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
