Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7448041104CMC 4MH 11A 2LN TH |
1,297 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 11A | 8.8mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
7448041502CMC 2MH 15A 2LN TH |
188 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 15A | 5mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
CMX1616Z171B-10CMC 176UH 62A 2LN TH |
157 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 176 µH @ 100 kHz | 62A | 0.65mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMX1616Z112B-10CMC 1MH 30A 2LN TH |
283 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 30A | 2.8mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CMX1616Z701B-10CMC 704UH 33A 2LN TH |
179 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 704 µH @ 100 kHz | 33A | 2.3mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
RT8122-16-4M0CMC 4MH 16A 2LN TH |
128 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 100 kHz | 16A | 10mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|
PE-96190NLCMC 15A (TYP) 2LN TH |
236 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | - | 15A (Typ) | 10mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PL8202CMC 9.7A 2LN SMD |
147 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 9.7A | 14mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8200NLCMC 14A 2LN SMD |
1,332 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 14A | 8mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
B82726S3543N040CMC 190UH 54A 2LN TH |
117 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 190 µH @ 100 kHz | 54A | 1.1mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CM6350R-475CMC 4.7MH 250MA 2LN SMD |
2,278 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 4.7 mH @ 10 kHz | 250mA | 1.05Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CM6296R-154CMC 150UH 9.5A 2LN SMD |
800 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 150 µH @ 1 kHz | 9.5A | 16mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296R-105CMC 1MH 3.5A 2LN SMD |
149 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 1 mH @ 1 kHz | 3.5A | 50mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6350R-473CMC 47UH 5A 2LN SMD |
348 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 47 µH @ 10 kHz | 5A | 8mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

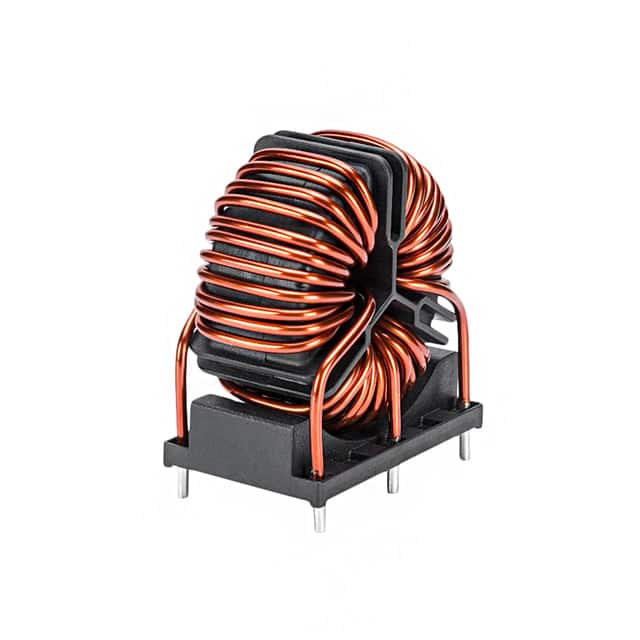

RT8532-20-2M5CMC 2.5MH 20A 3LN TH |
122 | - |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 2.5 mH @ 100 kHz | 20A | 7mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
|
SCF25-08-1300CMC 13MH 8A 2LN TH |
283 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 13 mH @ 10 kHz | 8A | 18mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
CM6460R-225CMC 2.2MH 1.1A 2LN SMD |
522 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 2.2 mH @ 10 kHz | 1.1A | 150mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6460R-105CMC 1MH 2.2A 2LN SMD |
396 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 1 mH @ 10 kHz | 2.2A | 49mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6460-105CMC 1MH 2.2A 2LN SMD |
257 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 1 mH @ 10 kHz | 2.2A | 49mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
LDFL039172VJUV0ECMC 1.7MH 39A 2LN TH |
710 | - |
|
Datasheet | Radial, Vertical (Open) | Power, Signal Line | 2 | - | 1.7 mH @ 100 kHz | 39A | 1.5mOhm | 700V | - | - | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
