Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS3-7-RCMC 258UH 2.45A 2LN SMD |
593 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 258 µH @ 100 kHz | 2.45A | 27mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
744834622CMC 2.2MH 6A 2LN TH |
109 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 6A | 22mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82722S0193A041CMC 160UH 19A 2LN SMD |
768 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 160 µH @ 100 kHz | 19A | 2.5mOhm | 80V | 48V | - | - | - | - | - | - |
|
B82725A2103N001CMC 1.8MH 10A 2LN TH |
409 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 10A | 14mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
7121-RCCMC 42.5MH 2A 2LN TH |
191 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | - | 2 | - | 42.5 mH @ 1 kHz | 2A | 200mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
B82725J2802N020CMC 3.9MH 8A 2LN TH |
828 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 8A | 31mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82725A2402N001CMC 6.8MH 4A 2LN TH |
426 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 4A | 80mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

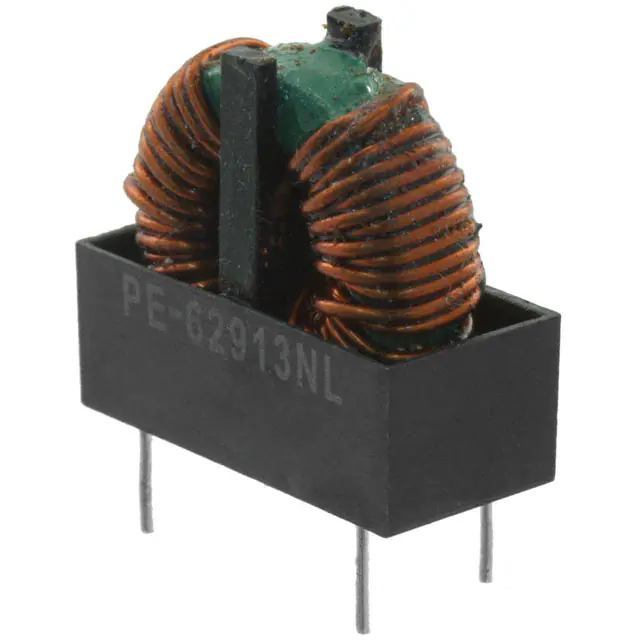

PE-62913NLCMC 1MH 6A 2LN TH |
470 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 6A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82725A2802N001CMC 2.7MH 8A 2LN TH |
222 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 8A | 22mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
PH9455.356NLCMC 35MH 4A 2LN 21K OHM TH |
1,154 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 21 kOhms @ 330 kHz | 35 mH @ 330 kHz | 4A | 80mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF-02-1300CMC 13MH 2A 2LN TH |
2,261 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 13 mH @ 10 kHz | 2A | 115mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF-03-650CMC 6.5MH 3A 2LN TH |
1,986 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 10 kHz | 3A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
CMT908-V1CMC 2MH 7.5A 2LN TH ESD |
4,677 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 7.5A | 20mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CC2824E105R-10CMC 1MH 700MA 2LN 4.25KOHM SMD |
1,423 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | 4.25 kOhms @ 7 MHz | 1 mH @ 100 kHz | 700mA | 260mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF-03-650HCMC 6.5MH 3A 2LN TH |
1,020 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 10 kHz | 3A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
CMT-8112CMC 8MH 5.6A 2LN TH ESD |
4,286 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 5.6A | 55mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
744834101CMC 1MH 10A 2LN TH |
5,774 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 10A | 12.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448680100CMC 450UH 10A 2LN TH |
425 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 450 µH @ 10 kHz | 10A | 9.6mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
7448680140CMC 230UH 16A 2LN TH |
323 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 230 µH @ 10 kHz | 16A | 3.6mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
RN152-6-02-3M9CMC 3.9MH 6A 2LN TH |
140 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 6A | 42mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
