Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82721A2122N020CMC 6.8MH 1.2A 2LN TH |
12,554 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.2A | 280mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

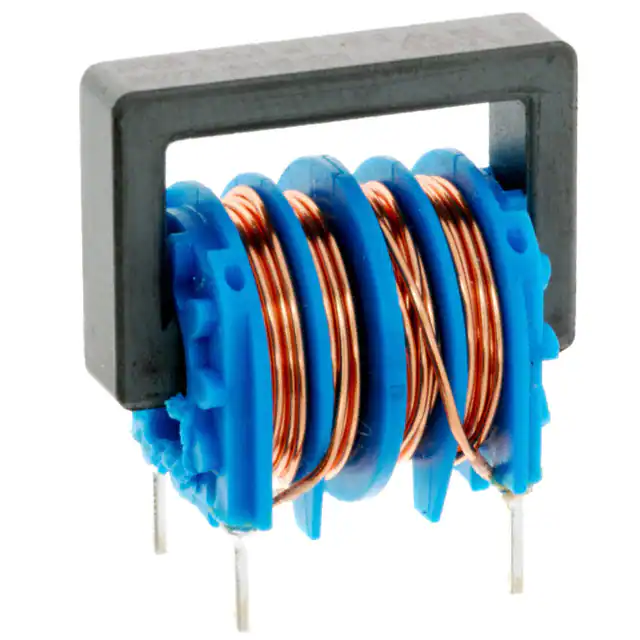

B82731M2132A030CMC 6.8MH 1.3A 2LN TH |
3,127 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.3A | 280mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

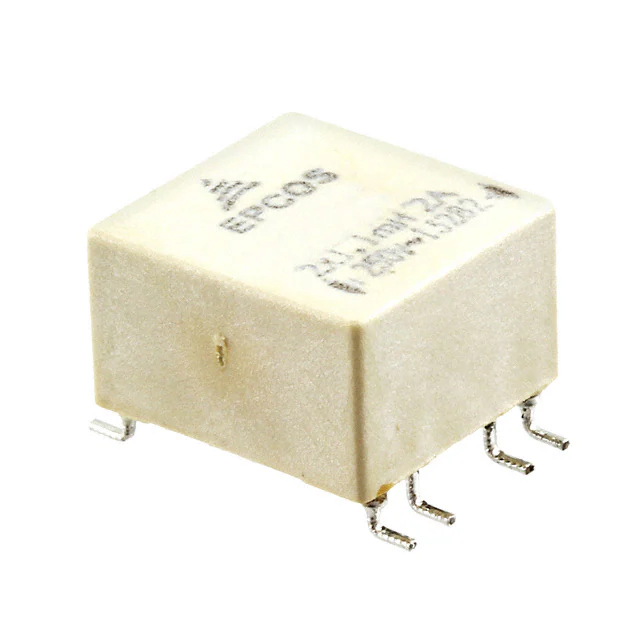

B82720S2202N040CMC 1.1MH 2A 2LN SMD |
907 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Power Line | 2 | - | 1.1 mH @ 10 kHz | 2A | 65mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

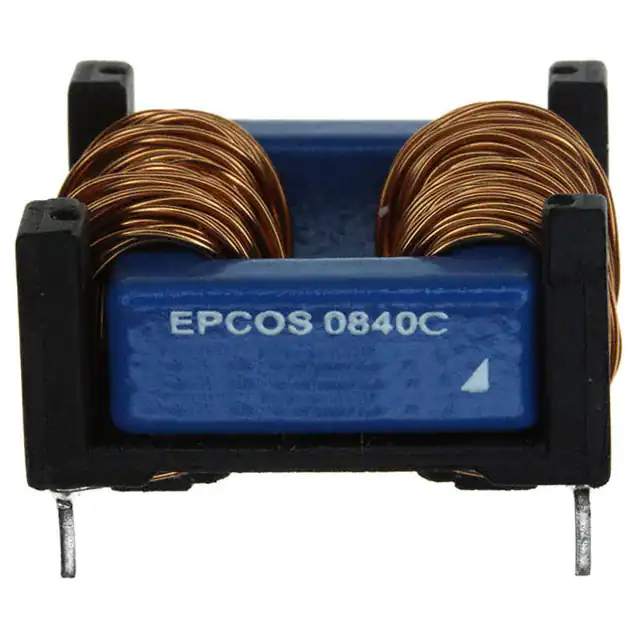

B82732F2451B001CMC 100MH 450MA 2LN TH |
1,248 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 450mA | 2.93Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82721A2202N001CMC 1MH 2A 2LN TH |
3,197 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 80mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82720H0015A035CMC 68MH 200MA 2LN TH |
800 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | - | 68 mH @ 10 kHz | 200mA | 3.3Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

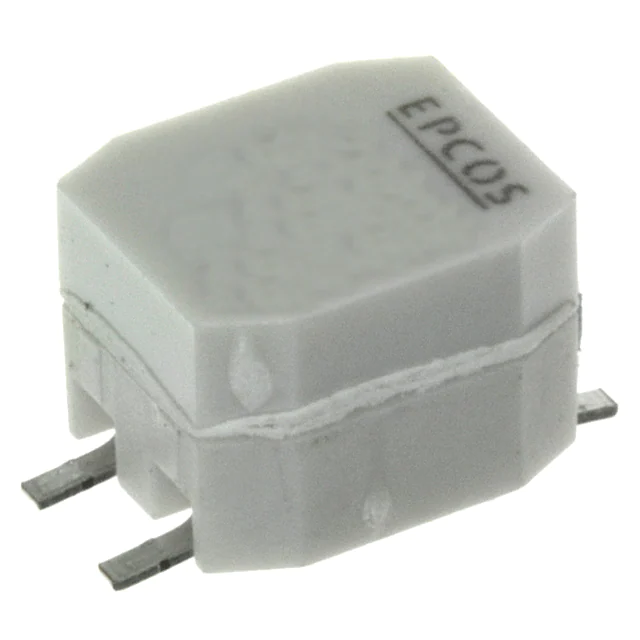

B82790S0513N201CMC 51UH 500MA 2LN SMD AEC-Q200 |
6,017 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 51 µH @ 100 kHz | 500mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82790C0113N201CMC 11UH 500MA 2LN SMD AEC-Q200 |
3,737 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 11 µH @ 100 kHz | 500mA | 80mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

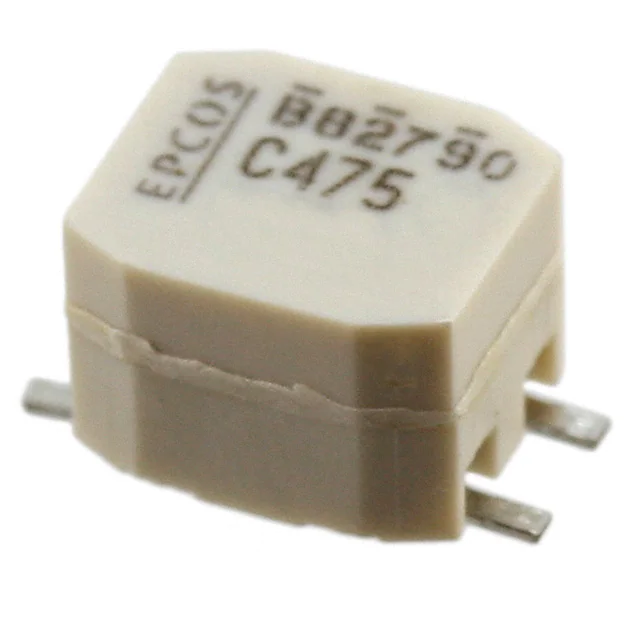

B82790C0475N265CMC 4.7MH 200MA 2LN SMD AEC-Q200 |
1,125 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 4.7 mH @ 10 kHz | 200mA | 510mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

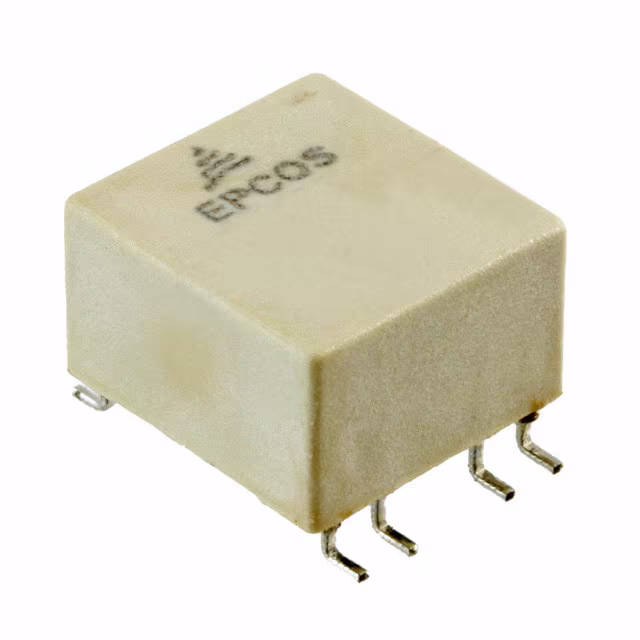

B82720S2301N040CMC 12MH 300MA 2LN SMD |
1,940 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Power Line | 2 | - | 12 mH @ 10 kHz | 300mA | 1.1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
