Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

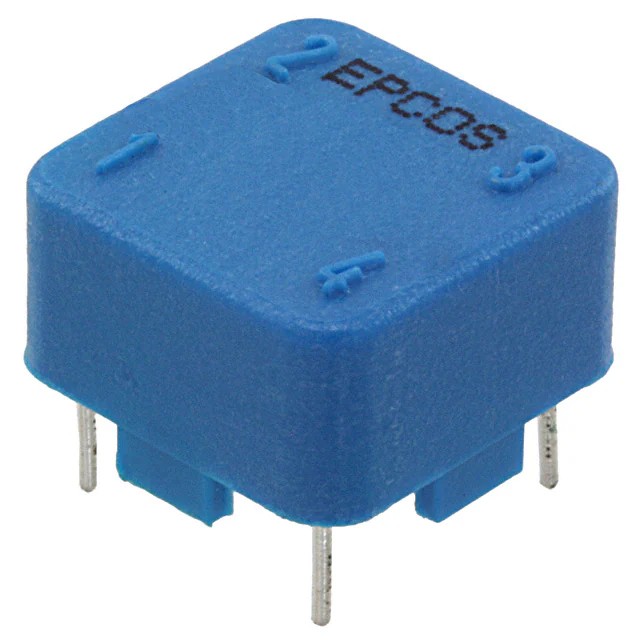

B82720A2601N040CMC 4.4MH 600MA 2LN TH |
176 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 10 kHz | 600mA | 400mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82790C0513N201CMC 51UH 500MA 2LN SMD AEC-Q200 |
8,445 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 51 µH @ 100 kHz | 500mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82790C0105N240CMC 1MH 500MA 2LN SMD AEC-Q200 |
3,522 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 1 mH @ 100 kHz | 500mA | 170mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

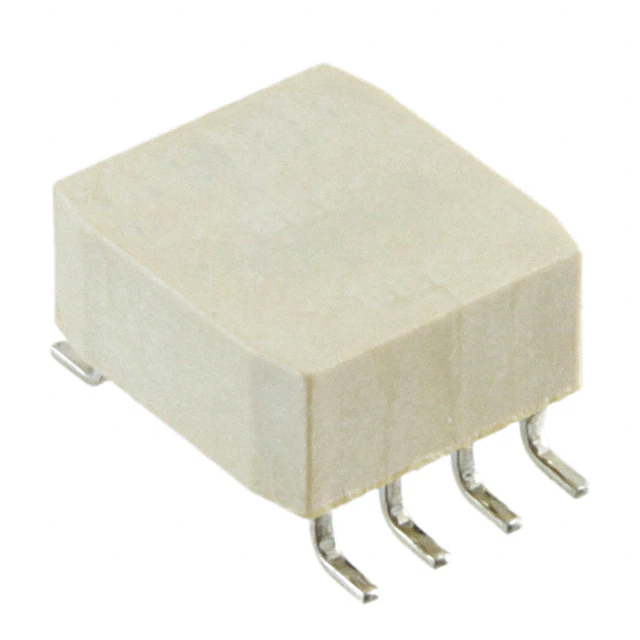

B82792C2105N365CMC 1MH 500MA 4LN SMD |
2,013 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 4 | - | 1 mH @ 100 kHz | 500mA | 170mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82792C0685N365CMC 6.8MH 600MA 2LN SMD |
1,252 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 2 | - | 6.8 mH @ 10 kHz | 600mA | 500mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

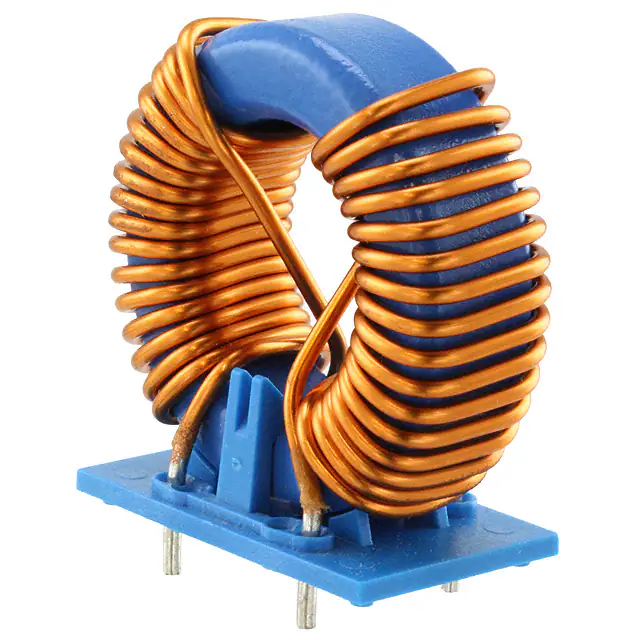

B82726S2163N030CMC 2.2MH 16A 2LN TH |
10,720 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 16A | 7.1mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82726E6243A041CMC 1MH 24A 2LN TH |
633 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 24A | 2.3mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|

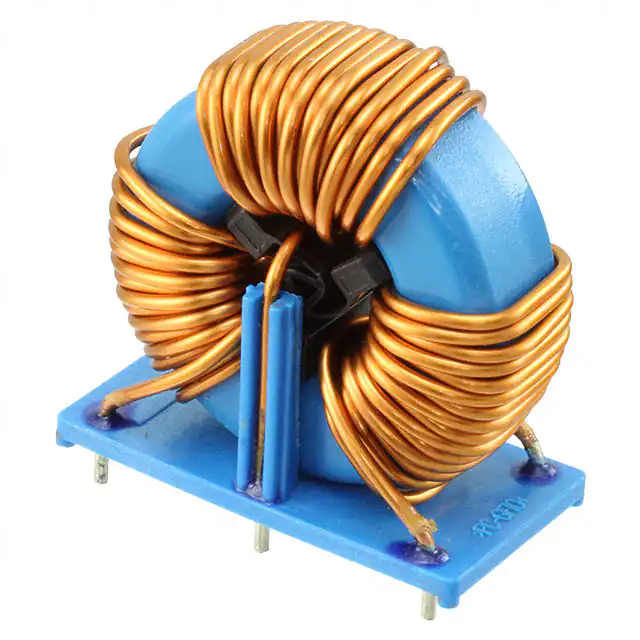

B82746S4103A021CMC 2MH 10A 3LN TH |
392 | - |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 2 mH @ 10 kHz | 10A | 9.6mOhm (Typ) | - | 500/300V | -40°C ~ 125°C | - | UR | - | - | - |
|

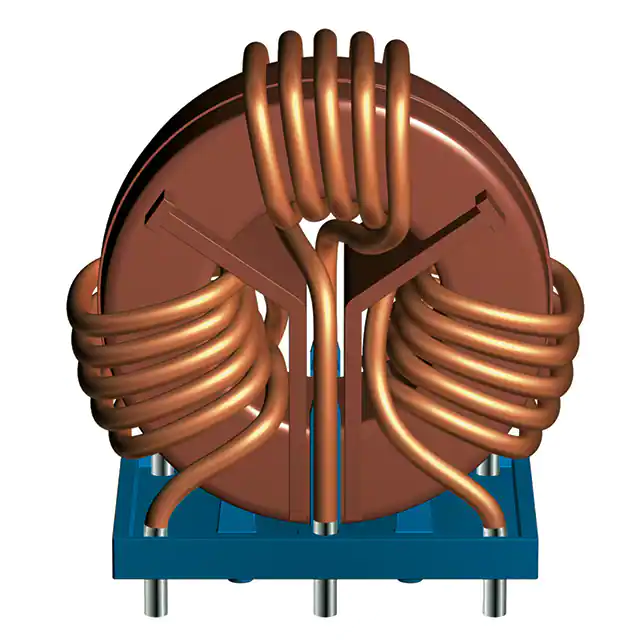

B82747E6163A040CMC 2.2MH 16A 3LN TH |
221 | - |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 2.2 mH @ 10 kHz | 16A | 6mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | UR | - | - | - |
|
B82789S0223N002CMC 22UH 250MA 2LN SMD AEC-Q200 |
43,950 | - |
|
Datasheet | Horizontal, 4 L-Lead | Signal Line | 2 | - | 22 µH @ 100 kHz | 250mA | 580mOhm | 80V | 42V | -55°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
