Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82721K2222U030CMC 10UH 2.2A 2LN TH |
4,844 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 µH @ 100 kHz | 2.2A | 70mOhm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82720A2102N040CMC 3MH 1A 2LN TH |
3,536 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 1A | 220mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82792C2475N365CMC 4.7MH 300MA 4LN SMD |
3,907 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 4 | - | 4.7 mH @ 10 kHz | 300mA | 700mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82726E6213A040CMC 1.5MH 21A 2LN TH |
4,966 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 21A | 2.8mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
B82726S3223A340CMC 1.7MH 25A 2LN TH |
2,297 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 10 kHz | 25A | 2.75mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR | - | - | - |
|

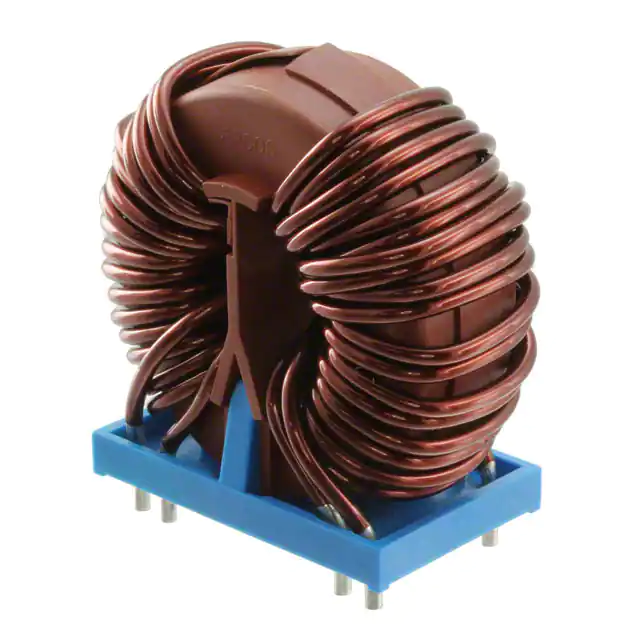

B82727E6503A040CMC 570UH 50A 2LN TH |
4,411 | - |
|
Datasheet | Vertical, 8 PC Pin | Power Line | 2 | - | 570 µH @ 100 kHz | 50A | 1mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
B82730U3162A020CMC 1MH 1.6A 2LN TH |
3,596 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 1.6A | 160mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
B82724A2602N041CMC 3.3MH 6A 2LN TH |
2,774 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 6A | 25mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82733V2232B001CMC 10MH 2.3A 2LN TH |
2,549 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2.3A | 188mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

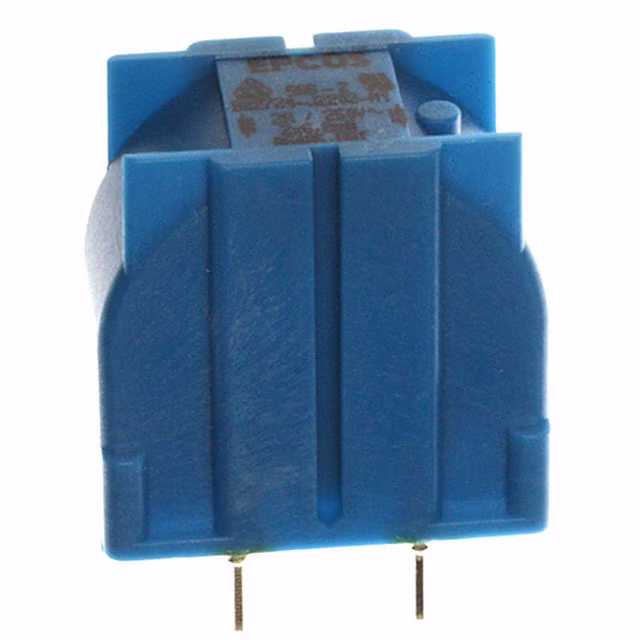

B82724J2202N001CMC 6.8MH 2A 2LN TH |
2,225 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 2A | 170mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
