Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82799C104N1CMC 100UH 300MA 2LN SMD AEC-Q200 |
2,282 | - |
|
Datasheet | Horizontal, 4 L-Lead | Signal Line | 2 | - | 100 µH @ 100 kHz | 300mA | 150mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
B82799C113N1CMC 11UH 300MA 2LN SMD AEC-Q200 |
4,468 | - |
|
Datasheet | Horizontal, 4 L-Lead | Signal Line | 2 | - | 11 µH @ 100 kHz | 300mA | 120mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
B82799S333N1CMC 33UH 200MA 2LN SMD AEC-Q200 |
2,495 | - |
|
Datasheet | Horizontal, 4 L-Lead | Signal Line | 2 | - | 33 µH @ 100 kHz | 200mA | 200mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
B82615B2402M001CMC 1.5MH 4A 2LN TH PFC |
3,648 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 4A | 220mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | - | PFC | - | - |
|
B82625B2102M001CMC 5MH 1A 2LN TH PFC |
3,756 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 1A | 1.45Ohm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, VDE | PFC | - | - |
|
B82625B2202M001CMC 1.2MH 2A 2LN TH PFC |
3,724 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 2A | 420mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, VDE | PFC | - | - |
|
|
B82625B2302M001CMC 700UH 3A 2LN TH PFC |
2,353 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 3A | 210mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, VDE | PFC | - | - |
|
|
B82625B2402M001CMC 400UH 4A 2LN TH PFC |
3,592 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 4A | 120mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, VDE | PFC | - | - |
|
|
B82625B2502M001CMC 250UH 5A 2LN TH PFC |
1,904 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 250 µH @ 100 kHz | 5A | 72mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, VDE | PFC | - | - |
|

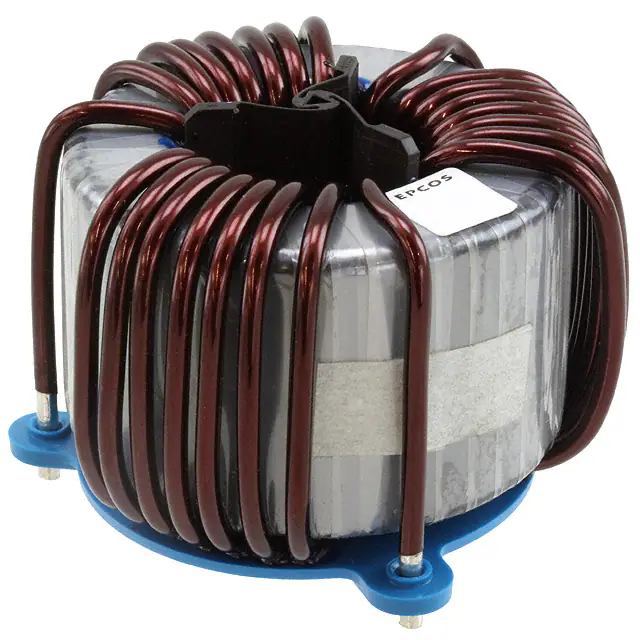

B82747S4253A040CMC 850UH 30A 3LN TH |
2,590 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 850 µH @ 100 kHz | 30A | 1.9mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | UR | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
