Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82746S4103A020CMC 10A 3LN CHAS MNT |
2,408 | - |
|
Datasheet | - | Power Line | 3 | - | - | 10A | - | - | 440/250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82796C0225N265CMC 2.2MH 500MA 2LN TH |
2,725 | - |
|
Datasheet | Horizontal, 4 PC Pin | Signal Line | 2 | - | 2.2 mH @ 10 kHz | 500mA | 420mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82502WC10CMC 680UH 2A 2LN TH |
1,425 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 680 µH @ 100 kHz | 2A | 550mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82502WC2CMC 82MH 200MA 2LN TH |
1,124 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 82 mH @ 10 kHz | 200mA | 45Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82502WC5CMC 15MH 500MA 2LN TH |
4,343 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 8.5Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82502WC8CMC 3.3MH 1A 2LN TH |
1,345 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1A | 1.9Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82503UE1CMC 25UH 15A 2LN TH |
4,695 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 25 µH @ 100 kHz | 15A | 15mOhm (Typ) | 450V | 400V | - | - | - | - | - | - |
|
|
B82503UE3CMC 100UH 10A 2LN TH |
2,440 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | 10A | 30mOhm (Typ) | 450V | 400V | - | - | - | - | - | - |
|
|
B82504WA1CMC 27MH 1A 2LN CHAS MNT |
1,116 | - |
|
Datasheet | - | Power Line | 2 | - | 27 mH @ 10 kHz | 1A | 5.25Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|

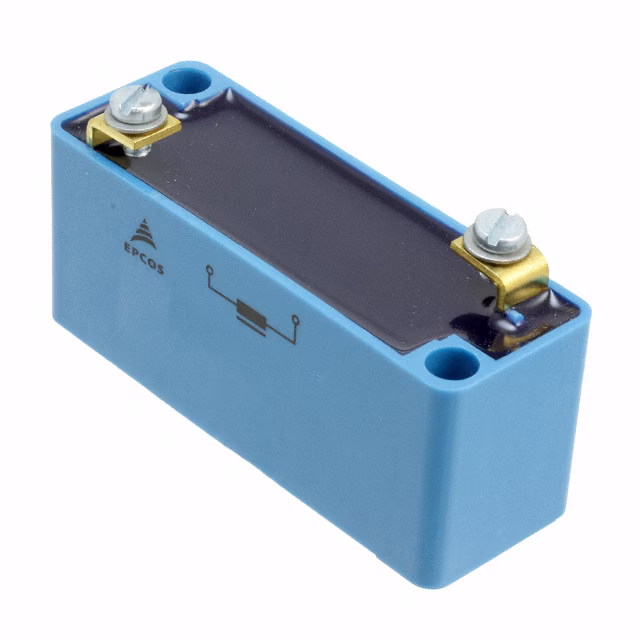

B82504WA16CMC 120UH 16A 2LN CHAS MNT |
1,262 | - |
|
Datasheet | - | Power Line | 2 | - | 120 µH @ 100 kHz | 16A | 19mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
