Encoders
Browse available Encoders components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS5040-ASST SSOP16 LF T&RDPROTARY ENCODER MAGNETIC 512PPR |
16,545 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | 512 | 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
.jpg "AS5311-ATST-500")
|
AS5311-ATST-500ROTARY ENCODER MAGNETIC |
1,593 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | - | 3.3V, 5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
AEAT-8800-Q24ROTARY ENCODER MAGNETIC 4096PPR |
2,565 | - |
|
Datasheet | - | Tube | Active | Not Verified | Magnetic | SSI | 4096 | 5.6V | External Magnet, Not Included | No | No | Surface Mount | Vertical | Surface Mount (SMD,SMT) | - | - | - |
|
291V1022F624ABROTARY ENCODER OPTICAL 6PPR |
1,891 | - |
|
Datasheet | 291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 6 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
AS5045-ASSTROTARY ENCODER MAGNETIC |
6,818 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | - | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AS5145B-HSST SSOP16 LF T&RDPROTARY ENCODER MAGNETIC 1024PPR |
1,946 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | Quadrature (Incremental) | 4096 | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|
ENCOS16D2S65CROTARY ENCODER OPTICAL 16PPR |
429 | - |
|
Datasheet | ENC | Tray | Active | - | Optical | Quadrature, 2-Bit | 16 | 5V | 5.92mm Dia Knurled End | Yes | Yes | Panel Mount | User Selectable | Connector | 300K | - | - |
|

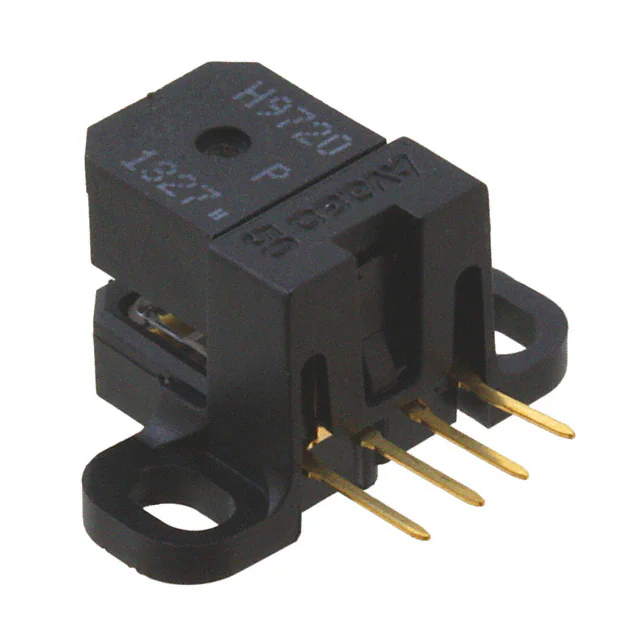

HEDS-9720#P50ROTARY ENCODR OPTICAL 150 LPI |
1,136 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 150 LPI | 5V | Codestrip Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

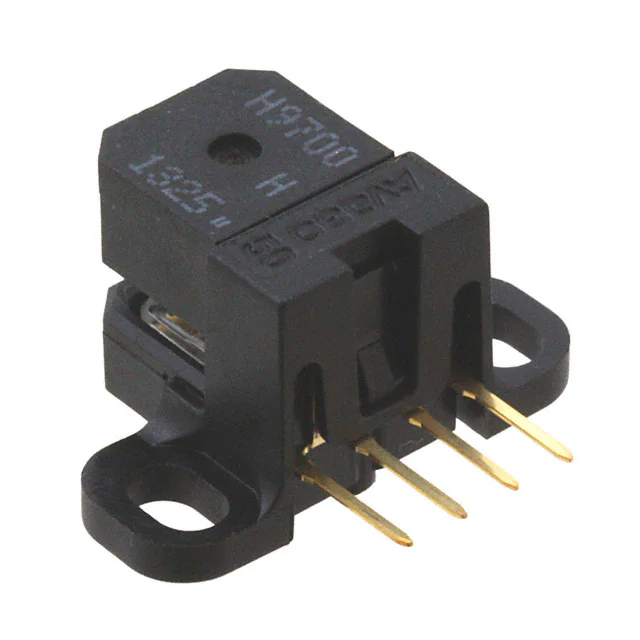

HEDS-9700#H50ROTARY ENCODER OPTICAL 400PPR |
493 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 400 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
AEAT-6600-T16ROTARY ENCODER MAGNETIC |
4,113 | - |
|
Datasheet | - | Bulk | Active | Not Verified | Magnetic | Quadrature (Incremental) | - | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|

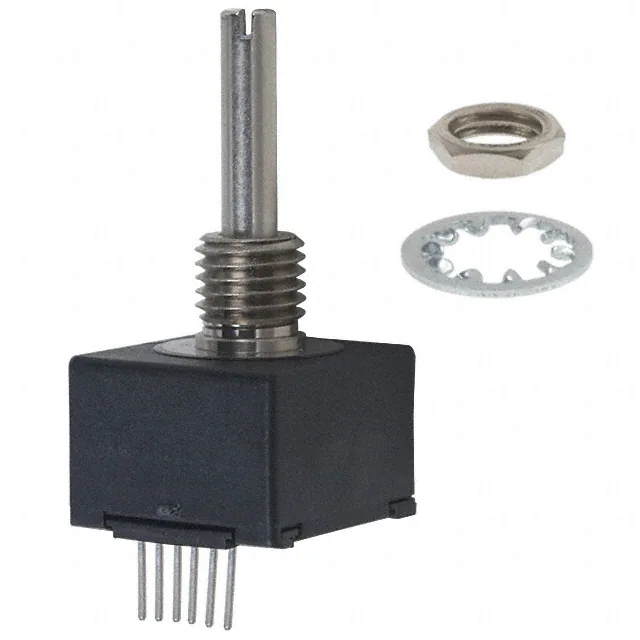

EM14C0D-E24-L064SROTARY ENCODER OPTICAL 64PPR |
209 | - |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/8" Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
25LB22-GROTARY ENCODER MECHANICAL 16PPR |
111 | - |
|
Datasheet | 25L | Bulk | Active | Not Verified | Mechanical | Gray Code (Absolute) | 16 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
C14D32P-A3ROTARY ENCODER OPTICAL 32PPR |
630 | - |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|

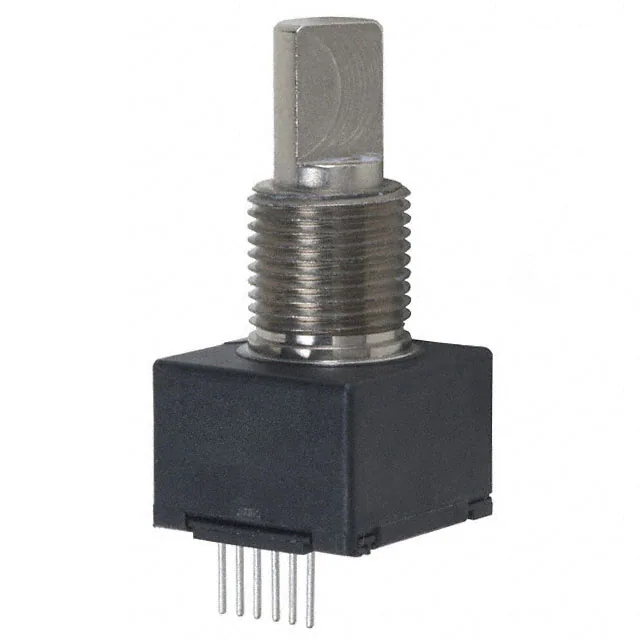

EM14A0D-C24-L064SROTARY ENCODER OPTICAL 64PPR |
295 | - |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D16P-C3ROTARY ENCODER OPTICAL 16PPR |
278 | - |
|
Datasheet | C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
26ASD22-01-1-AJSROTARY ENCODER MECHANICAL 16PPR |
2,375 | - |
|
Datasheet | 26 | Bulk | Active | Not Verified | Mechanical | BCD (Absolute) | 16 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
26ASD45-01-1-AJSROTARY ENCODER MECHANICAL 8PPR |
110 | - |
|
Datasheet | 26 | Bulk | Active | Not Verified | Mechanical | BCD (Adjusted) | 8 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
EM14A1D-C24-L032SROTARY ENCODER OPTICAL 32PPR |
317 | - |
|
Datasheet | EM14 | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
AMT10E2-VKIT, AMT10E2, INCREMENTAL ENCODE |
183 | - |
|
Datasheet | AMT10 | Box | Active | Not Verified | Incremental | Quadrature with Index (Incremental) | Programmable | 3.1V ~ 5.5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
AMT10E3-VKIT, AMT10E3, INCREMENTAL ENCODE |
154 | - |
|
Datasheet | AMT10 | Box | Active | Not Verified | Incremental | Quadrature with Index (Incremental) | Programmable | 3.1V ~ 5.5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
Encoders FAQ
What Encoders components can I source from EGOO?
You can browse available Encoders product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Encoders parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
