Encoders
Browse available Encoders components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
26GSD45-01-1-AJSENCODER MECH GRY COD VERT PC PIN |
551 |
1+：$82.26000 5+：$70.59800 10+：$66.07500 25+：$60.50960 50+：$56.58820 100+：$52.89770 |
|
Datasheet | 26 | Bulk | Active | Not Verified | Mechanical | Gray Code (Absolute) | 8 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
AMT132S-VENC INCREMNTAL VOLTAGE VERT CONN |
210 |
1+：$55.47000 5+：$46.66400 10+：$43.31600 25+：$39.25640 50+：$36.44180 100+：$34.91800 |
|
Datasheet | AMT13 | Box | Active | - | Incremental | Voltage | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - | - | - |
|

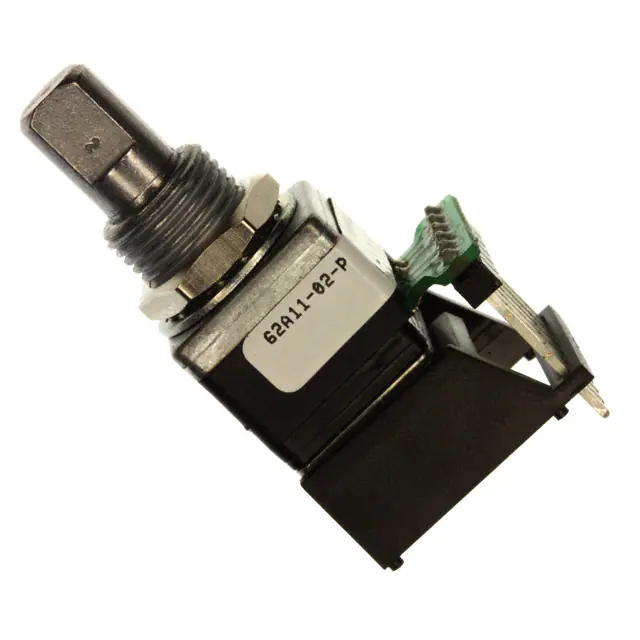

62A11-02-PENC OPTICAL QUAD USR SELC PC PIN |
679 |
1+：$68.72000 5+：$58.50600 10+：$54.46100 25+：$49.40760 50+：$45.79180 100+：$42.67090 |
|
Datasheet | 62A | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
|

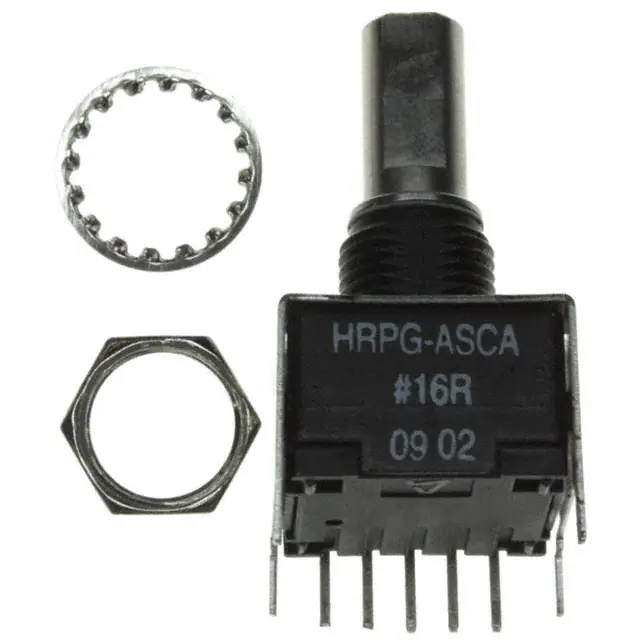

HRPG-ASCA#16RENCODER OPTICAL QUAD VERT PC PIN |
0 |
1+：$66.39000 5+：$56.98400 10+：$53.33700 25+：$48.84960 50+：$45.68840 100+：$42.71330 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 120 | 5V | 1/4" Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
AMT203-VROTARY ENCODER ABS 4096PPR/12BIT |
413 | - |
|
Datasheet | AMT20 | Box | Active | Not Verified | Absolute | SPI | 4096 | 5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT203S-VKIT, AMT 203S, 12-BIT SPI ABSOLU |
212 | - |
|
Datasheet | AMT20 | Box | Active | Not Verified | Absolute | SPI | 4096 | 4.5V ~ 5.5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|

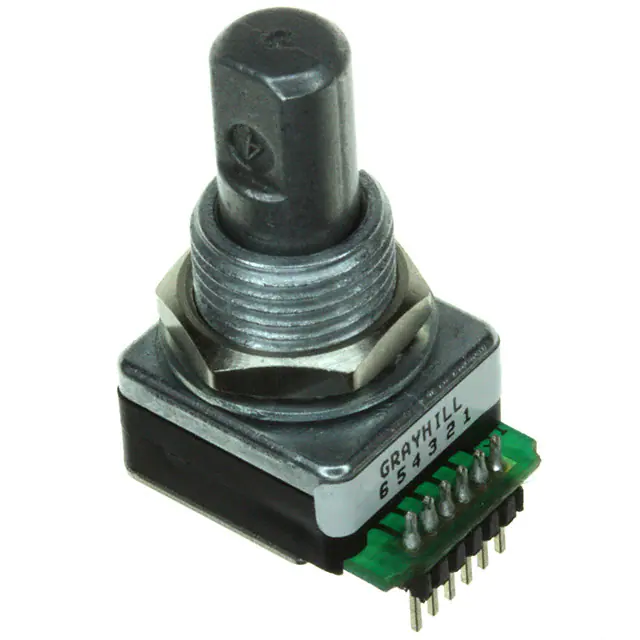

62S11-M5-PENCODER OPTICAL QUAD VERT PC PIN |
262 |
1+：$77.69000 5+：$66.10600 10+：$61.51900 25+：$55.78840 50+：$51.68700 100+：$47.77300 |
|
Datasheet | 62S | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|

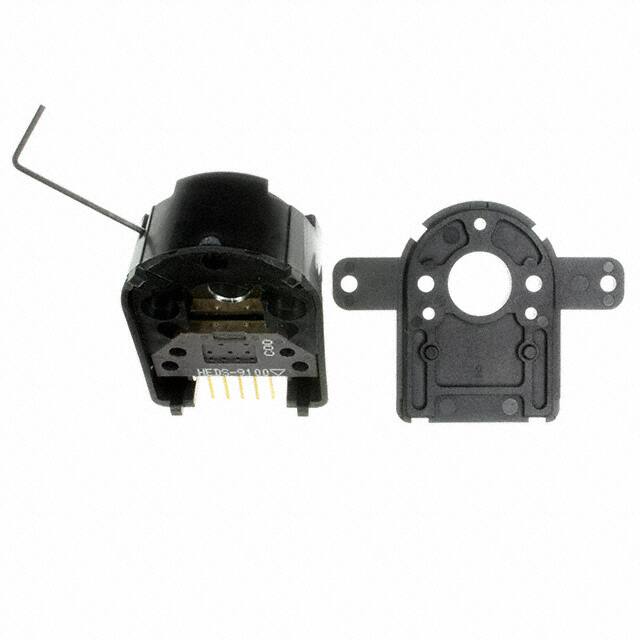

HEDS-5600#C06ENC OPTICAL QUAD VERT TERMNL PIN |
61 |
1+：$70.19000 5+：$60.24400 10+：$56.38600 25+：$52.87880 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#A14ENC OPTICAL QUAD VERT TERMNL PIN |
95 |
1+：$74.40000 5+：$63.85800 10+：$59.76900 25+：$54.73880 50+：$51.19440 100+：$47.85930 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

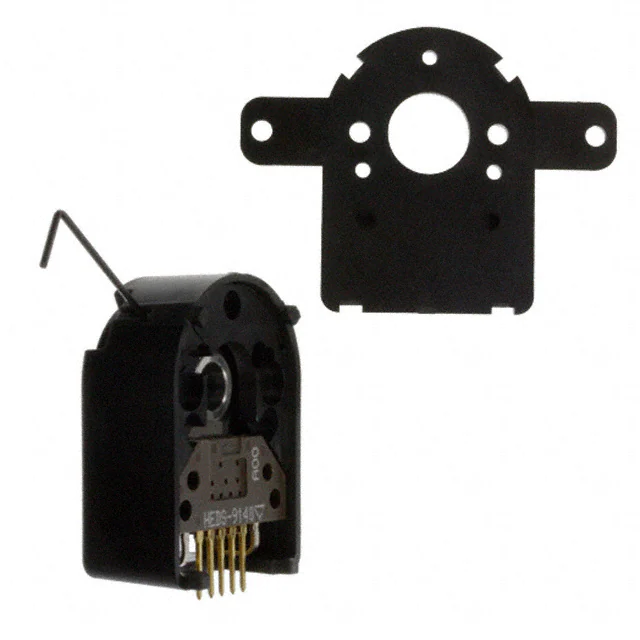

HEDS-5600#A13ROTARY ENCODER OPTICAL 500PPR |
102 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5540#A06ROTARY ENCODER OPTICAL 500PPR |
100 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

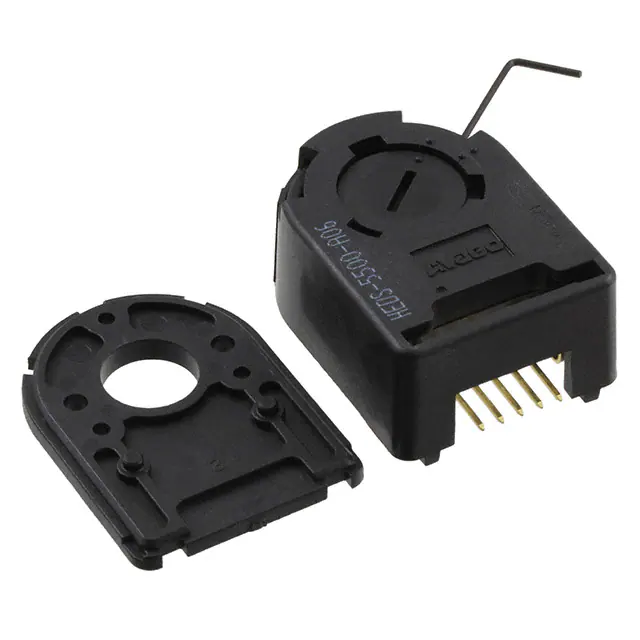

HEDS-5500#A06ROTARY ENCODER OPTICAL 500PPR |
1,353 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

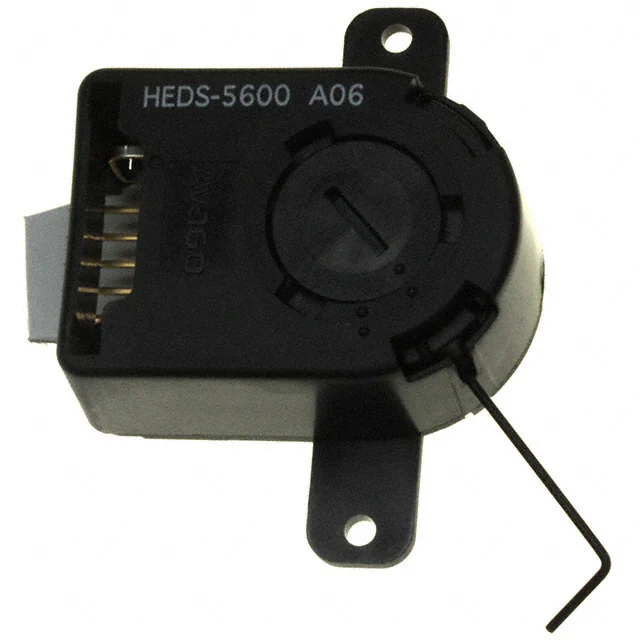

HEDS-5600#A06ROTARY ENCODER OPTICAL 500PPR |
3,182 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#E06ENC OPTICAL QUAD VERT TERMNL PIN |
0 |
1+：$70.19000 5+：$60.24400 10+：$56.38600 25+：$52.87880 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

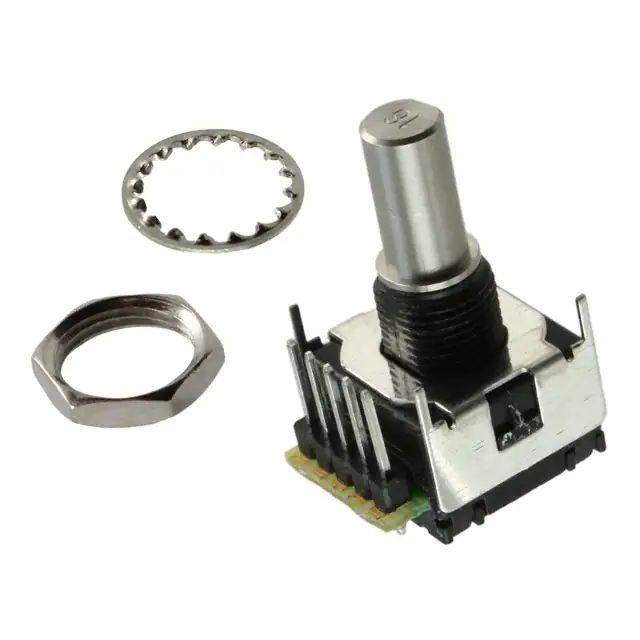

HRPG-AD32#16FROTARY ENCODER OPTICAL 32PPR |
504 | - |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

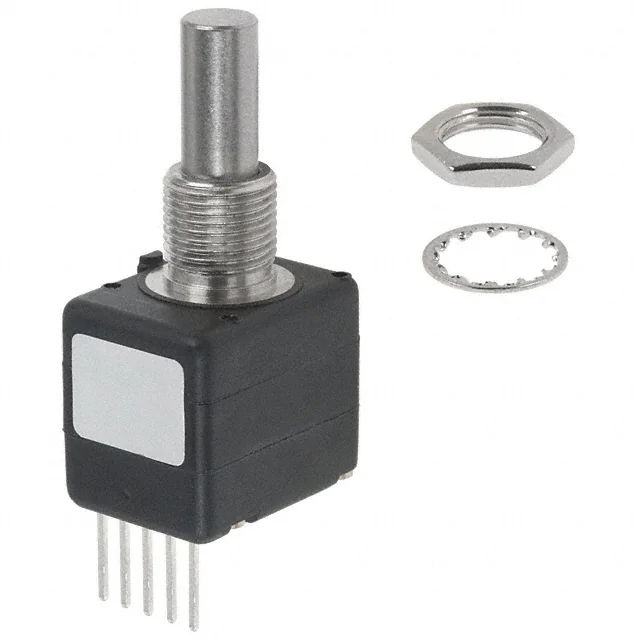

ENS1J-B28-L00256LROTARY ENCODER OPTICAL 256PPR |
207 | - |
|
Datasheet | EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200M | - | - |
|
62H2222-H9-PENCODER OPTICAL QUAD VERT PC PIN |
143 |
1+：$142.54000 5+：$120.94400 10+：$112.37900 25+：$101.66840 50+：$93.99640 100+：$86.67040 |
|
Datasheet | 62H | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | Concentric | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|

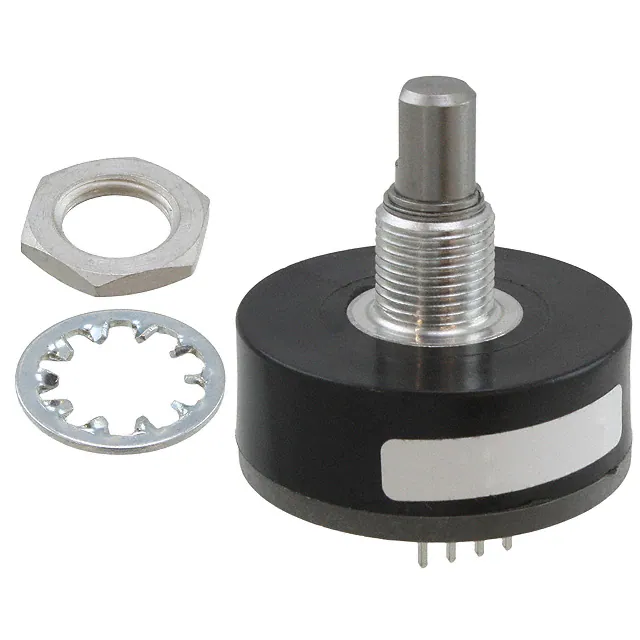

61K128ENC INCRE/MAG PSHPUL VERT PC PIN |
102 |
1+：$105.07000 5+：$90.15400 10+：$84.36900 25+：$77.24880 50+：$72.23080 100+：$67.50690 |
|
Datasheet | 61K | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|

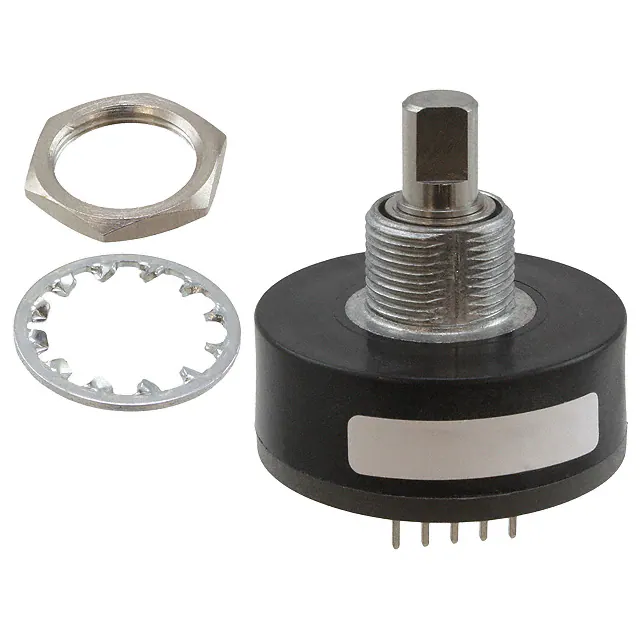

63R64ROTARY ENCODER OPTICAL 64PPR |
3,932 | - |
|
Datasheet | 63R | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 300M | - | - |
|
|
63R256ROTARY ENCODER OPTICAL 256PPR |
209 | - |
|
Datasheet | 63R | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | 1/4" Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 300M | - | - |
Encoders FAQ
What Encoders components can I source from EGOO?
You can browse available Encoders product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Encoders parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
