Encoders
Browse available Encoders components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-9700#D50ROTARY ENCODER OPTICAL 192PPR |
316 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 192 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDS-9730#A50ROTARY ENCODER OPTICAL 500PPR |
294 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 2.8V ~ 5.2V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
292V1X00BROTARY ENCODER OPTICAL 24PPR |
137 | - |
|
Datasheet | 292 | Tray | Active | Not Verified | Optical | Quadrature, 2-Bit | 24 | 2.97V ~ 3.63V | Hole for Shaft | No | Yes | PCB, Through Hole | User Selectable | PC Pin | 3M | - | - |
|
EM14A0D-C24-L032NROTARY ENCODER OPTICAL 32PPR |
155 | - |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14R0B-M25-L064NROTARY OPTICAL ENCODER - 14MM |
493 | - |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature, 2-Bit | 64 | 4.75V ~ 5.25V | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D32P-A2P15 MM, 32 PPR, 6.00 MM PLASTIC M |
173 | - |
|
Datasheet | C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 6mm Dia Round End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
EM14A1B-C24-L032SROTARY ENCODER OPTICAL 32PPR |
120 | - |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
25LB15-QROTARY ENCODER MECHANICAL 24PPR |
230 | - |
|
Datasheet | 25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
C14N32N-A3ROTARY ENCODER OPTICAL 32PPR |
204 | - |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | No | No | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
HEDS-9100#I00ROTARY ENCODER OPTICAL 512PPR |
197 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 512 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDS-9100#E00ROTARY ENCODER OPTICAL 200PPR |
140 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
AR25-AS0225BITS ABS UPTO 60MM SSI/485/ESL |
941 | - |
|
Datasheet | - | Tray | Active | Not Verified | Absolute | Digital, SSI | - | - | - | No | No | - | - | - | - | - | - |
|
|
EM14A0D-C24-L032SROTARY ENCODER OPTICAL 32PPR |
283 | - |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
AMT11A2S-VKIT, AMT11A2S, INCREMENTAL ENCOD |
194 | - |
|
Datasheet | AMT11A | Box | Active | Not Verified | Capacitive, Incremental | Voltage | - | 4.5V ~ 5.5V | - | No | No | Chassis Mount | Right Angle | Connector | - | - | - |
|
|
AR25-A12TALUM CW 512,THRU ID 6MM |
481 | - |
|
Datasheet | - | Tray | Active | Not Verified | - | - | 512 | - | - | No | No | - | - | - | - | - | - |
|
AEDR-8712-102ROTARY ENCODER OPTICAL PROG |
1,126 | - |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|

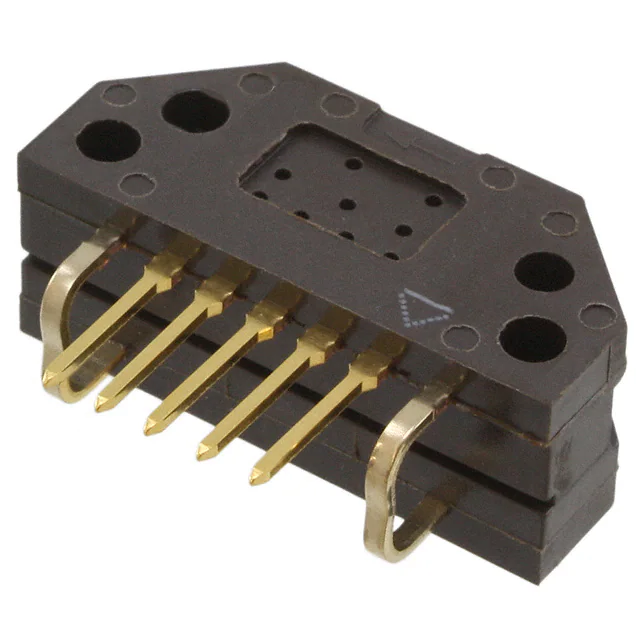

HEDS-9100#F00ROTARY ENCODER OPTICAL 256PPR |
218 | - |
|
Datasheet | HEDS | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

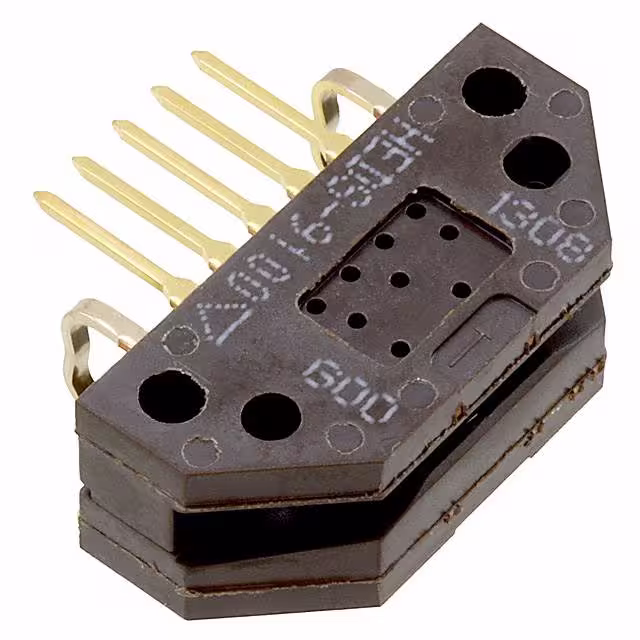

HEDS-9100#G00ROTARY ENCODER OPTICAL 360PPR |
199 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 360 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

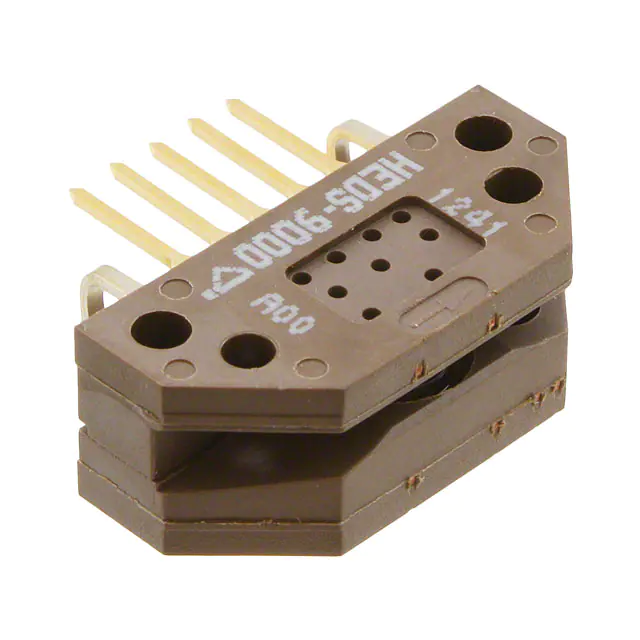

HEDS-9000#A00ROTARY ENCODER OPTICAL 500PPR |
198 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

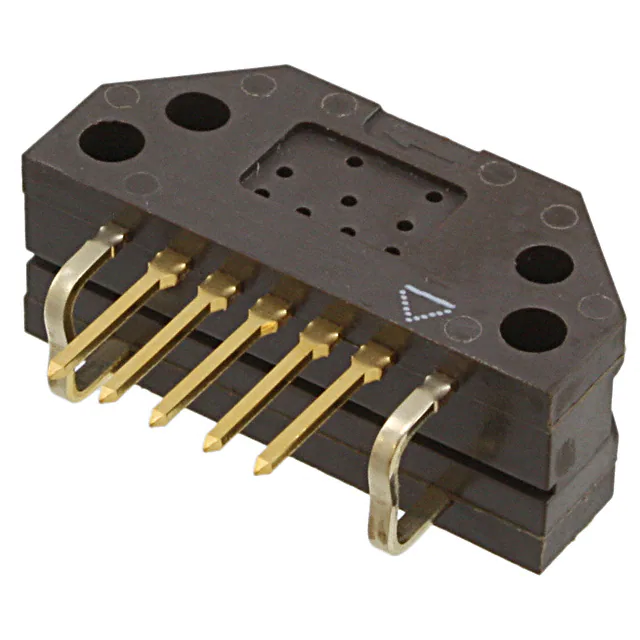

HEDS-9000#B00ROTARY ENCODER OPTICAL 1000PPR |
176 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
Encoders FAQ
What Encoders components can I source from EGOO?
You can browse available Encoders product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Encoders parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
