Encoders
Browse available Encoders components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-5500#A11ROTARY ENCODER OPTICAL 500PPR |
382 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

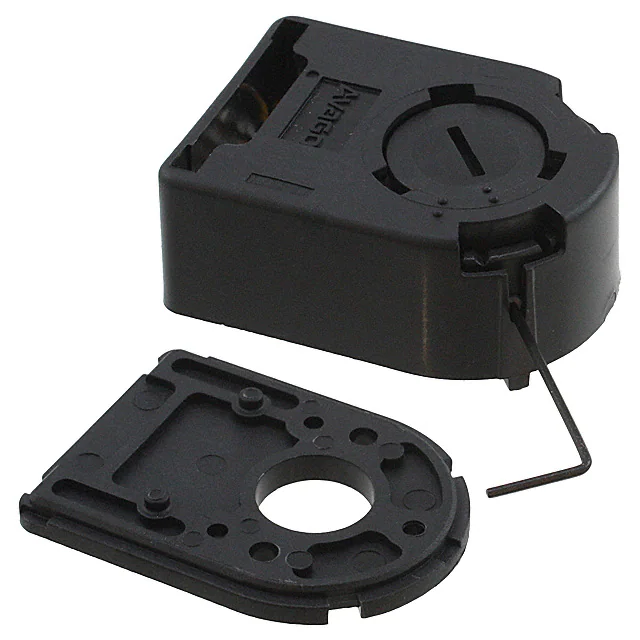

HEDS-5500#A05ROTARY ENCODER OPTICAL 500PPR |
156 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 3/16" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5605#A06ROTARY ENCODER OPTICAL 500PPR |
100 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5540#I14ROTARY ENCODER OPTICAL 512PPR |
4,105 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 512 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

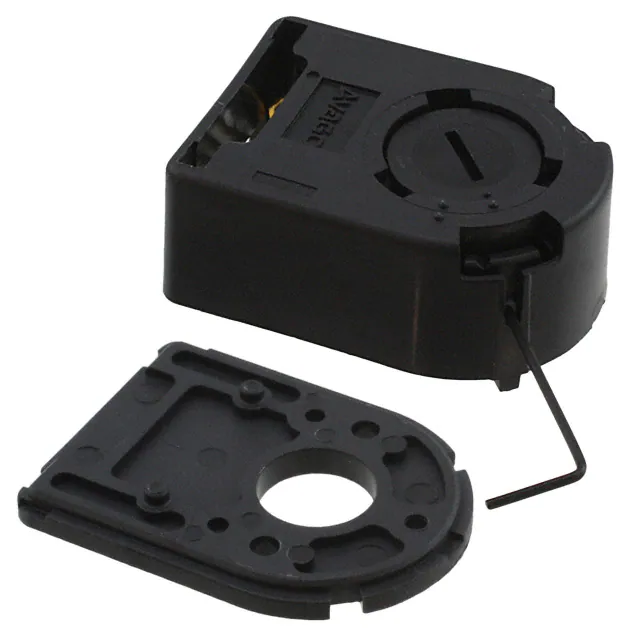

HEDS-5540#A02ROTARY ENCODER OPTICAL 500PPR |
2,099 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 3mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

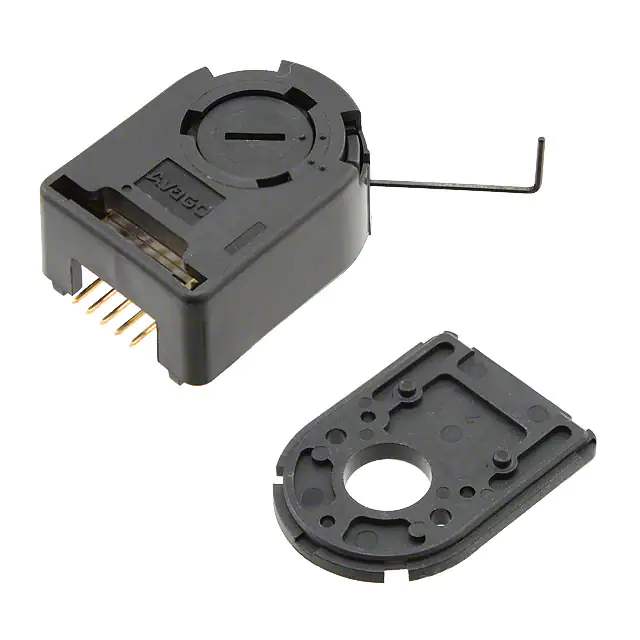

HEDS-5540#A12ROTARY ENCODER OPTICAL 500PPR |
4,104 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HRPG-AD32#13RROTARY ENCODER OPTICAL 32PPR |
130 | - |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|

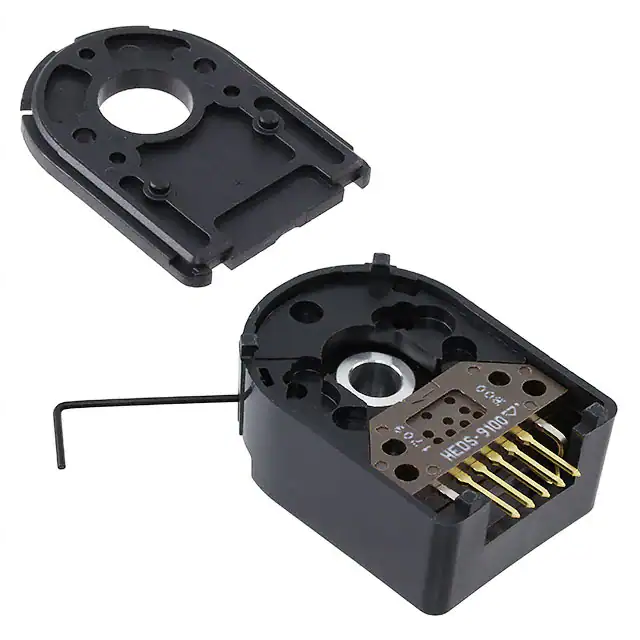

HEDM-5500#B12ROTARY ENCODER OPTICAL 1000PPR |
105 | - |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDM-5600#J06ROTARY ENCODER OPTICAL 1024PPR |
105 | - |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
63R128ROTARY ENCODER OPTICAL 128PPR |
294 | - |
|
Datasheet | 63R | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 300M | - | - |
|
61R128ROTARY ENCODER OPTICAL 128PPR |
2,831 | - |
|
Datasheet | 61R | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
EN16-V22AF15ROTARY ENCODER MECHANICAL 24PPR |
4,188 | - |
|
Datasheet | EN16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC12R-4117F-N0012ROTARY ENCODER MECHANICAL 12PPR |
1,969 | - |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC16-2220F-N0024ROTARY ENCODER MECHANICAL 24PPR |
1,153 | - |
|
Datasheet | PEC16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
PEC12R-4022F-S0024ROTARY ENCODER |
1,352 | - |
|
Datasheet | PEC12R | Tray | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PEC16-2015F-S0024ROTARY ENCODER MECHANICAL 24PPR |
468 | - |
|
Datasheet | PEC16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
EVQ-V5K00715BROTARY ENCODER MECHANICAL 15PPR |
271 | - |
|
Datasheet | EVQV | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVQ-V5D00309BROTARY ENCODER MECHANICAL 9PPR |
578 | - |
|
Datasheet | EVQV | Bulk | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVQ-V5903215BROTARY ENCODER MECHANICAL 15PPR |
414 | - |
|
Datasheet | EVQV | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
ACZ16NBR1E-20KQD1-12CROTARY ENCODER INCREMENT 12PPR |
135 | - |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
