Encoders
Compare the current Encoders Sensors, Transducers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

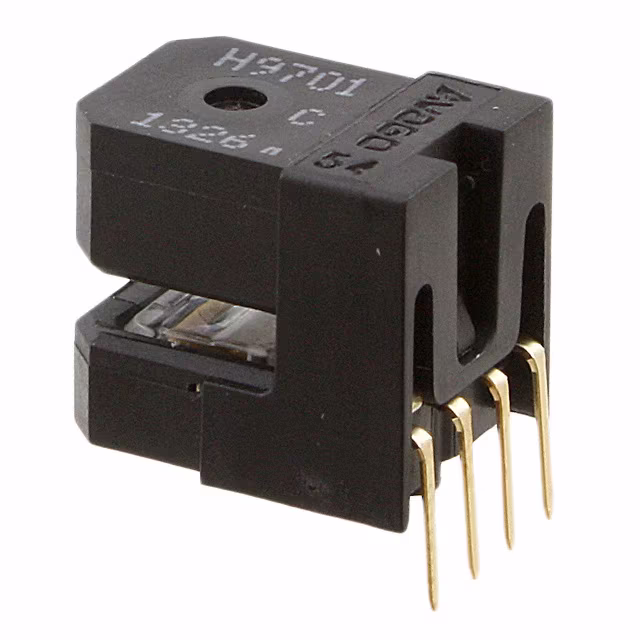

HEDS-9701#C54ROTARY ENCODER OPTICAL 100PPR |
408 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
HEDS-9731#A50ROTARY ENCODER OPTICAL 500PPR |
238 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 2.8V ~ 5.2V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
AEAT-9988M-104MAG ABS 23BITS SSI SPI RS485 TR |
300 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HEDS-9101#A00ROTARY ENCODER OPTICAL 500PPR |
168 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
|
AEDR-9940-102198.4 LPI INCREMENTAL ENCODER 10 |
163 | - |
|
Datasheet | AEDR | Tray | Active | - | Incremental | Quadrature (Incremental) | - | 3.3V ~ 5V | External Magnet, Not Included | No | No | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|

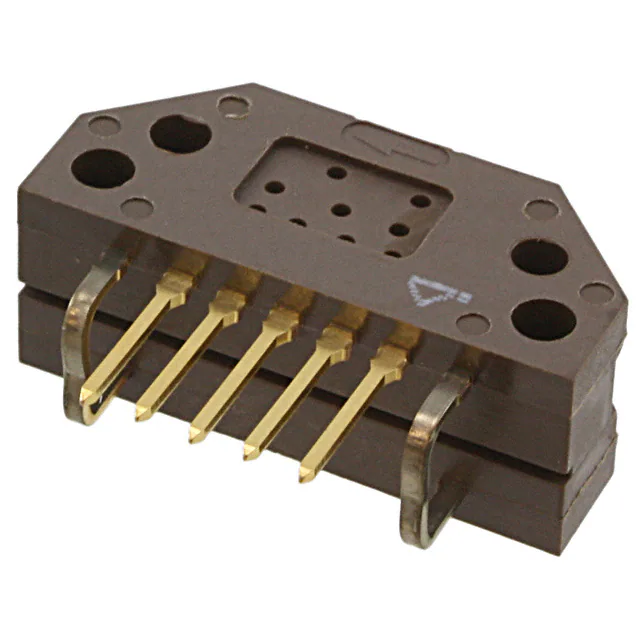

HEDS-9140#F00ROTARY ENCODER OPTICAL 256PPR |
102 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 256 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
AEAT-9010-S06MAG ABS 10BITS SSI KIT 6MM SHAFT |
167 | - |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HEDS-9200#300ROTARY ENCODR OPTICAL 300 LPI |
201 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 300 LPI | 5V | Codestrip Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-9140#I00ROTARY ENCODER OPTICAL 512PPR |
159 | - |
|
Datasheet | HEDS | Tube | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 512 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
AEAT-9014-S06MAG ABS 14BITS SSI KIT 6MM SHAFT |
248 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Encoders FAQ
How can I narrow the current Encoders selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Encoders parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
