Encoders
Compare the current Encoders Sensors, Transducers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-5500#G05ROTARY ENCODER OPTICAL 360PPR |
2,797 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 360 | 5V | 3/16" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

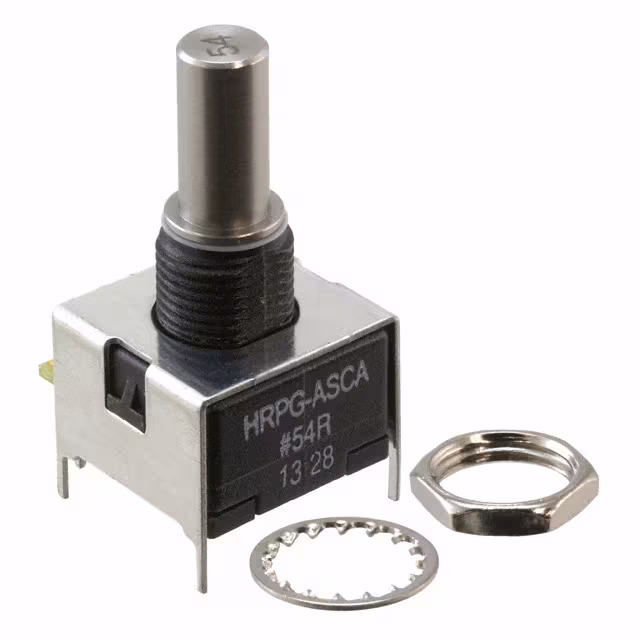

HRPG-ASCA#54RROTARY ENCODER OPTICAL 120PPR |
149 | - |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 120 | 5V | 6mm Dia Round End | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
HEDS-5540#A14ROTARY ENCODER OPTICAL 500PPR |
139 | - |
|
Datasheet | HEDS | Tray | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HRPG-AD32#16RROTARY ENCODER OPTICAL 32PPR |
142 | - |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
AS20-M42M-K1120MM KITS 42B MT 5V 4MM RS485 |
117 | - |
|
Datasheet | AS20 | Bulk | Active | - | Absolute, Magnetic | - | - | 4.5V ~ 5.5V | Hole for Shaft | No | Yes | Chassis Mount | Vertical | Connector | - | - | - |
|
|
AS20-M42M-B1120MM KITS 42B MT 5V 4MM BISS |
118 | - |
|
Datasheet | AS20 | Bulk | Active | - | Absolute, Magnetic | - | - | 4.5V ~ 5.5V | Hole for Shaft | No | Yes | Chassis Mount | Vertical | Connector | - | - | - |
|
|
AR25-AS1P-A18TPCBA CW 12MMTHRU H,SSI/485/ESL |
1,674 | - |
|
Datasheet | - | Tray | Active | Not Verified | Optical | Digital, SSI | - | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|

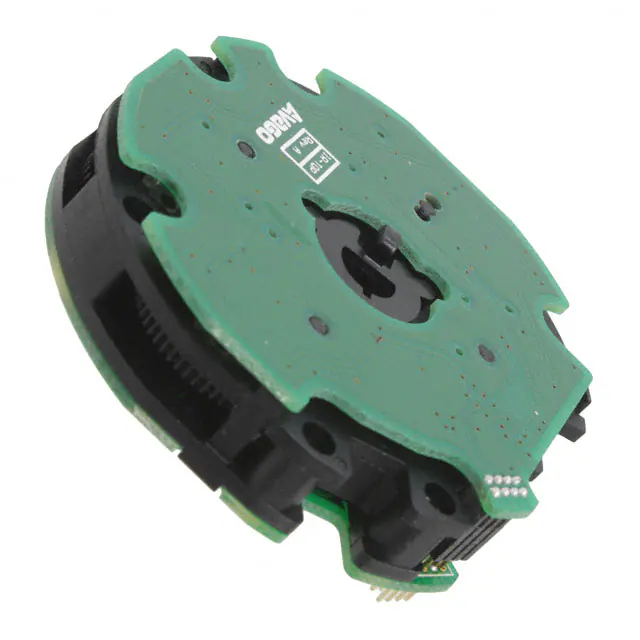

AEAT-84AD-LBSF0ROTARY ENCODER OPTICAL 16384PPR |
4,732 | - |
|
Datasheet | AEAT-84AD | Bulk | Active | Not Verified | Optical | Gray Code (Absolute) | 16384 | 5V | 10mm Geared Center | No | No | Chassis Mount | - | Pin Strip | - | - | - |
|

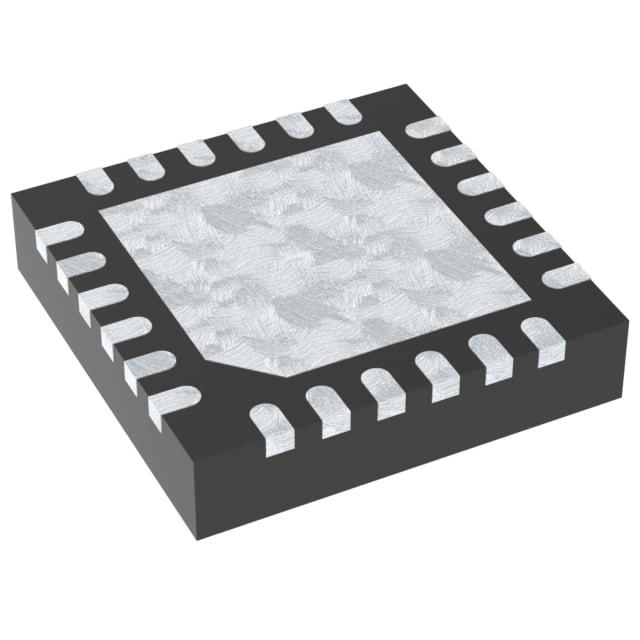

AEAT-8811-Q24ENHANCE PROG 16BITS IC MAGNETIC |
886 | - |
|
Datasheet | - | Tube | Last Time Buy | Not Verified | Magnetic | Commutation, PWM, SPI, Quadrature with index (Incremental) | Programmable | 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|

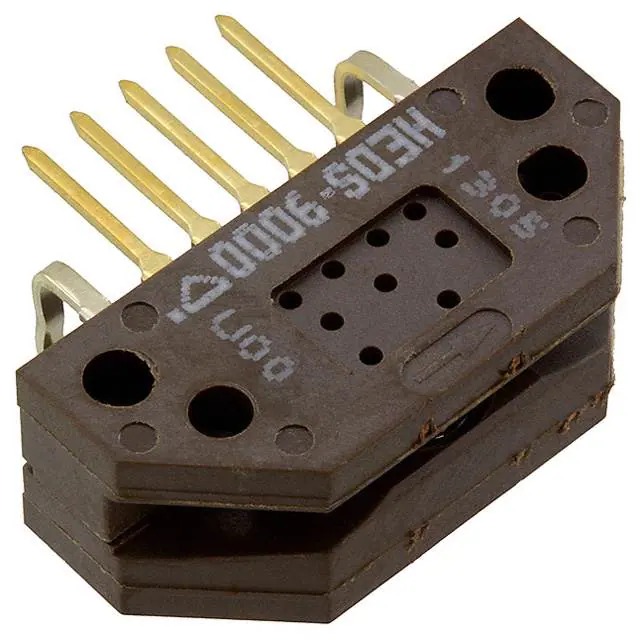

HEDS-9000#U00ROTARY ENCODER OPTICAL 2048PPR |
226 | - |
|
Datasheet | HEDS | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 2048 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
Encoders FAQ
How can I narrow the current Encoders selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Encoders parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
