DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAXREFDES112D#EVAL BOARD FOR MAX17596 |
4,997 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | 10 W | 12V | 800mA | 17V ~ 36V | Flyback | 500kHz | Board(s) | MAX17596 |
|
MAXREFDES113C#EVAL BOARD FOR MAX17596 |
1,962 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | 20 W | 12V | 1.6A | 17V ~ 36V | Flyback | 200kHz | Board(s) | MAX17596 |
|
MAXREFDES114B#EVAL BOARD FOR MAX17599 |
1,822 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | 10 W | 5V | 2A | 17V ~ 36V | Flyback | 350kHz | Board(s) | MAX17599 |
|
MAXREFDES116D#EVAL BOARD FOR MAX17599 |
2,222 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | 40 W | 5V | 8A | 17V ~ 36V | Flyback | 350kHz | Board(s) | MAX17599 |
|
MAXM15066EVKIT#EVAL BOARD FOR MAXM15066 |
4,039 | - |
|
Datasheet | Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 300mA | 8.5V ~ 60V | Buck | 550kHz | Board(s) | MAXM15066 |
|

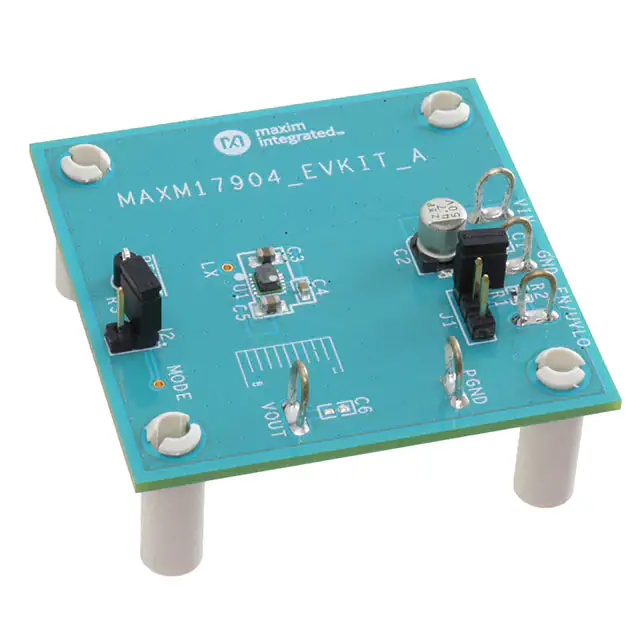

MAXM17904EVKIT#EVAL BOARD FOR MAXM17904 |
3,386 | - |
|
Datasheet | Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 5.5V ~ 24V | Buck | 550kHz | Board(s) | MAXM17904 |
|
MAX17573EVKITA#EVAL BOARD FOR MAX17573 |
2,740 | - |
|
Datasheet | Himalaya | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3.5A, 3.5A | 4.5V ~ 60V | Buck | 500kHz | Board(s) | MAX17573 |
|

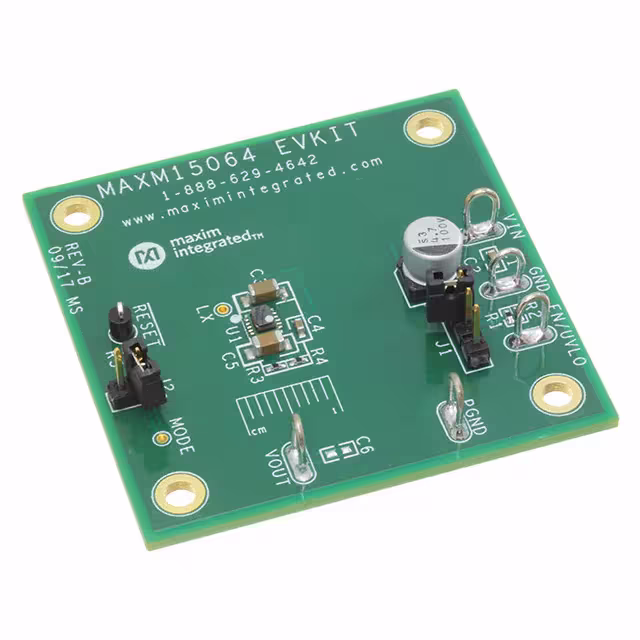

MAXM15064EVKIT#EVAL BOARD FOR MAXM15064 |
3,068 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 300mA | 12V ~ 60V | Buck | 500kHz | Board(s) | MAXM15064 |
|

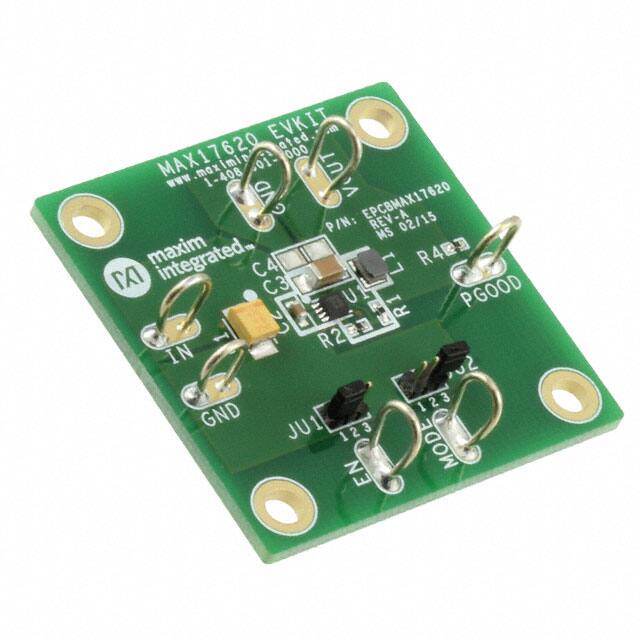

MAX17620EVKIT#EVAL BOARD FOR MAX17620 |
2,162 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V ~ 3.4V | 600mA | 2.7V ~ 5.5V | Buck | 4MHz | Board(s) | MAX17620 |
|

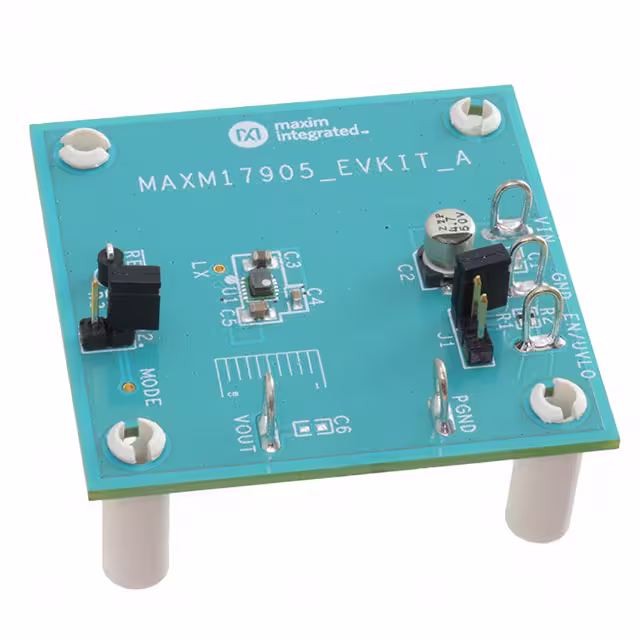

MAXM17905EVKIT#EVAL BOARD FOR MAXM17905 |
1,507 | - |
|
Datasheet | Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 300mA | 8.5V ~ 24V | Buck | 550kHz | Board(s) | MAXM17905 |
