DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

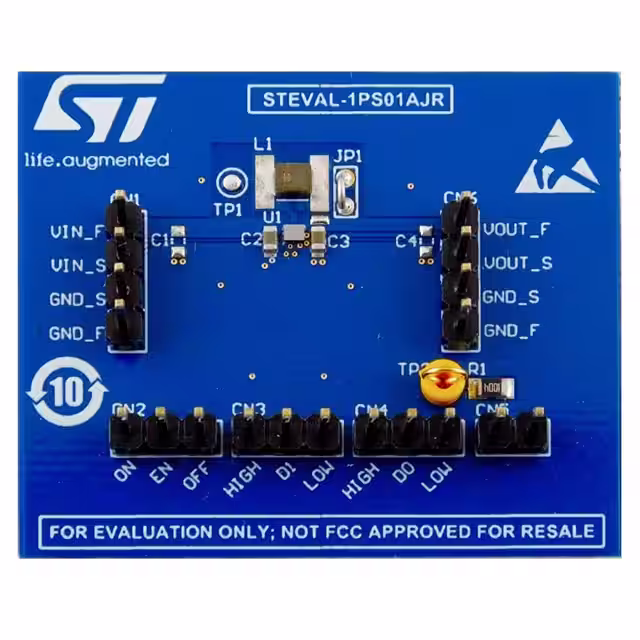

STEVAL-1PS01AJREVAL BOARD FOR ST1PS01 |
3,299 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.9V ~ 2.8V | 400mA | 1.8V ~ 5.5V | Buck | - | Board(s) | ST1PS01 |
|

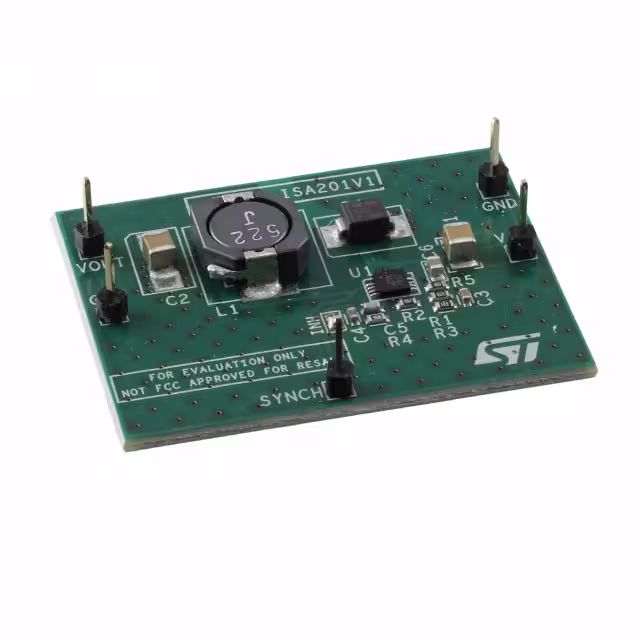

STEVAL-ISA201V1EVAL BOARD FOR L5987 |
2,840 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.9V ~ 18V | Buck | 430kHz | Board(s) | L5987 |
|
STEVAL-ISA190V1EVAL BOARD FOR A6986F |
1,222 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 6V | 1.5A | 4V ~ 38V | Buck | 500kHz | Board(s) | A6986F |
|
STEVAL-ISA187V1EVAL BOARD FOR A6985F |
3,684 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 4V ~ 38V | Buck | 2MHz | Board(s) | A6985F |
|
STEVAL-ISA186V1EVAL BOARD FOR A6985F5V |
1,271 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 4V ~ 38V | Buck | 2MHz | Board(s) | A6985F5V |
|
STEVAL-ISA200V1EVAL BOARD FOR A6984 |
1,985 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 400mA | 4.5V ~ 36V | Buck | 250kHz ~ 600kHz | Board(s) | A6984 |
|
STEVAL-VP22201BEVAL BOARD FOR VIPER222 |
2,211 | - |
|
Datasheet | VIPer™ plus | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | - | 5V | 360mA | 85 ~ 265 VAC | Flyback | 30kHz | Board(s) | VIPer222 |
|

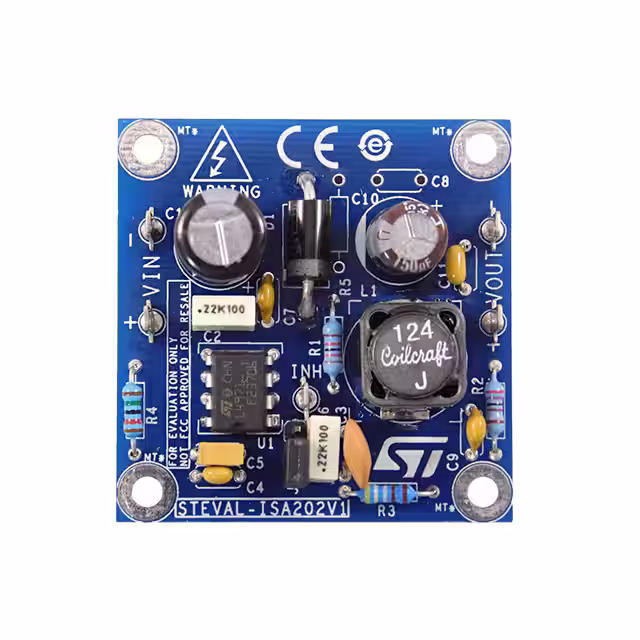

STEVAL-ISA202V1EVAL BOARD FOR L4971 |
1,651 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5.1V | 1.5A | 8V ~ 55V | Buck | 200kHz | Board(s) | L4971 |
|

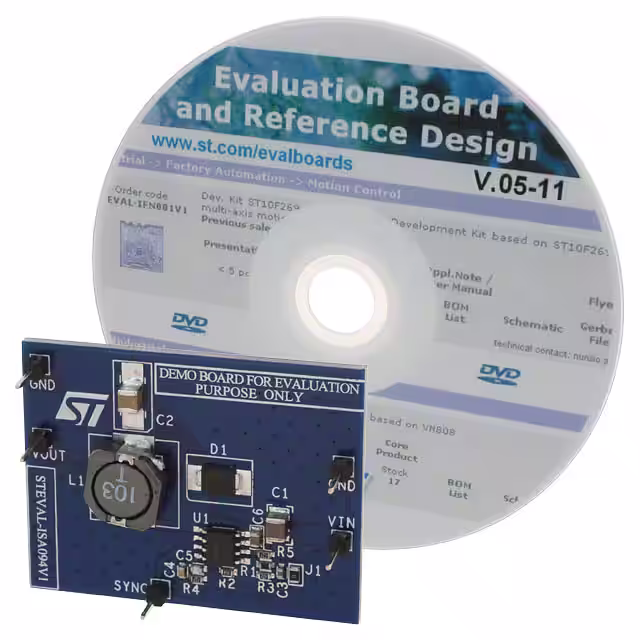

STEVAL-ISA094V1EVAL BOARD FOR L7981 |
2,722 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 28V | Buck | 250kHz | Board(s) | L7981 |
|
STEVAL-ISA162V1EVAL BOARD FOR VIPER25 |
4,882 | - |
|
Datasheet | VIPer™ plus | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 10 W | 12V | 840mA | 90 ~ 265 VAC | Flyback | - | Board(s) | VIPer25 |
