DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XRP9711EVB-DEMO-1EVAL BOARD FOR XRP9711 |
4,479 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.5V, 1.8V, 2.5V | 10A, 10A, 6A, 6A | 5.5V ~ 22V | Buck | - | Board(s) | XRP9711 |
|

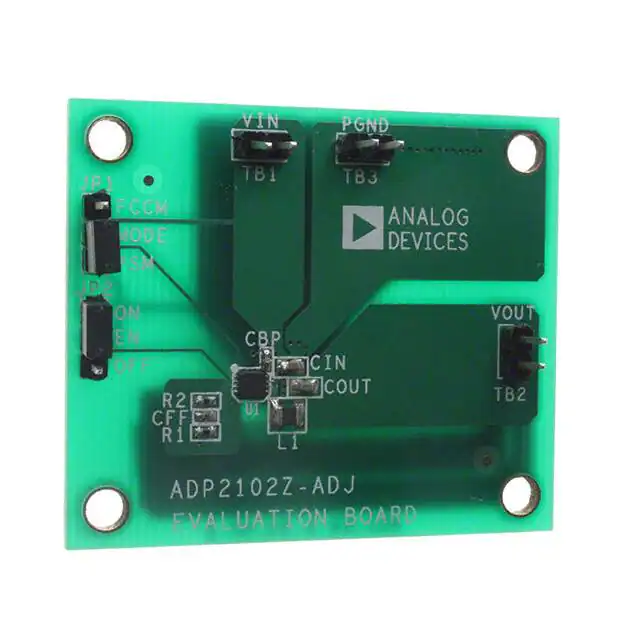

ADP2102-EVALZEVAL BOARD FOR ADP2102 |
2,706 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | ADP2102 |
|

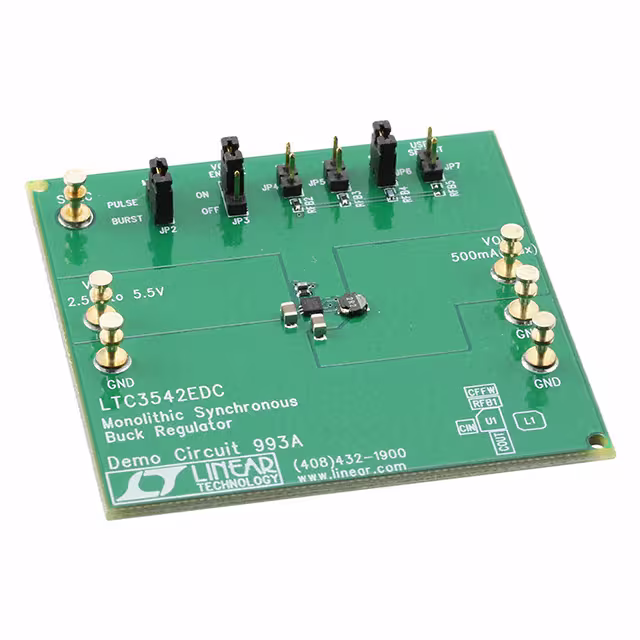

DC993AEVAL BOARD FOR LTC3542 |
3,052 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.5V or 1.8V | 500mA | 2.5V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3542 |
|
STEVAL-ISA019V1EVAL BOARD FOR L6565 |
1,317 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 80 W | 24V | 3.3A | 180 ~ 600 VAC | Flyback | 50kHz | Board(s) | L6565 |
|
NCP3163INVGEVBEVAL BOARD FOR NCP3163 |
4,149 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -15V | 500mA | 12V | Inverting | 150kHz | Board(s) | NCP3163 |
|
|
IRDC3812EVAL BOARD FOR IR3812 |
3,792 | - |
|
Datasheet | SupIRBuck® | Tube | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 4A | 5V ~ 12V | Buck | - | Board(s) | IR3812 |
|
|
NCP3020AGEVBEVAL BOARD FOR NCP3020A |
1,515 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 9V ~ 18V | Buck | 300kHz | Board(s) | NCP3020A |
|

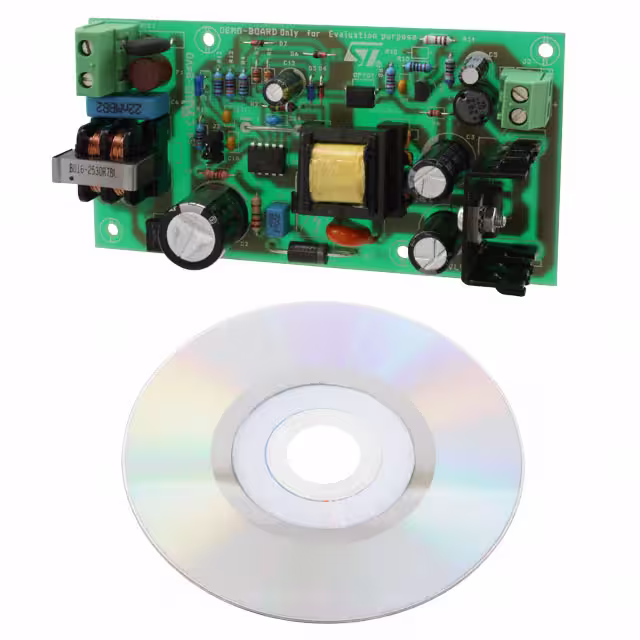

EVLVIP37LE5V3AEVAL BOARD FOR VIPER37 |
3,197 | - |
|
Datasheet | VIPer™ plus | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 15 W | 5V | 3A | 90 ~ 264 VAC | - | 60kHz | Board(s) | VIPer37 |
|
|
FEBFAN6863W_CP452V1EVAL BOARD FOR FAN6863W |
2,444 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 40 W | 19V | 2.1A | 90 ~ 264 VAC | Flyback | - | Board(s) | FAN6863W |
|
|
ISL8023EVAL3ZEVAL BOARD FOR ISL8023 |
1,627 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8023 |
|
|
ISL9440CEVAL1ZEVAL BOARD FOR ISL9440C |
3,805 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1V, 2.5V, 3.32V, 5V | 6A, 6A, 4A, 800mA | 6V ~ 16V | Buck | 600kHz | Board(s) | ISL9440C |
|

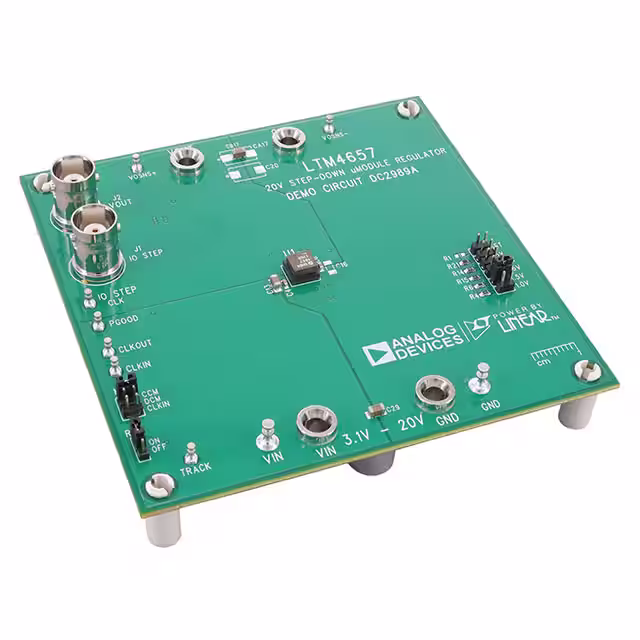

DC2989AEVAL BOARD FOR LTM4657 |
1,145 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.5V, 2.5V, 3.3V or 5V | 8A | 3.1V ~ 20V | Buck | 500kHz | Board(s) | LTM4657 |
|
|
MAX17291CEVKIT#EVAL BOARD FOR MAX17291C |
1,309 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | - | 1.8V ~ 4.5V | Boost | - | Board(s) | MAX17291C |
|
|
ISL8024EVAL3ZEVAL BOARD FOR ISL8024 |
2,110 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8024 |
|

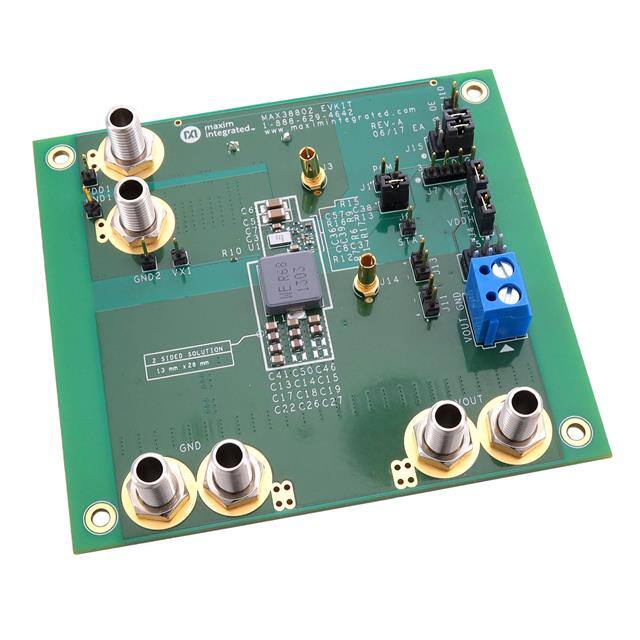

MAX38802EVKIT#EVAL BOARD FOR MAX38802 |
1,623 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 9A | 6.5V ~ 14V | Buck | - | Board(s) | MAX38802 |
|

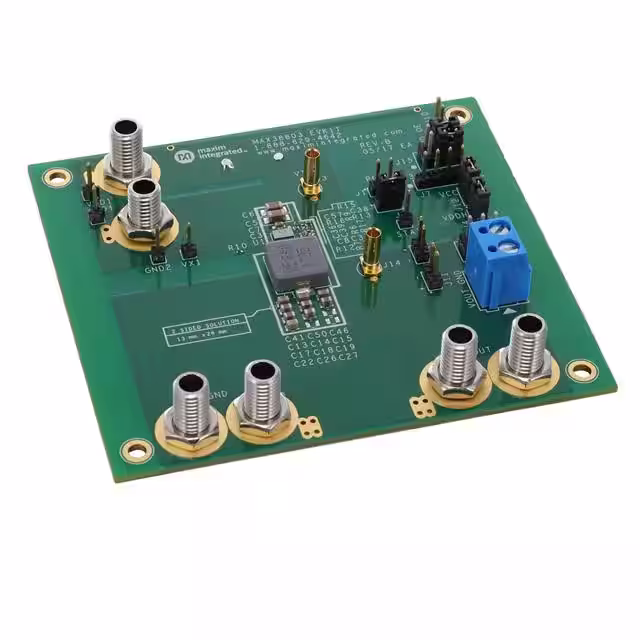

MAX38803EVKIT#EVAL BOARD FOR MAX38803 |
4,786 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 25A | 6.5V ~ 14V | Buck | - | Board(s) | MAX38803 |
|

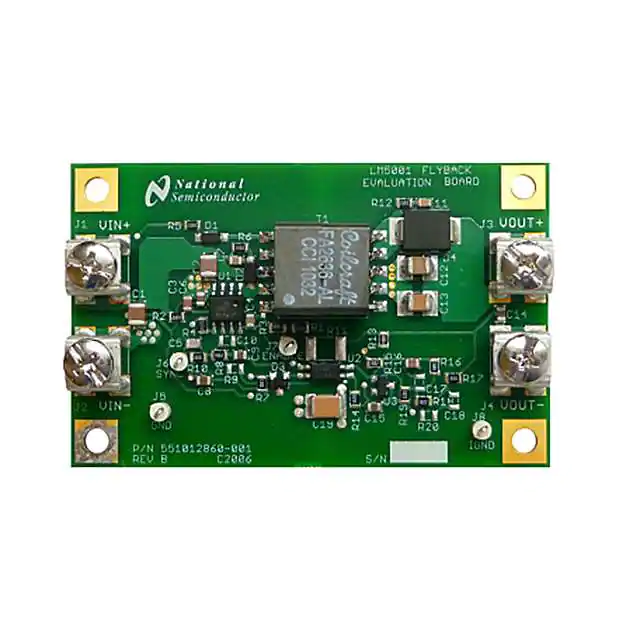

LM5001ISOEVALEVAL BOARD FOR LM5001 |
2,061 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 5V | 1A | 16V ~ 42V | Flyback | 250kHz | Board(s) | LM5001 |
|

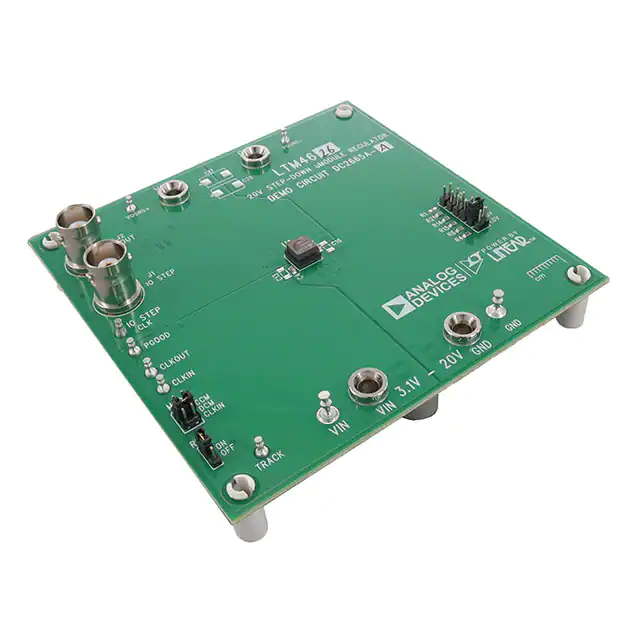

DC2665A-AEVAL BOARD FOR LTM4626 |
2,948 | - |
|
Datasheet | µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 12A | 3.1V ~ 20V | Buck | 600kHz | Board(s) | LTM4626 |
|
ARD00598EVAL BOARD FOR MCP1661 |
3,557 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Isolated Output | - | 5V | 200mA | 4.25V ~ 5.25V | Flyback | 500kHz | Board(s) | MCP1661 |
|
|
ISL8023AEVAL3ZEVAL BOARD FOR ISL8023A |
3,940 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL8023A |
