DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC645AEVAL BOARD FOR LTC3408 |
4,147 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.3V ~ 3.5V | 600mA | 2.7V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTC3408 |
|

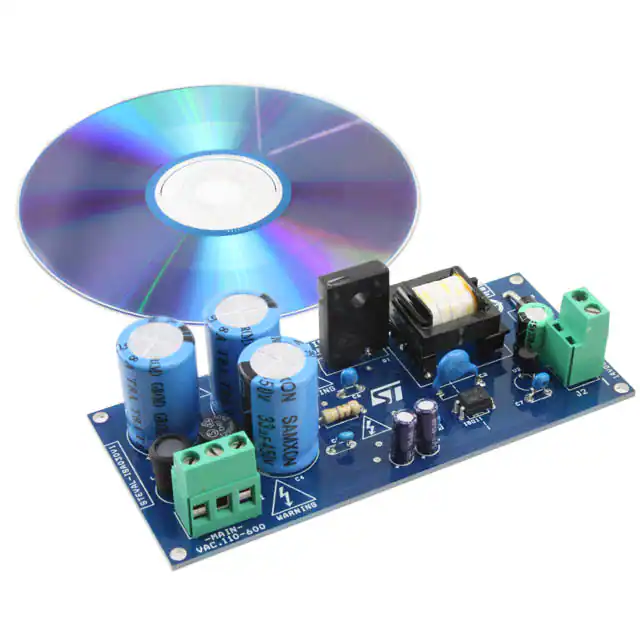

STEVAL-ISA030V1EVAL BOARD L6565 STC04IE170HP |
3,514 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 6 W | 14V | 430mA | 180 ~ 240 VAC | Flyback | - | Board(s) | L6565, STC04IE170HP |
|
|
MAX15058EVKIT+EVAL BOARD FOR MAX15058 |
4,127 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 5.4 W | 1.8V | 3A | 2.8V ~ 5.5V | Buck | 1MHz | Board(s) | MAX15058 |
|
MAX20038EVKIT#EVAL BOARD FOR MAX20038 |
1,096 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 4.5V ~ 28V | Buck | - | Board(s) | MAX20038 |
|

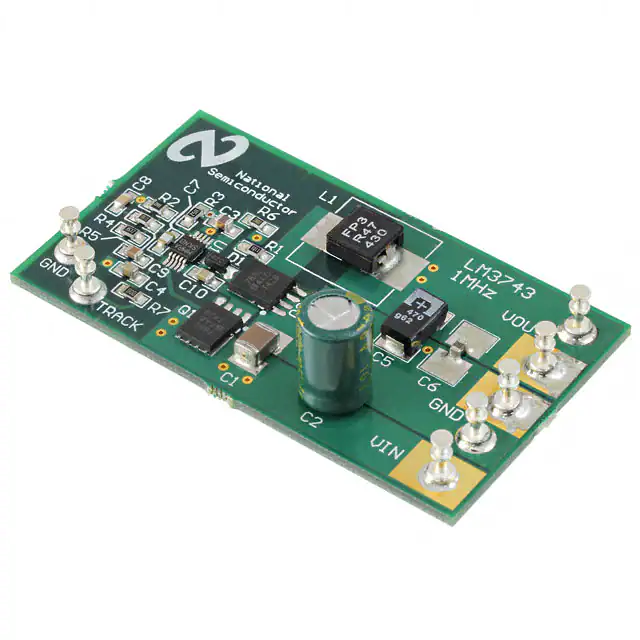

LM3743-1000EVALEVAL BOARD FOR LM3743 |
3,462 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 9A | 3V ~ 5.5V | Buck | 1MHz | Board(s) | LM3743 |
|
|
MAX629EVKITEVAL BOARD FOR MAX629 |
4,099 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | ±0.8V ~ 28V | 500mA | 0.8V ~ 28V | Buck-Boost | 300kHz | Board(s) | MAX629 |
|

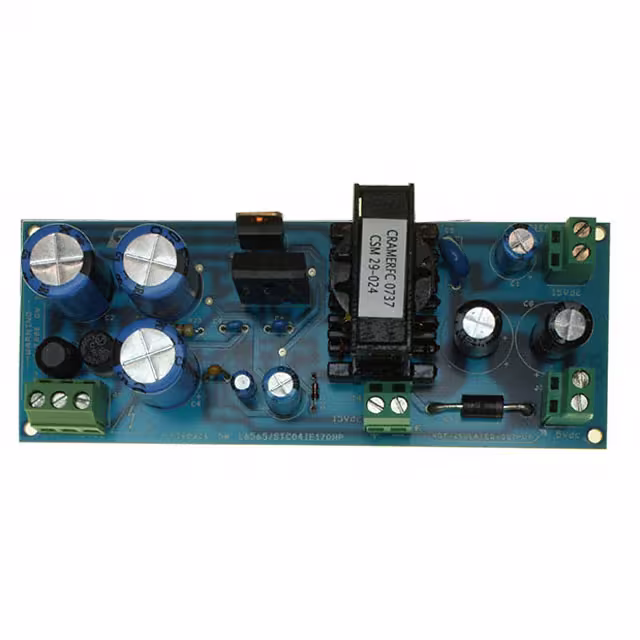

STEVAL-ISA036V1EVAL BOARD L6565 STC04IE170HP |
4,208 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output, 2 Non-Isolated Outputs | 5 W | 5V, 15V, 15V | 600mA, 66mA, 66mA | 200V ~ 1200V | Flyback | - | Board(s) | L6565, STC04IE170HP |
|

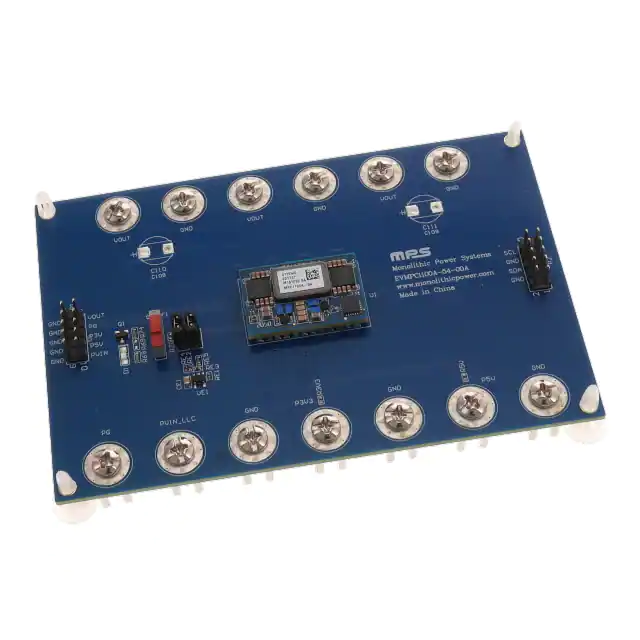

EVMPC1100A-54-00AEVAL BOARD FOR MPC1100A540000 |
3,744 | - |
|
Datasheet | - | Box | Obsolete | DC/DC Converter | 1 Non-Isolated Output | - | 4V ~ 6V | 60A | 40V ~ 60V | - | 813kHz | Board(s) | MPC1100A-54-0000 |
|
|
APEK8660KES-01-MH-10-410KHZEVAL BOARD |
1,096 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|
IW1830-EVAL1EVAL BOARD FOR IW183000 |
3,887 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 15 W | 5V | 3A | 90 ~ 264 VAC | Flyback | 72kHz | Board(s) | iW1830-00 |
|
|
EVAL_UJT060A0X43-SRPZ (SINGLE)EVALUATION BOARD |
1,246 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
IL3685P-ILDC11-01EVAL BOARD FOR IL3685P ILDC11 |
1,946 | - |
|
Datasheet | - | Bulk | Active | DC/DC Converter | 1 Isolated Output | - | 3.3V | - | 3.3V | Boost | - | Board(s) | IL3685P, ILDC11 |
|
|
IL2985-ILDC11-01EVAL BOARD FOR IL2985 ILDC11 |
4,991 | - |
|
Datasheet | - | Bulk | Active | DC/DC Converter | 1 Isolated Output | - | 3.3V | - | 3.3V | Boost | - | Board(s) | IL2985, ILDC11 |
|
|
RTKA212831DR0000BUEVAL BOARD FOR RAA212831 |
2,116 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 3.3V, 5V, 6V ~ 12V | 500mA, 100mA, 50mA | 4.5V ~ 72V | Buck | 350kHz | Board(s) | RAA212831 |
|
|
APEK8653KLP-01-TEVAL BOARD FOR A8653 |
2,607 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2.6A | 4V ~ 36V | Buck | - | Board(s) | A8653 |
|
|
APEK8654KLP-01-MHEVAL BOARD FOR A8654 |
1,689 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V | 3A | 4V ~ 36V | Buck | - | Board(s) | A8654 |
|
RDK-83EVAL BOARD LNK562 LNK563 LNK564 |
3,624 | - |
|
Datasheet | LinkSwitch®-LP | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 1.6 W | 7.7V | 210mA | 85 ~ 265 VAC | Flyback | 66kHz | Board(s), Accessories | LNK562, LNK563, LNK564 |
|
DAK-86EVAL BOARD DPA423 DPA424 DPA425 |
4,053 | - |
|
Datasheet | DPA-Switch® | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 6.6 W | 3.3V | 2A | 33V ~ 57V | Flyback | 400kHz | Board(s) | DPA423, DPA424, DPA425 |
|
RDK-138EVAL BOARD FOR LNK304 |
4,396 | - |
|
Datasheet | - | Box | Active | AC/DC, Non-Isolated | 2 Non-Isolated Outputs | 1.2 W | 5V, 12V | 80mA, 50mA | 85 ~ 265 VAC | Buck | 66kHz | Board(s) | LNK304 |
|
DC1519AEVAL BOARD FOR LT3695 |
4,818 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6.9V ~ 36V | Buck | 800kHz | Board(s) | LT3695 |
