DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

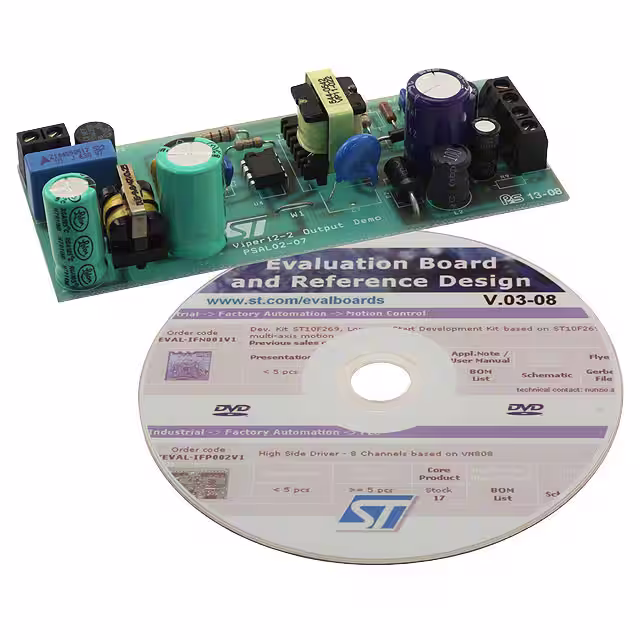

STEVAL-ISA001V1EVAL BOARD FOR VIPER12A |
2,608 | - |
|
Datasheet | VIPER™ | Bulk | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 6 W | 5V, 12V | 600mA, 250mA | 85 ~ 264 VAC | - | 60kHz | Board(s) | VIPer12A |
|

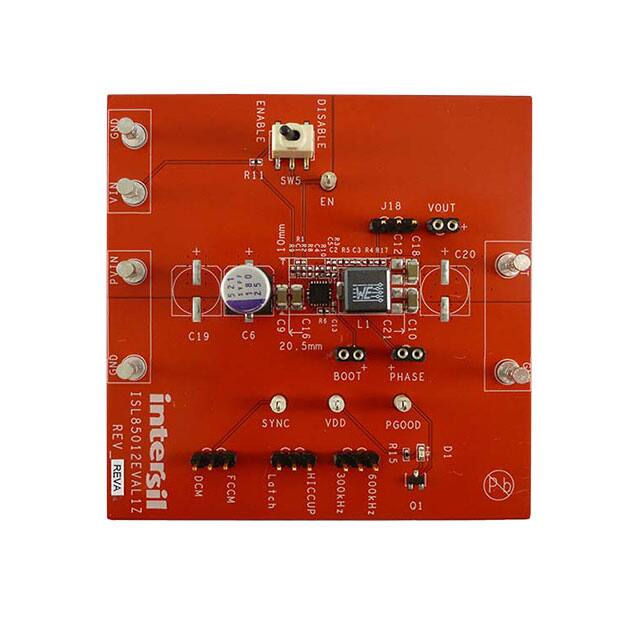

ISL85012EVAL1ZEVAL BOARD FOR ISL85012 |
2,570 | - |
|
Datasheet | - | Bulk | Last Time Buy | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 12A | 4.5V ~ 18V | Buck | 600kHz | Board(s) | ISL85012 |
|
MAX15118EVKIT#EVAL BOARD FOR MAX15118 |
4,694 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 27 W | 1.5V | 18A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | MAX15118 |
|

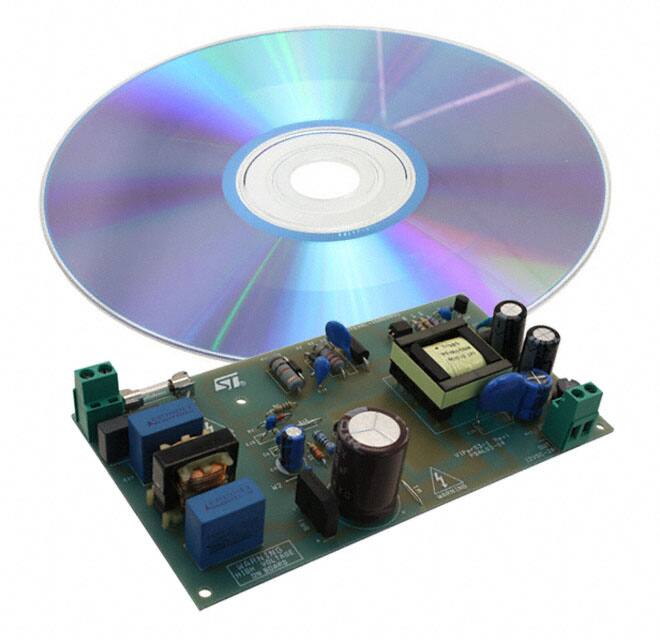

STEVAL-ISA009V1EVAL BOARD FOR VIPER53 |
2,646 | - |
|
Datasheet | VIPER™ | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 24 W | 12V | 2A | 90 ~ 264 VAC | Flyback | 100kHz | Board(s) | VIPer53 |
|
MAX8655EVKIT+EVAL BOARD FOR MAX8655 |
2,147 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 20A | 10.8V ~ 13.2V | Buck | 600kHz | Board(s) | MAX8655 |
|

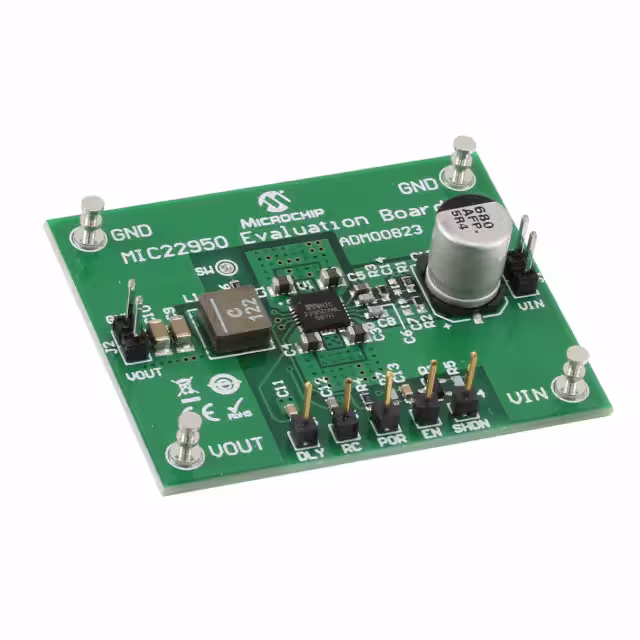

ADM00823EVAL BOARD FOR MIC22950 |
1,799 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 10A | 2.6V ~ 5.5V | Buck | 524kHz | Board(s) | MIC22950 |
|
|
EMEVB8900WEVAL BOARD FOR EM8900 |
1,556 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | - | - | Boost | - | Board(s) | EM8900 |
|
|
MYMGK1R820FRSR-H-EVMEVAL BOARD FOR MYMGK1R820FRSRH |
1,384 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 20A | 4.5V ~ 8V | Buck | 500kHz | Board(s) | MYMGK1R820FRSR-H |
|
|
MYTNC1R86RELA2RA-EVMEVAL BOARD FOR MYTNC1R86RELA2RA |
1,249 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V | 6A | 6V ~ 14.4V | Buck | 1MHz | Board(s) | MYTNC1R86RELA2RA |
|
|
MYTNA1R84RELA2RA-EVMEVAL BOARD FOR MYTNA1R84RELA2RA |
1,096 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 4A | 6V ~ 14.4V | Buck | 1MHz | Board(s) | MYTNA1R84RELA2RA |
|
|
MYTNC1R84RELA2RA-EVMEVAL BOARD FOR MYTNC1R84RELA2R |
4,731 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V | 4A | 6V ~ 14.4V | Buck | 1MHz | Board(s) | MYTNC1R84RELA2R |
|
|
MYTNA1R86RELA2RA-EVMEVAL BOARD FOR MYTNA1R86RELA2RA |
3,370 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 6A | 6V ~ 14.4V | Buck | 1MHz | Board(s) | MYTNA1R86RELA2RA |
|
|
MYMGK1R820ERSR-H-EVMEVAL BOARD FOR MYMGK1R820ERSRH |
1,657 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 20A | 8V ~ 15V | Buck | 500kHz | Board(s) | MYMGK1R820ERSR-H |
|

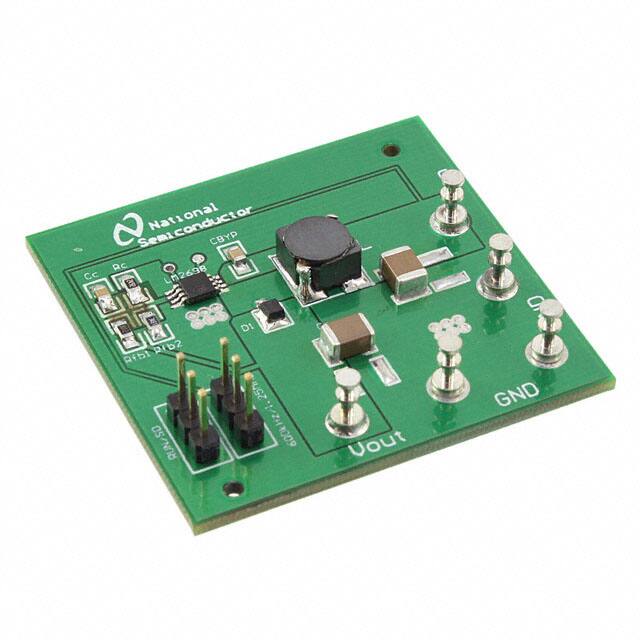

LM2698EVALEVAL BOARD FOR LM2698 |
3,637 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 400mA | 4.5V ~ 9V | Boost | - | Board(s) | LM2698 |
|
RDK-91EVAL BOARD FOR TNY274 TNY275 |
1,175 | - |
|
Datasheet | TinySwitch®-III | Box | Obsolete | AC/DC, Primary Side | 1 Non-Isolated Output | 12 W | 12V | 1A | 85 ~ 265 VAC | Flyback | - | Board(s), Accessories | TNY274, TNY275, TNY276, TNY277, TNY278, TNY279, TNY280 |
|
|
EL7532EVAL1ZEVAL BOARD FOR EL7532 |
3,903 | - |
|
Datasheet | - | Box | Last Time Buy | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | EL7532 |
|
|
ISL8502EVAL1ZEVAL BOARD FOR ISL8502 |
2,992 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 2.5V, 2.5V | 2.5A. 2.5A | 4.5V ~ 14V | Buck | 500kHz | Board(s) | ISL8502 |
|
|
ISL8118EVAL1ZEVAL BOARD FOR ISL8118 |
2,252 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 25A | 4.5V ~ 20V | Buck | 300kHz | Board(s) | ISL8118 |
|
|
ISL8500EVAL2ZEVAL BOARD FOR ISL8500 |
1,285 | - |
|
Datasheet | - | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 2A | 9V ~ 14V | Inverting | 500kHz | Board(s) | ISL8500 |
|
|
ISL8126EVAL1ZEVAL BOARD FOR ISL8126 |
2,667 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 50A | 10V ~ 16V | Buck | 350kHz | Board(s) | ISL8126 |
