DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDK-611EVAL BOARD FOR INN3672C |
1,906 | - |
|
Datasheet | InnoSwitch™3-EP | Box | Obsolete | AC/DC Converter | 2 Isolated Outputs | 10 W | 5V, 12V | 700mA, 300mA | 90 ~ 265 VAC | Flyback | - | Board(s) | INN3672C |
|

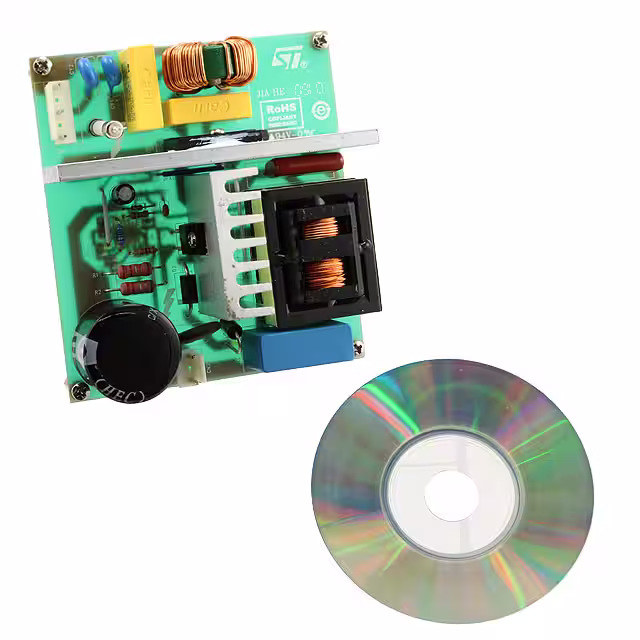

EVL6563S-200ZRCEVAL BOARD FOR L6563 |
2,075 | - |
|
Datasheet | - | Box | Active | AC/DC, Non-Isolated | 2 Non-Isolated Outputs | 200 W | 400V | - | 90 ~ 265 VAC | - | 40kHz | Board(s) | L6563 |
|
DC883AEVAL BOARD FOR LT3473 |
3,659 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 25V | 80mA | 3V ~ 4.2V | Boost | 1.2MHz | Board(s) | LT3473 |
|
|
ISL78236CRSHEVAL1ZEVAL BOARD FOR ISL78236 |
3,068 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 1.8V | 3A, 3A | 2.85V ~ 6V | Buck | 2.5MHz | Board(s) | ISL78236 |
|

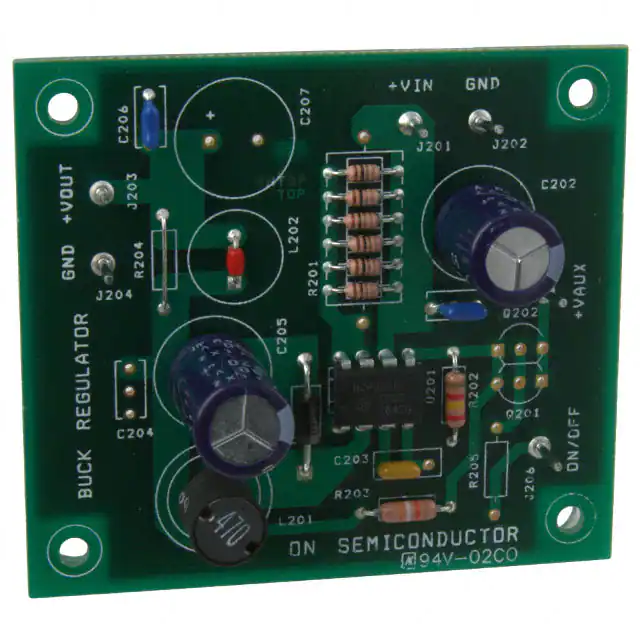

NCP3063DIPBCKEVBEVAL BOARD FOR NCP3063 |
4,051 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 7V ~ 15V | Buck | 250kHz | Board(s) | NCP3063 |
|

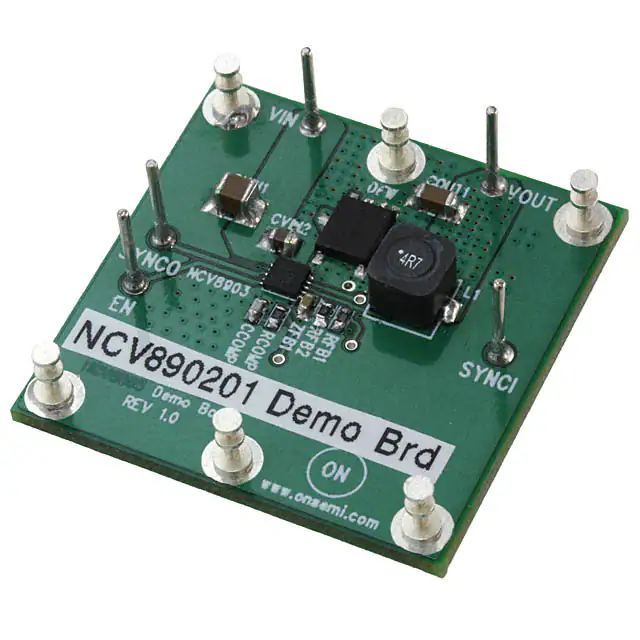

NV890201MWTXGEVBEVAL BOARD FOR NV890201 |
3,593 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.5V ~ 36V | Buck | 2MHz | Board(s) | NV890201 |
|

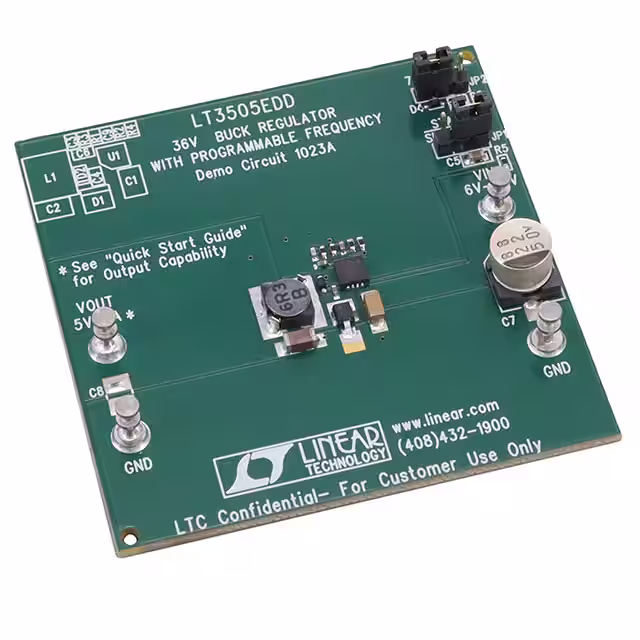

DC1023AEVAL BOARD FOR LT3505 |
4,814 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6V ~ 36V | Buck | 2.2MHz | Board(s) | LT3505 |
|
|
EVAL6598-100WEVAL BOARD FOR L6563 L6598 |
3,363 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Isolated Output | 100 W | 24V | 4A | 90 ~ 264 VAC | Resonant | - | Board(s) | L6563, L6598 |
|
STEVAL-ISA015V2EVAL BOARD L6565 STC04IE170HV |
2,611 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 100 W | 24V | 4.3A | 320 ~ 480 VAC | Flyback | - | Board(s) | L6565, STC04IE170HV |
|

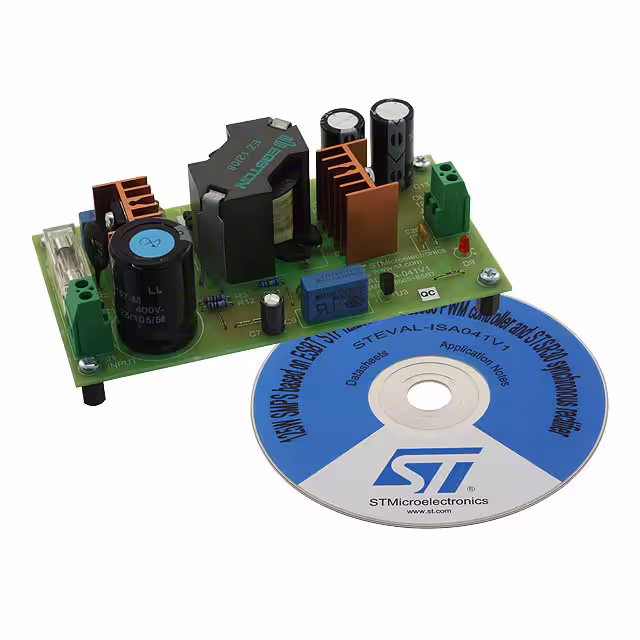

STEVAL-ISA041V1EVAL BOARD FOR L6565 STP12IE95F4 |
1,968 | - |
|
Datasheet | VIPER™ | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 125 W | 19V | 6.6A | 240V ~ 400V | Flyback | 55kHz | Board(s) | L6565, STP12IE95F4 |
|

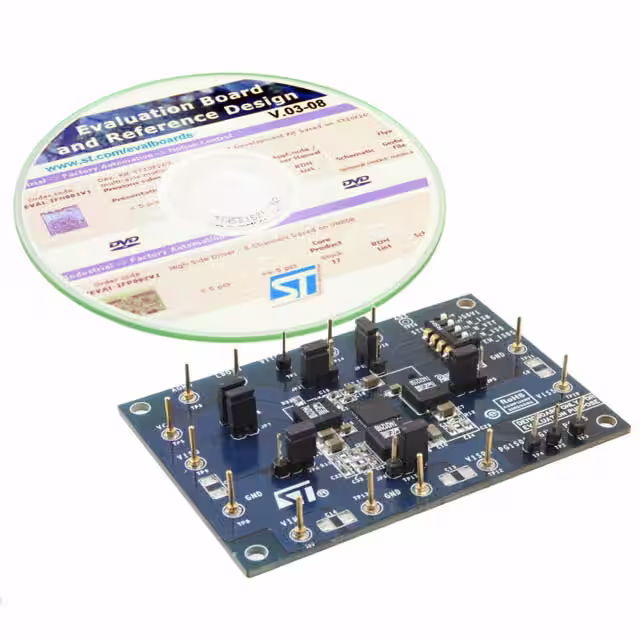

STEVAL-ISA050V1EVAL BOARD FOR PM6641 |
1,006 | - |
|
Datasheet | - | Bulk | Obsolete | Special Purpose DC/DC, DDR Memory Supply | 5 Non-Isolated Outputs | 14.7 W | 0.8V, 0.9V, 1.05V, 1.5V, 1.8V | 4A, 2.8A, 2.5A, 2A | 2.7V ~ 5.5V | Buck | 750kHz | Board(s) | PM6641 |
|

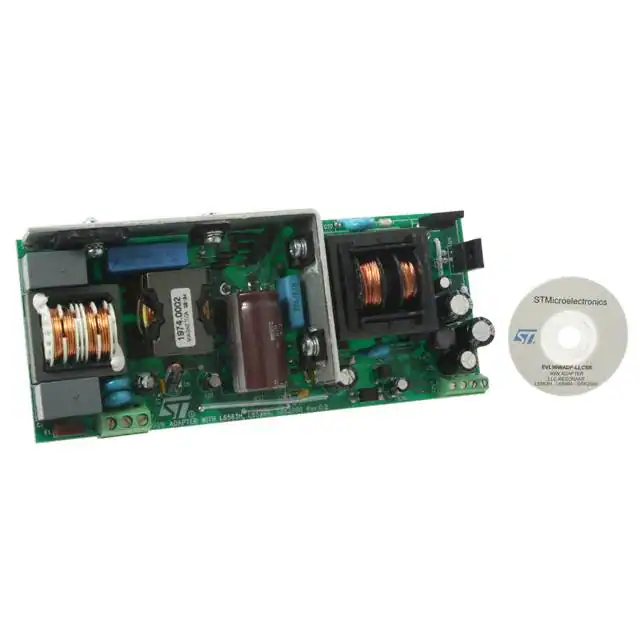

EVL90WADP-LLCSREVAL BOARD L6563H L6599A SRK2000 |
2,126 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 90 W | 19V | 4.75A | 90 ~ 264 VAC | Boost | 130kHz | Board(s) | L6563H, L6599A, SRK2000 |
|

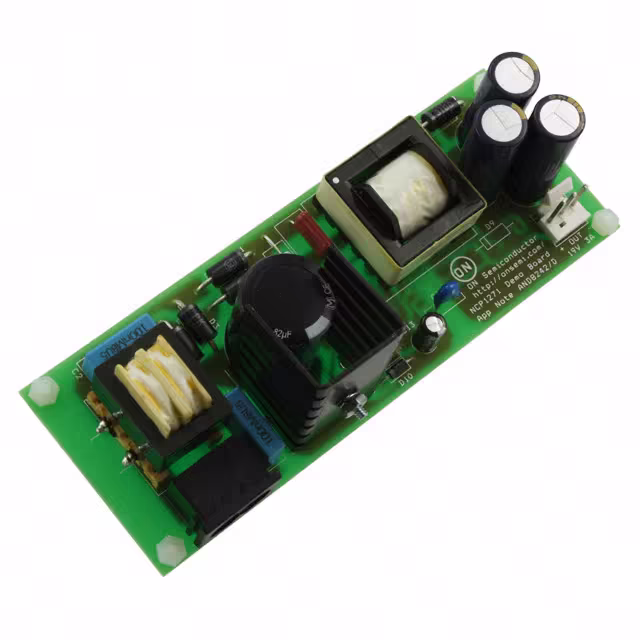

NCP1271ADAPGEVBEVAL BOARD FOR NCP1271 |
2,612 | - |
|
Datasheet | Soft-Skip™ | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | 19V | 3A | 85 ~ 265 VAC | Flyback | 65kHz | Board(s) | NCP1271 |
|
|
NCP3163BUCKEVBEVAL BOARD FOR NCP3163 |
1,685 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 2.5A | 8V ~ 24V | Buck | - | Board(s) | NCP3163 |
|
|
NCP3063SMDINVEVBEVAL BOARD FOR NCP3063 |
3,590 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 100mA | 5V | Inverting | - | Board(s) | NCP3063 |
|
|
DC1043A-BEVAL BOARD FOR LTM4601 |
3,894 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, or 3.3V | 30A | 5V ~ 20V | Buck | 750kHz | Board(s) | LTM4601 |
|
|
DC1118A-BEVAL BOARD FOR LTM4601 |
3,703 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.8V, 2.5V, 3.3V | 12A, 12A, 10A | 5V ~ 20V | Buck | 750kHz | Board(s) | LTM4601 |
|
|
DC1237A-BEVAL BOARD FOR LTC35271 |
1,830 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 3.3V, 5V | - | 0.7V ~ 5.5V | Boost | 1.2MHz, 2.2MHz | Board(s) | LTC3527-1 |
|

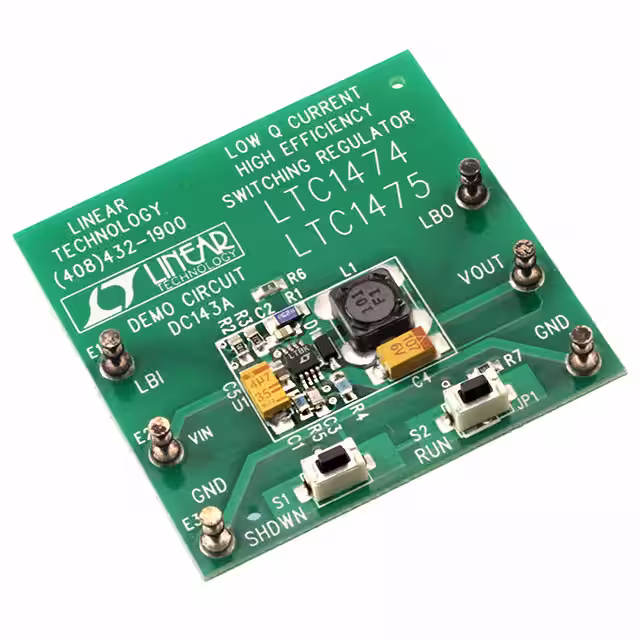

DC143A-DEVAL BOARD FOR LTC1475 |
1,045 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 3.3V ~ 18V | Buck | - | Board(s) | LTC1475 |
|
|
ISL78236DUALEVAL1ZEVAL BOARD FOR ISL78236 |
2,734 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 1.8V | 3A, 3A | 2.85V ~ 6V | Buck | 2.5MHz | Board(s) | ISL78236 |
