DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

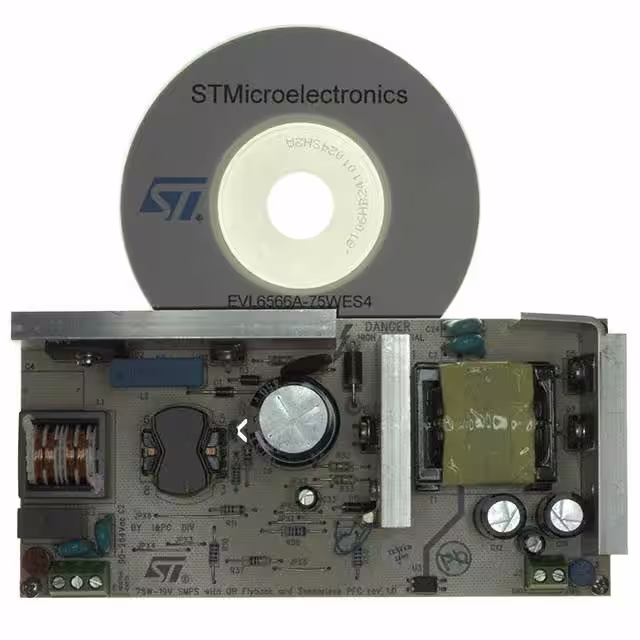

EVL6566A-75WES4EVAL BOARD L6563 L6566A TSM1014 |
3,457 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 75 W | 19V | 4A | 90 ~ 264 VAC | Flyback | - | Board(s) | L6563, L6566A, TSM1014 |
|

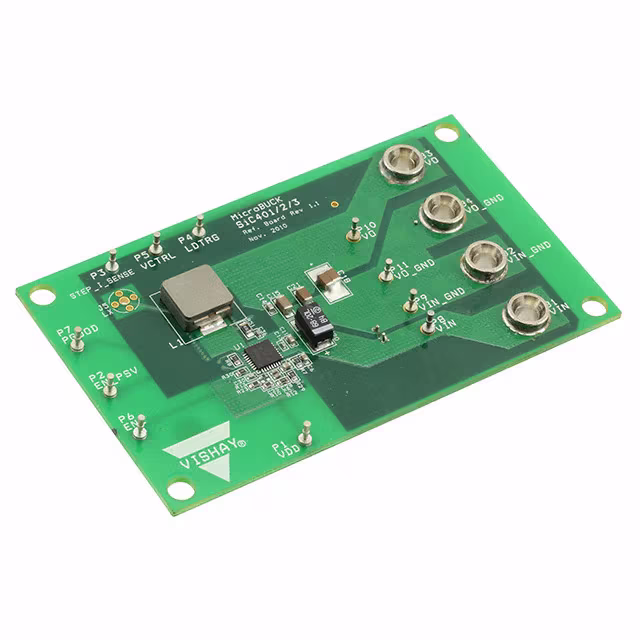

SIC401DBEVAL BOARD FOR SIC401 |
4,472 | - |
|
Datasheet | microBUCK® | Box | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | 15A, 200mA | 3V ~ 17V | Buck | - | Board(s) | SiC401 |
|

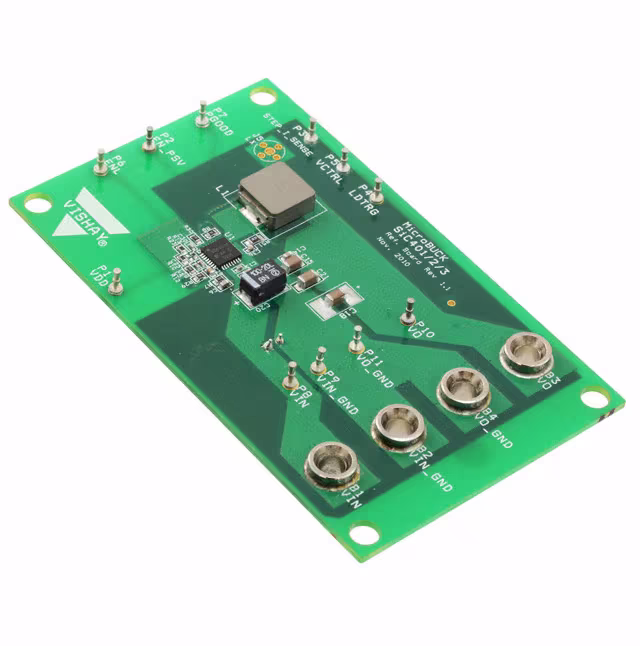

SIC402DBEVAL BOARD FOR SIC402 |
2,992 | - |
|
Datasheet | microBUCK® | Box | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | 10A, 200mA | 3V ~ 28V | Buck | - | Board(s) | SiC402 |
|
SIC403DBEVAL BOARD FOR SIC403 |
4,542 | - |
|
Datasheet | microBUCK® | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | 6A, 200mA | 3V ~ 28V | Buck | - | Board(s) | SiC403 |
|
SIP12110DBEVAL BOARD FOR SIP12110 |
4,734 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 6A | 4.5V ~ 15V | Buck | 1MHz | Board(s) | SiP12110 |
|
SIC462EVBEVAL BOARD FOR SIC462 |
1,046 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 6A | 4.5V ~ 60V | Buck | - | Board(s) | SIC462 |
|
|
MAX77540QEVKIT#EVAL BOARD FOR MAX77540Q |
2,027 | - |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | Board(s) | MAX77540Q |
|
|
MAX77348EVKIT#EVAL BOARD FOR MAX77348 |
2,000 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 3.5 W | 4.5V | 1A | 2.3V ~ 5.5V | Buck-Boost | - | Board(s) | MAX77348 |
|
|
PKT-MEZDPD4506AEVAL BOARD FOR MEZDPD4506A |
2,918 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 22V | 6A | 4V ~ 45V | Buck | 600kHz | Board(s), Cable(s), Accessories | mEZDPD4506A |
|
|
EVKT-MP5470EVAL BOARD FOR MP5470 |
3,589 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.78V, 0.78V, 1.8V, 3.3V | 3A, 3A, 2A, 2A | 6.5V ~ 16V | Buck | 800kHz | Board(s), Cable(s), Accessories | MP5470 |
|
|
EVKT-MPM3593EVAL BOARD FOR MPM3593 |
4,193 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 3.5V ~ 45V | Buck | 500kHz | Board(s) | MPM3593 |
|

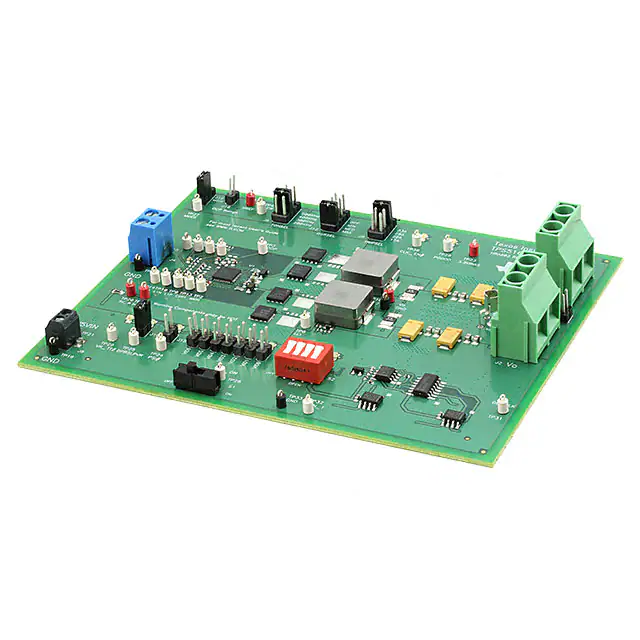

TPS51621EVM-602EVAL BOARD FOR TPS51621 |
1,827 | - |
|
Datasheet | D-CAP™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.3V ~ 1.5V | 40A | 12V | Buck | 200kHz, 300kHz, 400kHz, 500kHz | Board(s) | TPS51621 |
|

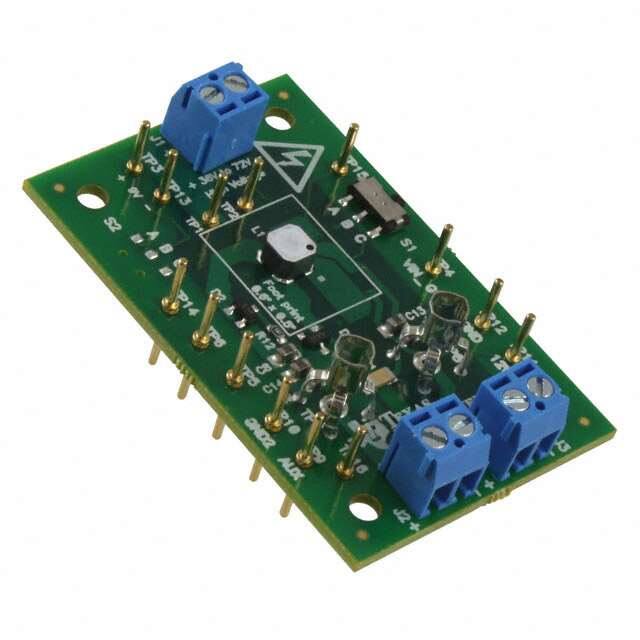

UCC25230EVM-754EVAL BOARD FOR UCC25230 |
1,197 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output, 1 Non-Isolated Output | 1.5 W | 12V, 12V | 65mA | 36V ~ 72V | Buck | 380kHz | Board(s) | UCC25230 |
|

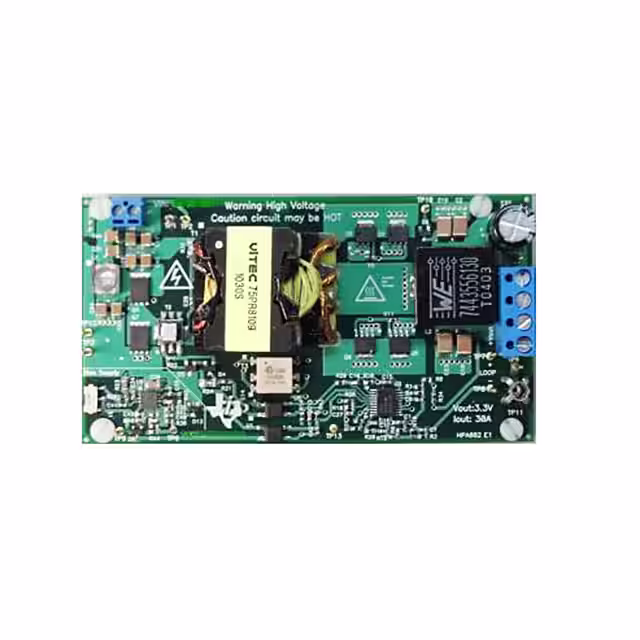

UCC25230EVM-662EVAL BOARD FOR UCC25230 UCC28250 |
4,406 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 100 W | 3.3V | 30A | 36V ~ 72V | Buck | 200kHz | Board(s) | UCC25230, UCC28250 |
|
|
LM3691TL-1.2EV/NOPBEVAL BOARD FOR LM3691 |
1,441 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1A | 2.3V ~ 5.5V | Buck | 4MHz | Board(s) | LM3691 |
|
TPS659122EVM-081EVAL BOARD FOR TPS659122 |
4,987 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down with LDO | 14 Non-Isolated Outputs | - | - | - | 1.8V, 5V | Buck | - | Board(s) | TPS659122 |
|
PMLKBOOSTEVMBEVAL BOARD FOR LM5122 TPS55340 |
3,614 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 24V, 24V | 2A, 1.9A | 5V ~ 12V, 9V ~ 20V | Boost | - | Board(s) | LM5122, TPS55340 |
|
|
PMLKBUCKBOOSTEVMBEVAL BOARD FOR LM5118 |
2,106 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | - | - | - | Buck-Boost | - | Board(s) | LM5118 |
|

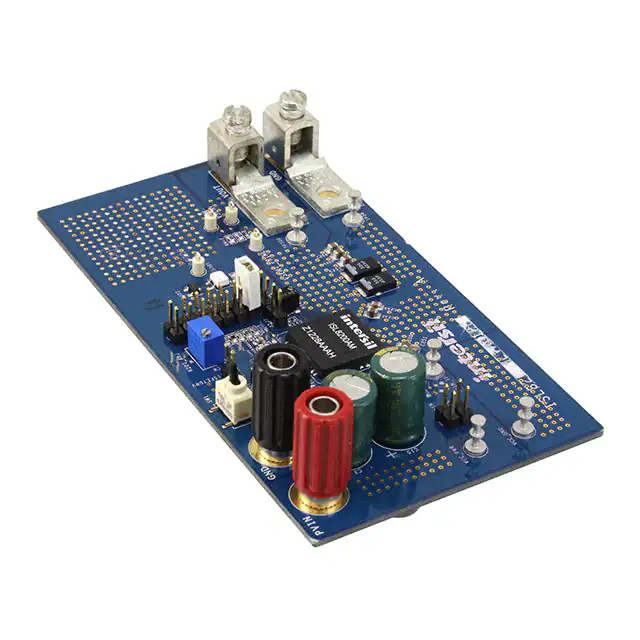

ISL8200AMEV1PHZEVAL BOARD FOR ISL8200AM |
3,627 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 6V | 10A | 3V ~ 20V | Buck | - | Board(s) | ISL8200AM |
|
|
ISL88550AEVAL1ZEVAL BOARD FOR ISL88550A |
2,692 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, DDR Memory Supply | 2 Non-Isolated Outputs | 28.3 W | 1.8V, 0.9V | 15A, 1.5A | 2V ~ 25V | Buck | - | Board(s) | ISL88550A |
