DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1442AEVAL BOARD FOR LTC3603 |
4,574 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V or 5V | 2.5A | 4.5V ~ 15V | Buck | 1MHz | Board(s) | LTC3603 |
|
|
DC1489A-AEVAL BOARD FOR LTC3619 |
1,811 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 3.4V | 500mA, 400mA | 4.5V ~ 5.5V | Buck | - | Board(s) | LTC3619 |
|
|
DC1226AEVAL BOARD FOR LTC3529 |
2,337 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | - | 1.8V ~ 5.25V | Boost | 1.5MHz | Board(s) | LTC3529 |
|
|
DC1754AEVAL BOARD FOR LTC3104 |
1,249 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 300mA, 10mA | 2.5V ~ 15V | Buck | 1.2MHz | Board(s) | LTC3104 |
|
|
DC1277AEVAL BOARD FOR LTC3670 |
2,234 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 2.8V, 3.3V | 400mA, 150mA, 150mA | 2.5V ~ 5.5V | Buck | - | Board(s) | LTC3670 |
|
|
DC970A-AEVAL BOARD FOR LTC3541 |
2,425 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 500mA, 300mA | 3V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3541 |
|
|
DC970A-BEVAL BOARD FOR LTC35411 |
4,422 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 500mA, 300mA | 3V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3541-1 |
|
|
DC2004AEVAL BOARD FOR LTC3622EMSE |
1,836 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 2.5V, 3.3V | 1A, 1A | 2.7V ~ 17V | Buck | 1MHz | Board(s) | LTC3622EMSE |
|
NCP1216AFORWGEVBEVAL BOARD FOR NCP1216A |
2,917 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 12V | 3A | 36V ~ 72V | Forward Converter | 100kHz | Board(s) | NCP1216A |
|
|
KIT34670EGEVBEEVAL BOARD FOR MC34670 |
4,074 | - |
|
Datasheet | - | Box | Not For New Designs | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 5V | - | - | Buck | - | Board(s), Cable(s) | MC34670 |
|
|
ISL91128IIN-EVZEVAL BOARD FOR ISL91128IINZ |
2,622 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 2.4A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91128IINZ |
|
IS66066 EVALUATION MODULE KITEVAL BOARD FOR IS66066 |
3,890 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 12A | 4.8V ~ 16V | Buck | - | Board(s) | IS66066 |
|
IS6605A EVALUATION MODULE KITEVAL BOARD FOR IS6605A |
2,581 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 6A | 4V ~ 16V | Buck | - | Board(s) | IS6605A |
|

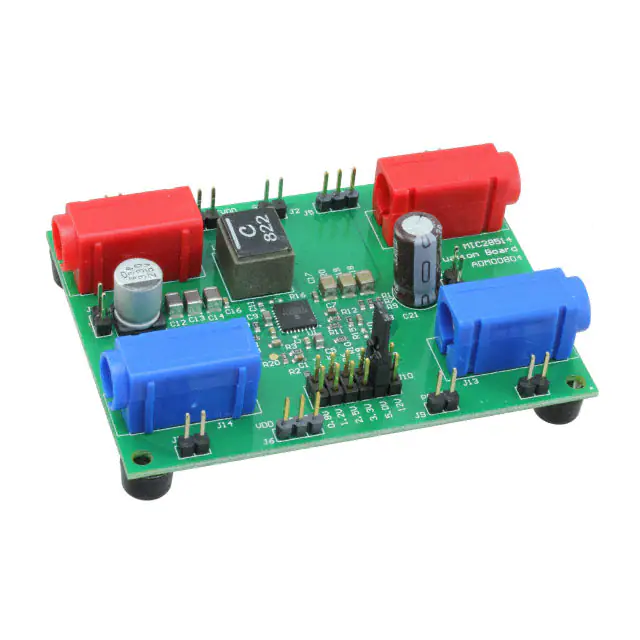

ADM00804EVAL BOARD FOR MIC28514 |
4,238 | - |
|
Datasheet | Hyper Speed Control® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 10V ~ 75V | Buck | 300kHz | Board(s) | MIC28514 |
|

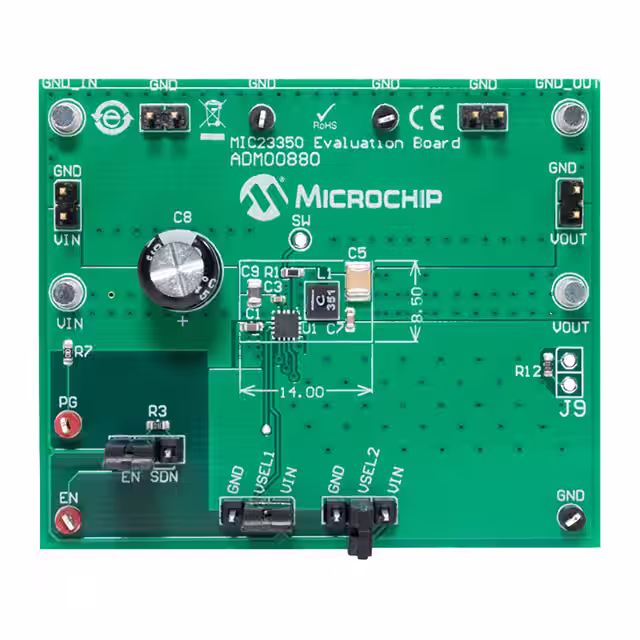

ADM00880EVAL BOARD FOR MIC23350 |
4,448 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 0.8V, 0.9V, 1V, 1.2V, 1.5V, 1.8V, 2.5V or 3.3V | 3A | 2.4V ~ 5.5V | Buck | - | Board(s) | MIC23350 |
|
DEMOBOARD TLE 6389-2 GV50EVAL BOARD FOR TLE6389 |
4,524 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 5V ~ 60V | Buck | 360kHz | Board(s) | TLE6389 |
|
DEMOBOARD TLE 6389-2GVEVAL BOARD FOR TLE6389 |
4,277 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 7V ~ 15V | 2.5A | 5V ~ 60V | Buck | 360kHz | Board(s) | TLE6389 |
|
DEMOBOARD TLE 6389-3 GV50EVAL BOARD FOR TLE6389 |
2,815 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 5V ~ 60V | Buck | 360kHz | Board(s) | TLE6389 |
|

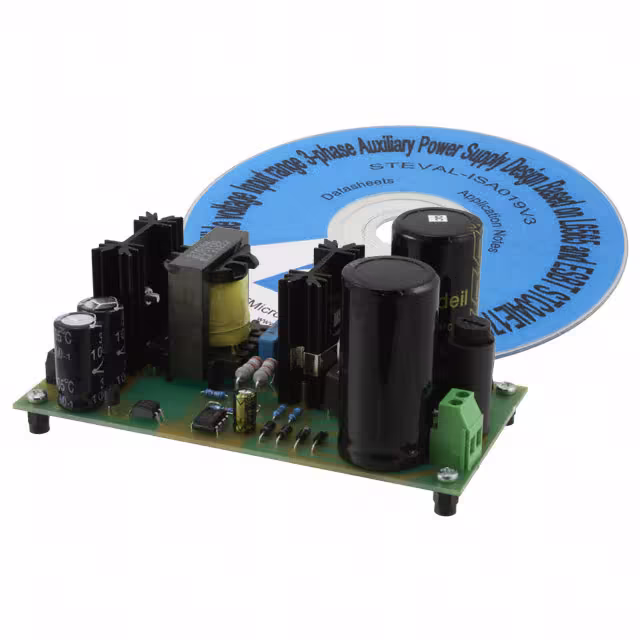

STEVAL-ISA019V3EVAL BOARD L6565 STC04IE170HP |
4,245 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 80 W | 24V | 3.3A | - | Flyback | 50kHz | Board(s) | L6565, STC04IE170HP |
|
BM2P0161-EVK-003EVAL BOARD FOR BM2P0161 |
3,778 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | 24 W | 12V | 2A | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | BM2P0161 |
