DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC413AEVAL BOARD FOR LTC3404 |
1,158 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 200mA | 2.7V ~ 6V | Buck | - | Board(s) | LTC3404 |
|
|
DC092A-BEVAL BOARD FOR LTC15514.1 |
1,457 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | - | - | 4.5V ~ 6.5V | Inverting | 900kHz | Board(s) | LTC1551-4.1 |
|
|
DC323A-AEVAL BOARD FOR LTC17515 |
2,810 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 100mA | 2.7V ~ 5.5V | Boost | - | Board(s) | LTC1751-5 |
|
|
DC323A-BEVAL BOARD FOR LTC17513.3 |
4,678 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 80mA | 2V ~ 4.4V | Boost | - | Board(s) | LTC1751-3.3 |
|
|
DC323A-CEVAL BOARD FOR LTC1751 |
1,963 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | - | - | Boost | - | Board(s) | LTC1751 |
|

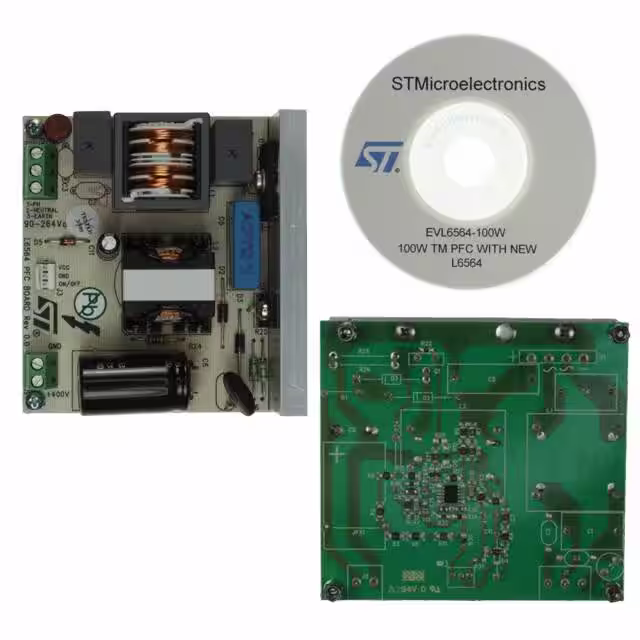

EVL6564-100WEVAL BOARD FOR L6564 |
2,779 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 100 W | 400V | - | 90 ~ 265 VAC | Boost | 40kHz | Board(s) | L6564 |
|
|
ISL8036CRSHEVAL1ZEVAL BOARD FOR ISL8036 |
3,008 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 1.8V | 6A | 2.85V ~ 6V | Buck | - | Board(s) | ISL8036 |
|
|
ISL8036DUALEVAL1ZEVAL BOARD FOR ISL8036 |
1,704 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 1.8V | 3A, 3A | 2.85V ~ 6V | Buck | - | Board(s) | ISL8036 |
|
UCC28230EVMEVAL BOARD FOR UCC28230 |
2,393 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 9.5V | 30A | 43V ~ 53V | Flyback | - | Board(s) | UCC28230 |
|
UCC28600EVMEVAL BOARD FOR UCC28600 |
2,495 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 120 W | 19.4V | 6.2A | 85 ~ 265 VAC | Flyback | - | Board(s) | UCC28600 |
|

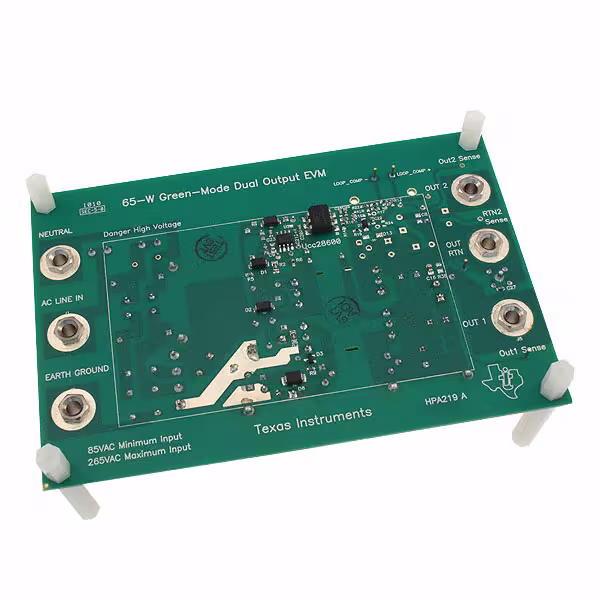

UCC28600EVM-65WEVAL BOARD FOR UCC28600 |
2,363 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 65 W | 18V | 3.6A | 85 ~ 265 VAC | Flyback | - | Board(s) | UCC28600 |
|
AS3701B-WL-ES_EK_STEVAL BOARD FOR AS3701 |
3,332 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | - | - | 2.7V ~ 5.5V | Buck | - | Board(s) | AS3701 |
|
|
MAX17500AEVKIT+EVAL BOARD FOR MAX17500A |
4,570 | - |
|
Datasheet | - | - | Obsolete | DC/DC Converter | 2 Isolated Outputs | - | 5V, 15V | 1.5A, 100mA | ±36V ~ 72V | Flyback | 350kHz | Board(s) | MAX17500A |
|
|
MAX17502EVKIT+EVAL BOARD FOR MAX17502 |
3,853 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | MAX17502 |
|
|
DC1749AEVAL BOARD FOR LT8610 |
4,559 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 3.8V ~ 42V | Buck | 700kHz | Board(s) | LT8610 |
|
DC230A-BEVAL BOARD FOR LT1533 |
2,233 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | 3.5 W | ±5V | 700mA | 10.8V ~ 14V | - | - | Board(s) | LT1533 |
|

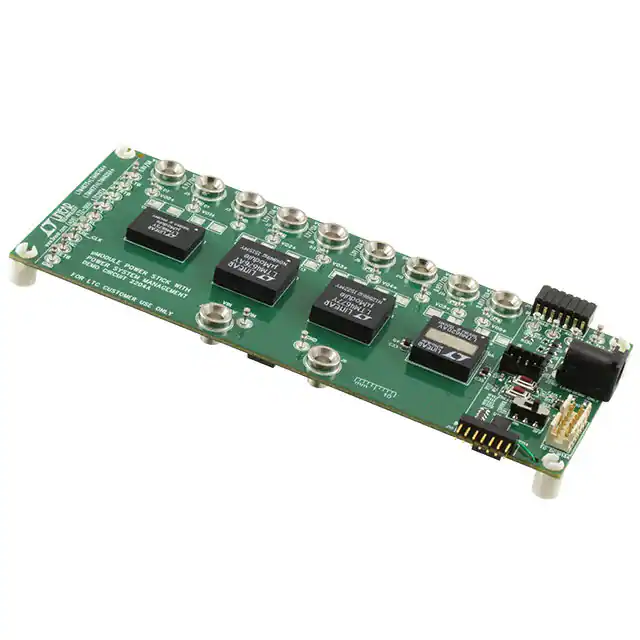

DC2204AEVAL BOARD FOR LTC2974 LTM4620A |
4,490 | - |
|
Datasheet | µModule® | Tray | Obsolete | DC/DC Converter | 7 Non-Isolated Outputs | - | 0.7V, 0.85V, 0.9V, 0.95V, 1V, 1.2V, 1.5V | 36A, 13A, 13A, 13A, 13A, 9A, 9A | 4.5V ~ 15V | - | - | Board(s) | LTC2974, LTM4620A, LTM4675, LTM4676A, LTM4677 |
|

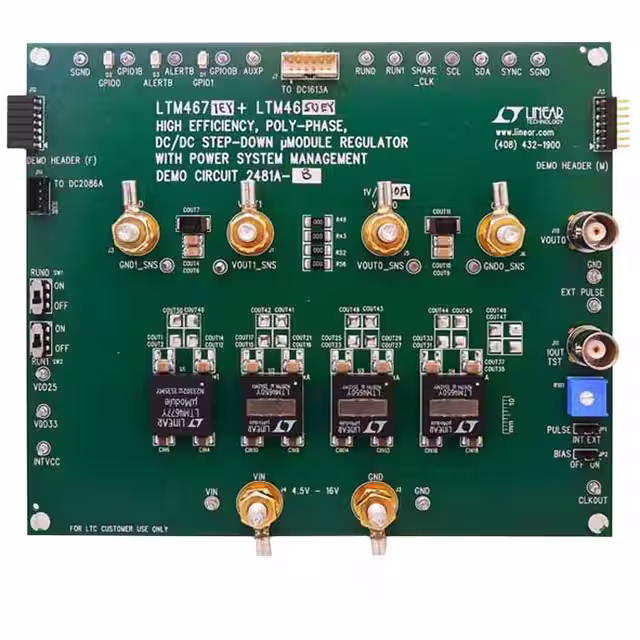

DC2481A-BEVAL BOARD FOR LTM4650 LTM4677 |
2,753 | - |
|
Datasheet | µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 186A | 4.5V ~ 16V | Buck | 425kHz | Board(s) | LTM4650, LTM4677 |
|
|
ADPL20502EVKIT#EVAL BOARD FOR ADPL20502 |
3,297 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.3V ~ 5.5V | 1A | 0.6V ~ 5.5V | Boost | - | Board(s) | ADPL20502 |
|

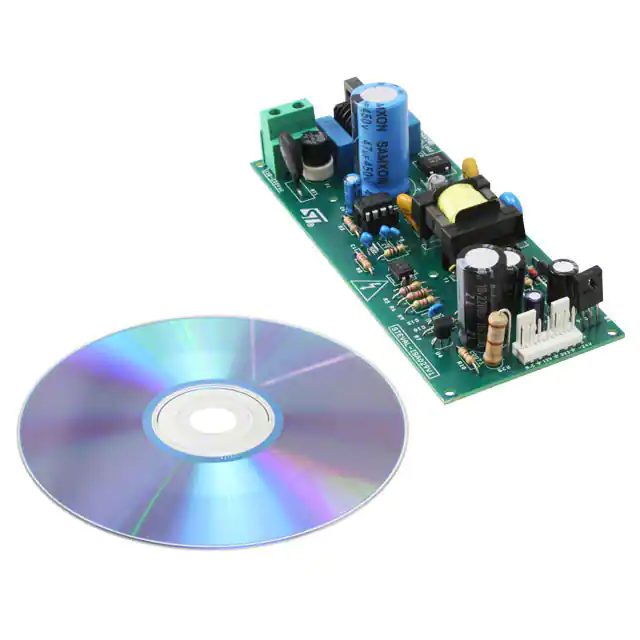

STEVAL-ISA029V1EVAL BOARD FOR VIPER53 |
3,223 | - |
|
Datasheet | VIPER™ | Box | Obsolete | AC/DC, Primary Side | 3 Isolated Outputs | 13 W | 3.3V, 12V, -24V | 1A, 100mA, 40mA | 85 ~ 300 VAC | Flyback | 60kHz | Board(s) | VIPer53 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
What DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components can I source from EGOO?
You can browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
