DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL8117A-LDEMO2ZEVAL BOARD FOR ISL8117A |
4,218 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 3A | 6.5V ~ 42V | Buck | 200kHz | Board(s) | ISL8117A |
|
|
ISL85033CRSHEVAL1ZEVAL BOARD FOR ISL85033 |
1,003 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 4.5V ~ 28V | Buck | 300kHz | Board(s) | ISL85033 |
|
|
LGA03C-EVAL-KITEVAL BOARD FOR LGA03C |
3,364 | - |
|
Datasheet | LGAC | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.59V ~ 5.1V | 3A | 3V ~ 14V | Buck | 1MHz | Board(s) | LGA03C |
|
|
LGA06C-EVAL-KITEVAL BOARD FOR LGA06C |
4,811 | - |
|
Datasheet | LGAC | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.59V ~ 5.1V | 6A | 3V ~ 14V | Buck | 1MHz | Board(s) | LGA06C |
|
|
LGA10C-EVAL-KITEVAL BOARD FOR LGA10C |
0 |
16+：$159.68250 |
|
Datasheet | LGAC | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.59V ~ 5.1V | 10A | 3V ~ 14V | Buck | 1MHz | Board(s) | LGA10C |
|
|
LGA20C-EVAL-KITEVAL BOARD FOR LGA20C |
1,381 | - |
|
Datasheet | LGAC | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.59V ~ 5.1V | 20A | 4.5V ~ 14V | Buck | 800kHz | Board(s) | LGA20C |
|
|
MAX15022EVKIT+EVAL BOARD FOR MAX15022 |
3,019 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1.2V, 1.5V, 2.5V, 3.3V | 4A, 2A, 500mA, 500mA | 4.5V ~ 5.5V | Buck | 2MHz | Board(s) | MAX15022 |
|
STEVAL-ISA057V1EVAL BOARD L6565 STC03DE220HV |
1,952 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 125V ~ 1250V | Buck | 30kHz | Board(s) | L6565, STC03DE220HV |
|

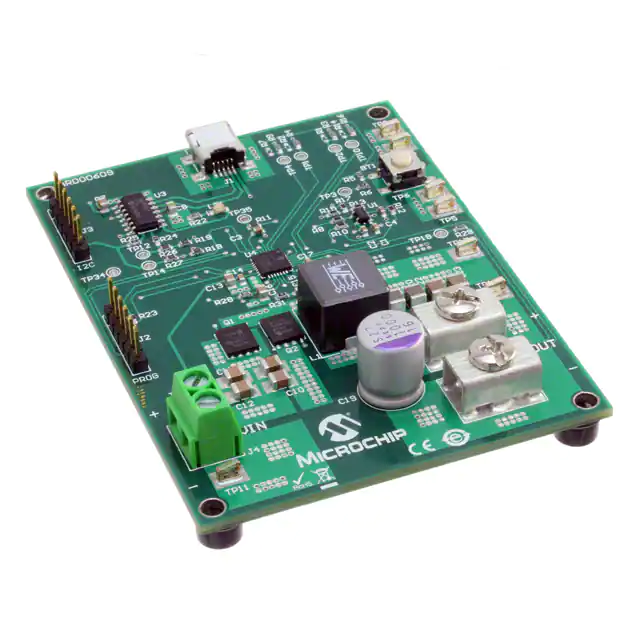

ARD00609EVAL BOARD FOR MCP19111 |
3,702 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 20A | 8V ~ 14V | Buck | 500kHz | Board(s) | MCP19111 |
|

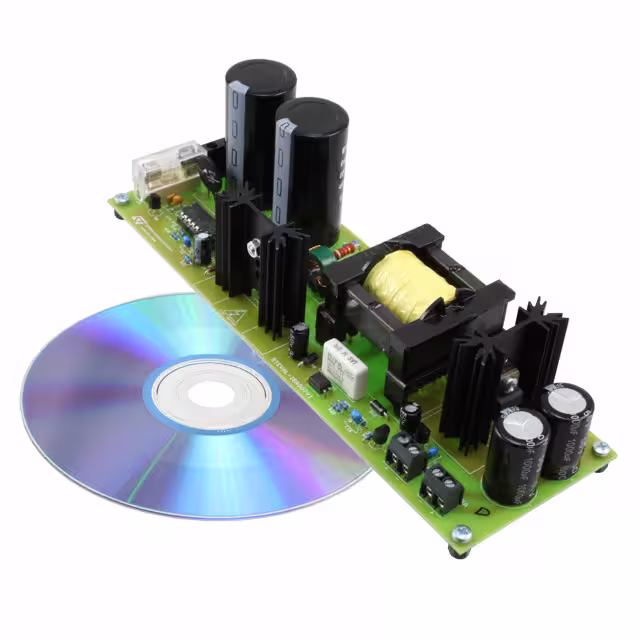

STEVAL-ISA007V1EVAL BOARD FOR L5991 STC08DE150 |
3,656 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 150 W | 5V, 24V | 6.25A, 75mA | - | Flyback | 90kHz | Board(s) | L5991, STC08DE150 |
|

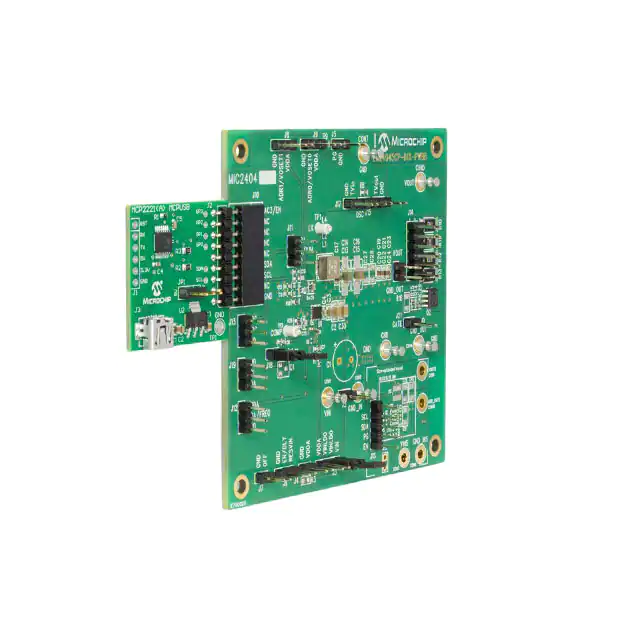

ADM00764EVAL BOARD FOR MIC2404X |
2,175 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.64V ~ 5.25V | 5A | 4.5V ~ 19V | Buck | - | Board(s), Cable(s) | MIC2404x |
|
|
MAX774EVKITEVAL BOARD MAX774 MAX775 MAX776 |
2,907 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 1A | 5V | Inverting | 300kHz | Board(s) | MAX774, MAX775, MAX776 |
|
|
MAX15035EVKIT+EVAL BOARD FOR MAX15035 |
3,009 | - |
|
Datasheet | Quick-PWM™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 15A | 4.5V ~ 26V | Buck | - | Board(s) | MAX15035 |
|
|
ISL6522EVAL1EVAL BOARD FOR ISL6522 |
1,325 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | - | - | - | - | 10.8V ~ 13.2V | Buck | - | Board(s) | ISL6522 |
|
|
STR-FAN65008B-GEVBEVAL BOARD FOR FAN65008B |
4,598 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 4.57V ~ 5.25V | 10A | 4.5V ~ 65V | Buck | - | Board(s) | FAN65008B |
|
|
STR-FAN65005A-GEVBEVAL BOARD FOR FAN65005A |
2,015 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 4.57V ~ 5.25V | 8A | 4.5V ~ 65V | Buck | - | Board(s) | FAN65005A |
|
|
STR-FAN65004B-GEVBEVAL BOARD FOR FAN65004B |
3,280 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 4.57V ~ 5.25V | 6A | 4.5V ~ 65V | Buck | - | Board(s) | FAN65004B |
|
IS6607A EVALUATION MODULE KITEVAL BOARD FOR IS6607A |
1,359 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 20A | 3.5V ~ 16V | Buck | - | Board(s) | IS6607A |
|

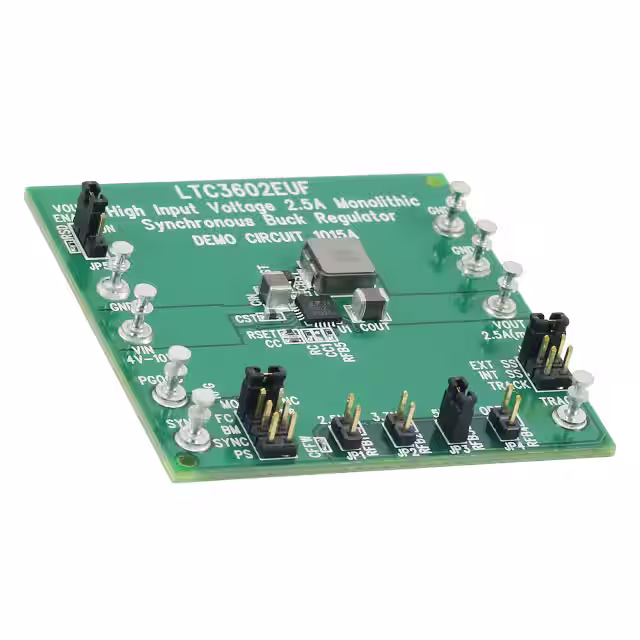

DC1015AEVAL BOARD FOR LTC3602 |
3,952 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V or 5V | 2.5A | 4.5V ~ 10V | Buck | 1MHz | Board(s) | LTC3602 |
|
DC767AEVAL BOARD FOR LTC3447 |
2,686 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.35V | 600mA | 2.5V ~ 5.5V | Buck | 1MHz | Board(s) | LTC3447 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
What DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components can I source from EGOO?
You can browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
