DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

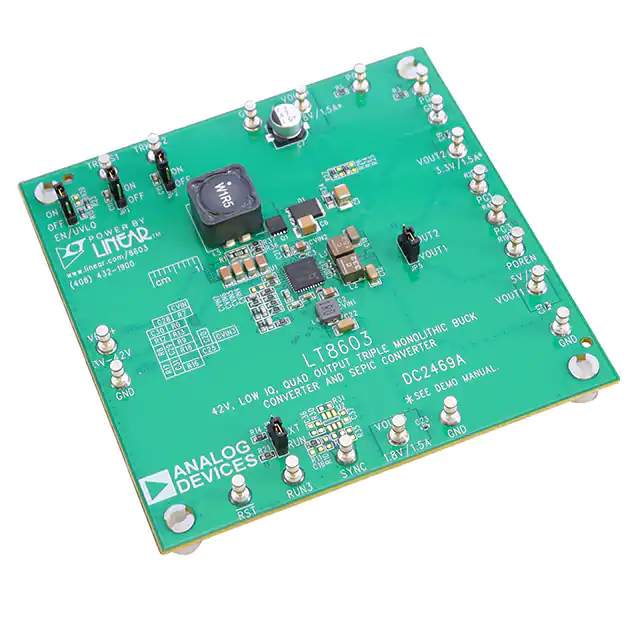

DC2469AEVAL BOARD FOR LT8603 |
2,540 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 4 Non-Isolated Outputs | - | 1.8V, 3.3V, 5V, 8V | 2.5A, 1.8A, 1.5A. 1A | 3V ~ 42V | Boost, Buck | - | Board(s) | LT8603 |
|

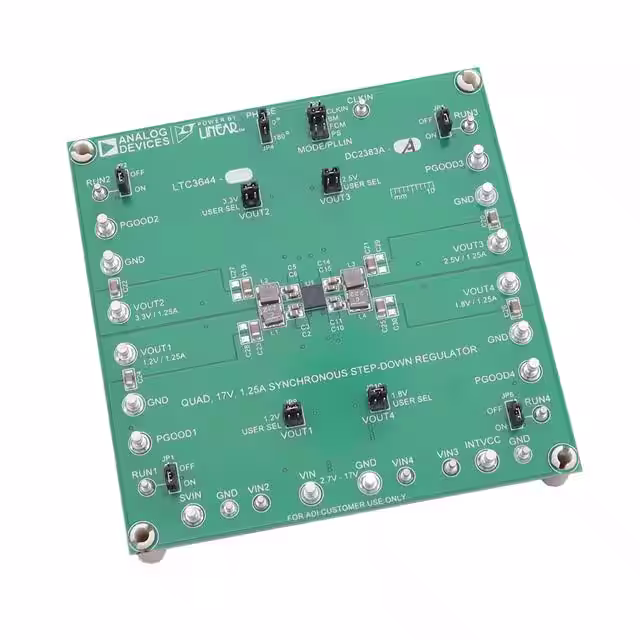

DC2383A-AEVAL BOARD FOR LTC3644 |
1,070 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.5V, 3.3V | 5A, 3.75A, 2.5A, 1.25A | 2.7V ~ 17V | Buck | 1MHz | Board(s) | LTC3644 |
|

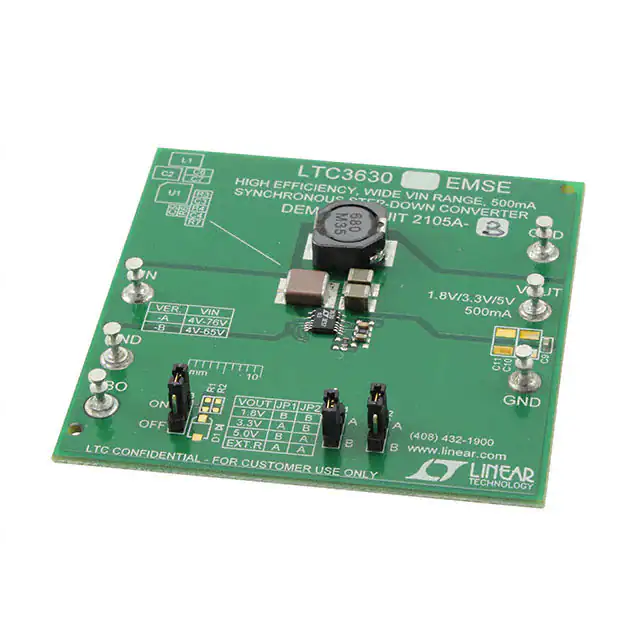

DC2105A-BEVAL BOARD FOR LTC3630 |
4,731 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 500mA | 4V ~ 65V | Buck | - | Board(s) | LTC3630 |
|
MAX20406EVKIT#EVAL BOARD FOR MAX20406 |
1,395 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 3V ~ 36V | Buck | 2.1MHz | Board(s) | MAX20406 |
|
STEVAL-ISA142V1EVAL BOARD FOR L6564 |
2,014 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 50 W | 24V | 2.1A | 90 ~ 265 VAC | Flyback | 44kHz | Board(s) | L6564 |
|
DC2951AEVAL BOARD FOR LTC7806 |
2,980 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 10A | 6V ~ 36V | Boost | 350kHz | Board(s) | LTC7806 |
|

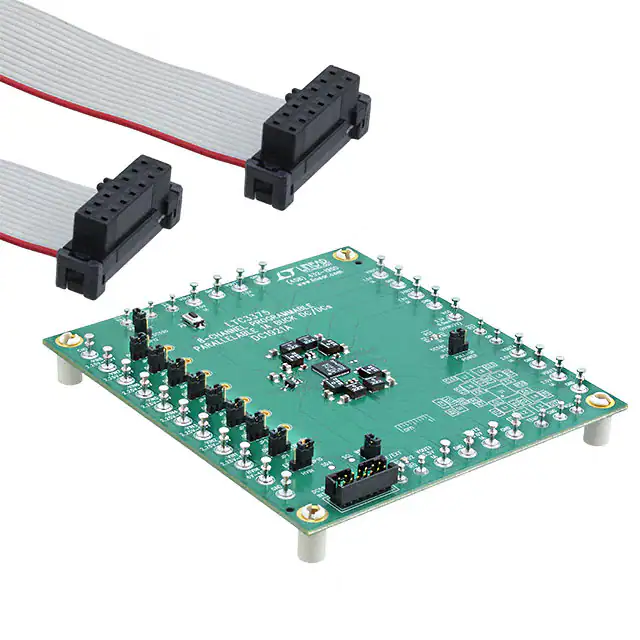

DC1921AEVAL BOARD FOR LTC3375 |
3,857 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 8 Non-Isolated Outputs | - | 1V, 1.2V, 1.5V, 1.8V, 2V, 2.5V, 3V, 3.3V | 1A, 1A, 1A, 1A, 1A, 1A, 1A, 1A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3375 |
|

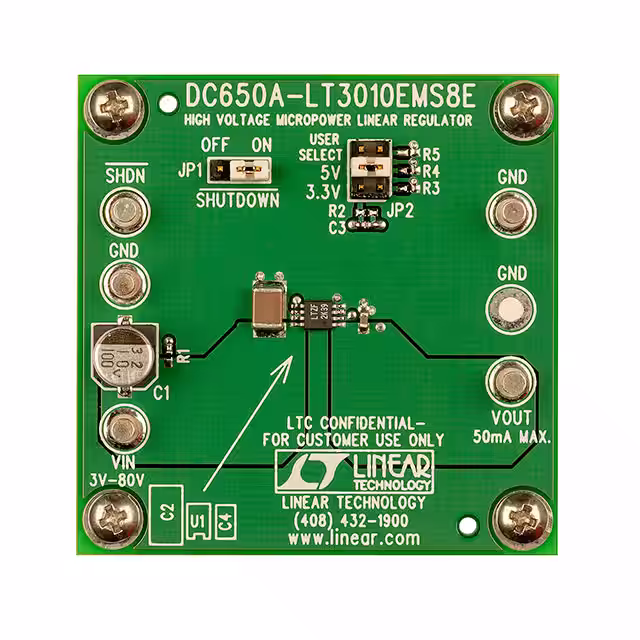

DC650AEVAL BOARD FOR LT3010 |
4,231 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.22V ~ 60V | 50mA | 3V ~ 80V | Buck | - | Board(s) | LT3010 |
|
I7C20A-C03-EVK-S1EVAL BOARD FOR I7C2W020A050V |
3,131 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 300 W | 8V ~ 24V | 20A | 9V ~ 36V | Buck-Boost | - | Board(s) | - |
|

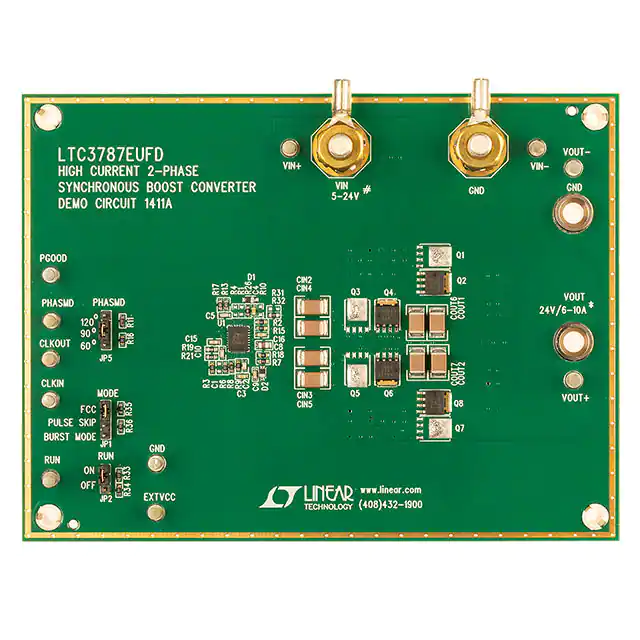

DC1411AEVAL BOARD FOR LTC3787 |
1,347 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 16A | 5V ~ 24V | Boost | 350kHz | Board(s) | LTC3787 |
|

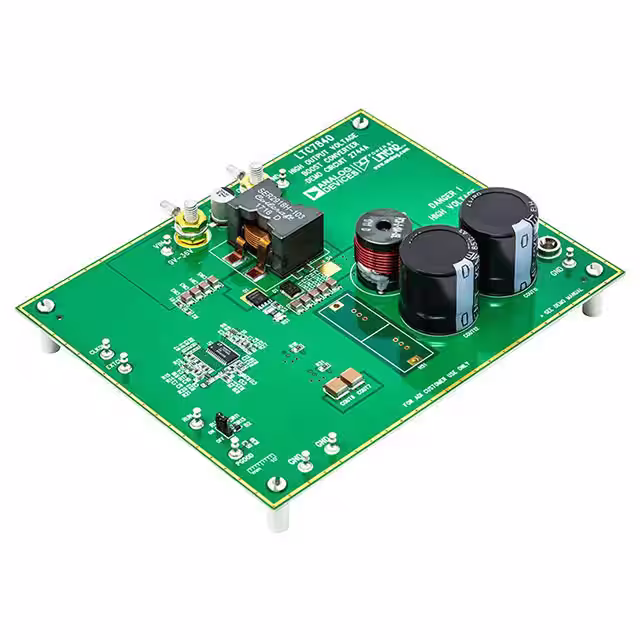

DC2744AEVAL BOARD FOR LTC7840 |
3,446 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 240V | 700mA | 9V ~ 36V | Boost | 150kHz | Board(s) | LTC7840 |
|

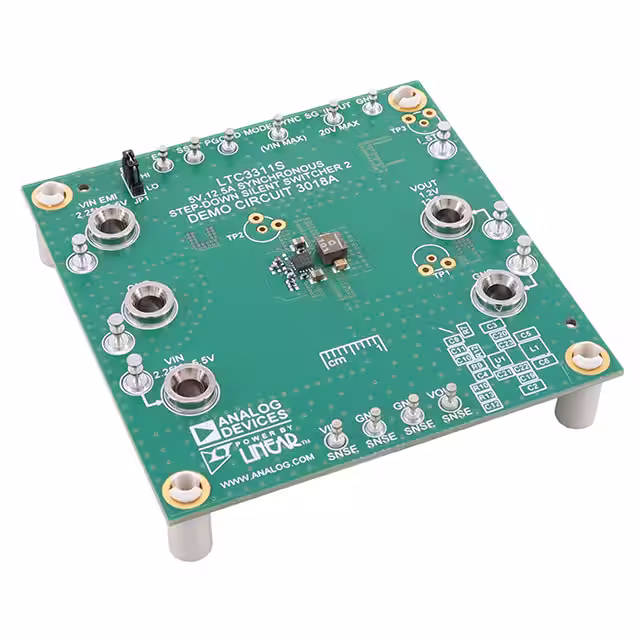

DC3018AEVAL BOARD FOR LTC3311S |
2,036 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.176V ~ 1.224V | 12.5A | 3V | Buck | 2.2MHz | Board(s) | LTC3311S |
|

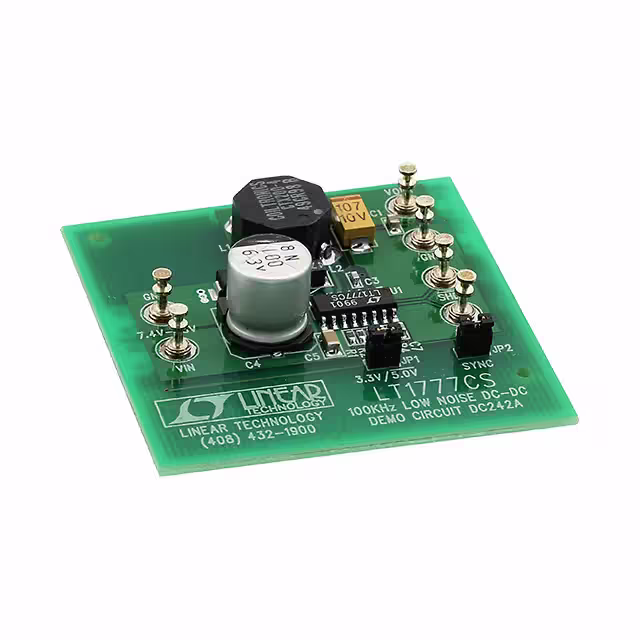

DC242AEVAL BOARD FOR LT1777 |
2,844 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 500mA | 7.4V ~ 48V | Buck | 100kHz | Board(s) | LT1777 |
|
DC938AEVAL BOARD FOR LTC3530 |
4,576 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | LTC3530 |
|
DC1247AEVAL BOARD FOR LT3582 |
3,083 | - |
|
Datasheet | - | Box | Active | DC/DC, Positive and Negative | 1 Non-Isolated Output | - | 3.2V ~ 12.775V, -1.2V ~ -13.95V | - | 2.7V ~ 5.5V | Inverting | - | Board(s) | LT3582 |
|
DC1641AEVAL BOARD FOR LTC3786 |
4,775 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 5A | 5V ~ 24V | Boost | 350kHz | Board(s) | LTC3786 |
|
DC1504AEVAL BOARD FOR LT4180 |
2,165 | - |
|
Datasheet | Virtual Remote Sense™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 8V ~ 36V | Buck | 500kHz | Board(s) | LT4180 |
|
DC1516A-BEVAL BOARD FOR LTC3833 |
1,785 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 15A | 4.5V ~ 24V | Buck | 300kHz | Board(s) | LTC3833 |
|
DC613AEVAL BOARD FOR LT3435 |
1,428 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 6.75V ~ 28V | Buck | 500kHz | Board(s) | LT3435 |
|
DC1286A-AEVAL BOARD FOR LTC3862 |
4,786 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 5A | 5V ~ 36V | Boost | 200kHz | Board(s) | LTC3862 |
