DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

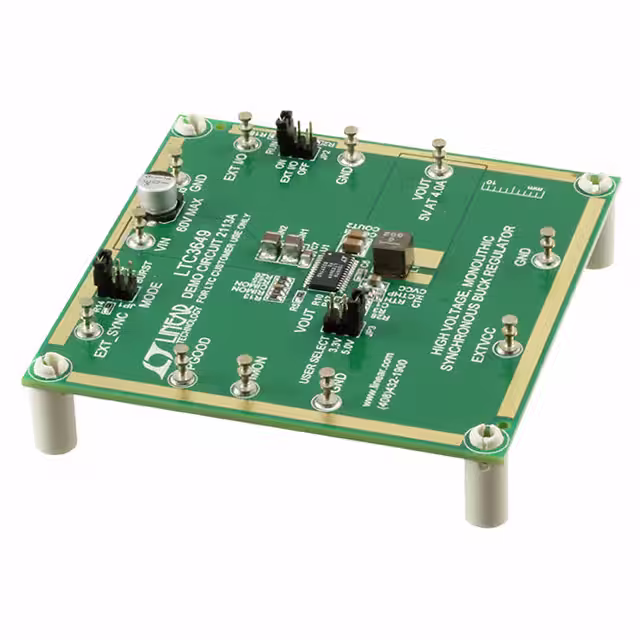

DC2113AEVAL BOARD FOR LTC3649 |
2,649 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 4A | 4V ~ 60V | Buck | 500kHz | Board(s) | LTC3649 |
|
DC1687BEVAL BOARD FOR LTC31151 |
3,442 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 2A | 2.7V ~ 40V | Buck-Boost | 1MHz | Board(s) | LTC3115-1 |
|

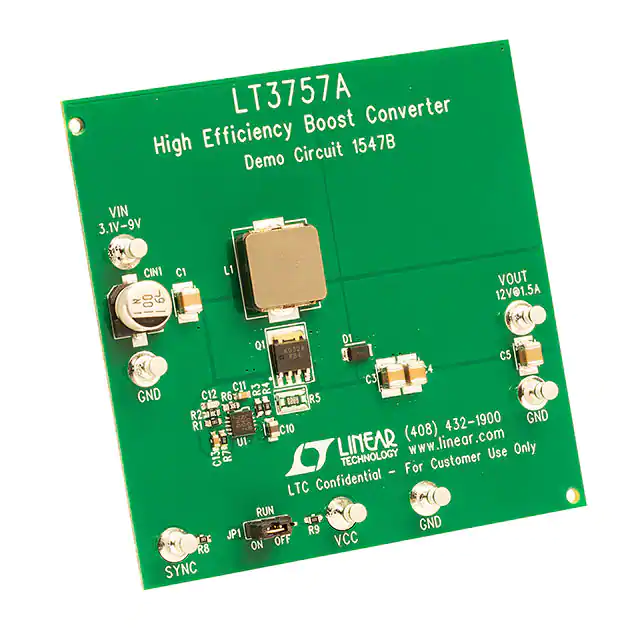

DC1547BEVAL BOARD FOR LT3757 |
1,965 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1.5A | 3.1V ~ 9V | Boost | 400kHz | Board(s) | LT3757 |
|

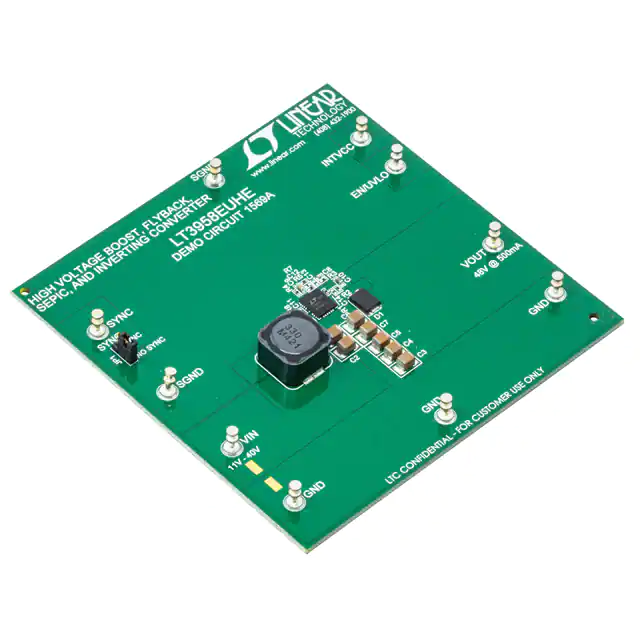

DC1569AEVAL BOARD FOR LT3958 |
3,603 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 500mA | 11V ~ 40V | Boost | 300kHz | Board(s) | LT3958 |
|

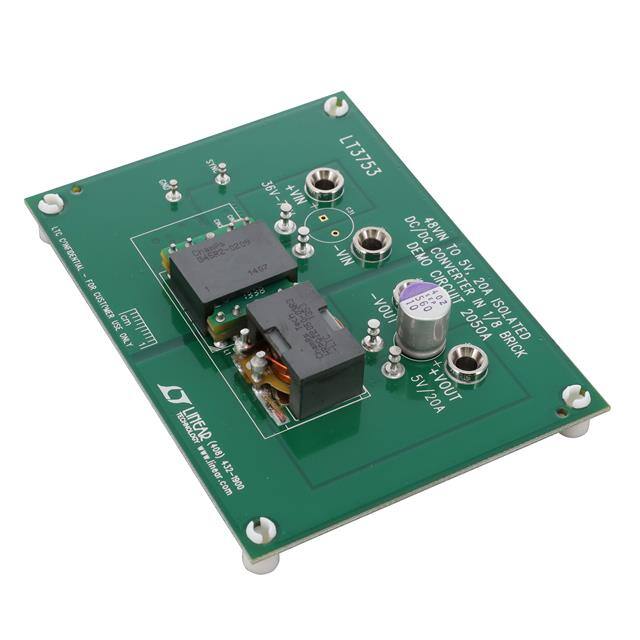

DC2050AEVAL BOARD FOR LT3753 |
2,379 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | - | 5V | 20A | 36V ~ 72V | Forward Converter | 250kHz | Board(s) | LT3753 |
|

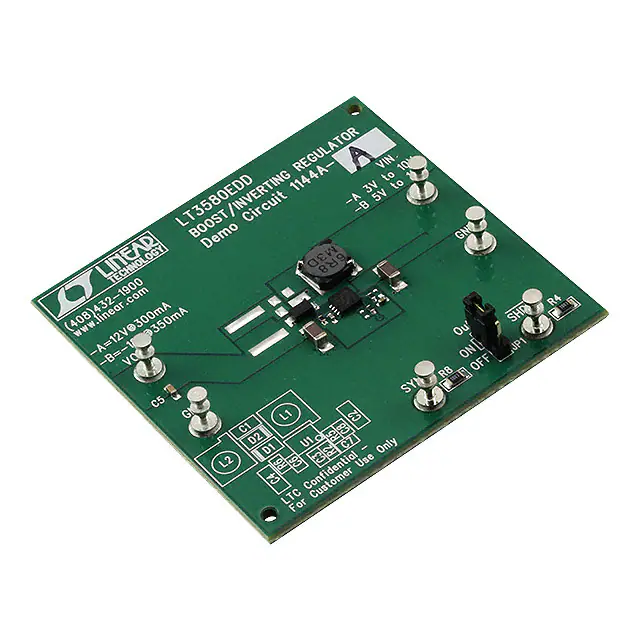

DC1144A-AEVAL BOARD FOR LT3580 |
4,705 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 300mA | 3V ~ 10V | Boost | 1MHz | Board(s) | LT3580 |
|
DC1144A-BEVAL BOARD FOR LT3580 |
4,490 | - |
|
Datasheet | - | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 350mA | 5V ~ 12V | Inverting | 2MHz | Board(s) | LT3580 |
|

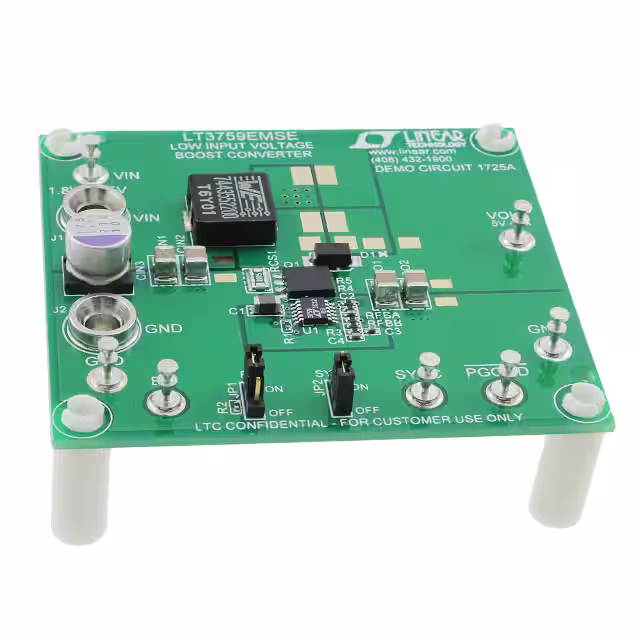

DC1725AEVAL BOARD FOR LT3759 |
3,335 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 2A | 1.8V ~ 4.5V | Boost | 485kHz | Board(s) | LT3759 |
|

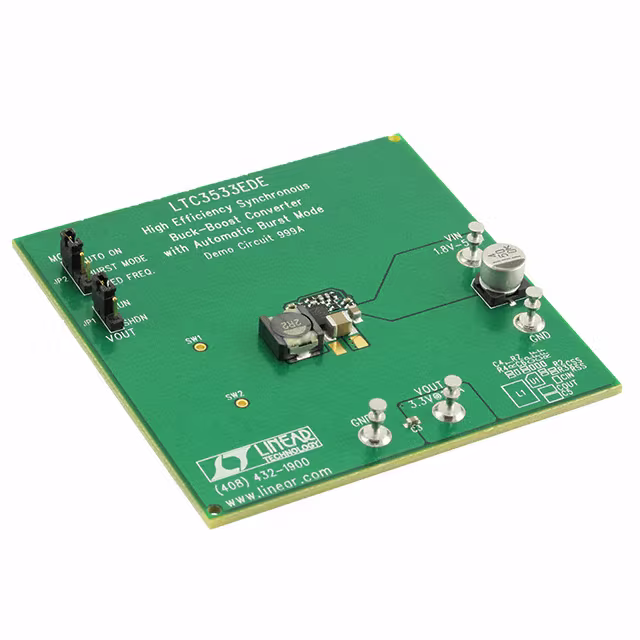

DC999AEVAL BOARD FOR LTC3533 |
2,206 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 1.8V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | LTC3533 |
|
DC1672AEVAL BOARD FOR LTC3816 |
4,024 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V | 25A | 4.5V ~ 28V | Buck | 400kHz | Board(s) | LTC3816 |
|

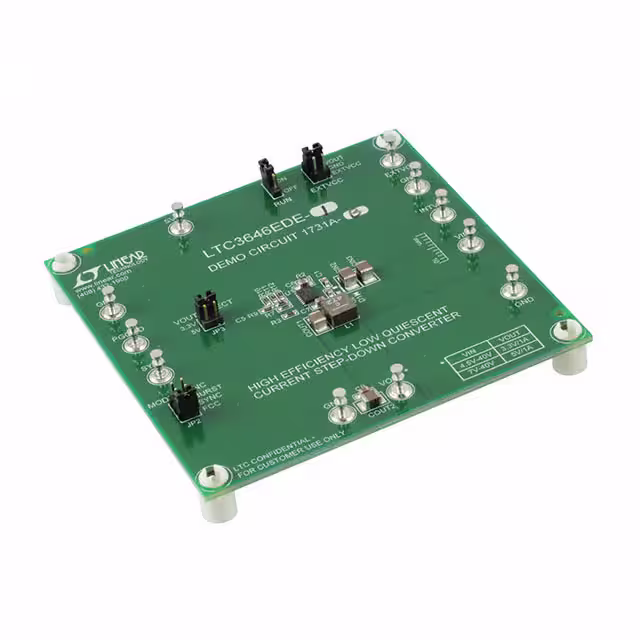

DC1731A-BEVAL BOARD FOR LTC36461 |
4,505 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 4V ~ 40V | Buck | 1.5MHz | Board(s) | LTC3646-1 |
|

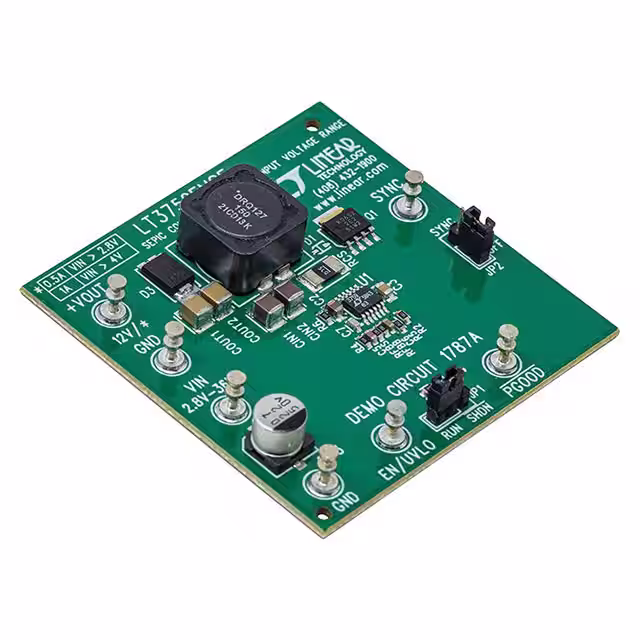

DC1787AEVAL BOARD FOR LT3759 |
1,454 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 1A | 2.8V ~ 36V | Boost, Inverting, SEPIC | 300kHz | Board(s) | LT3759 |
|

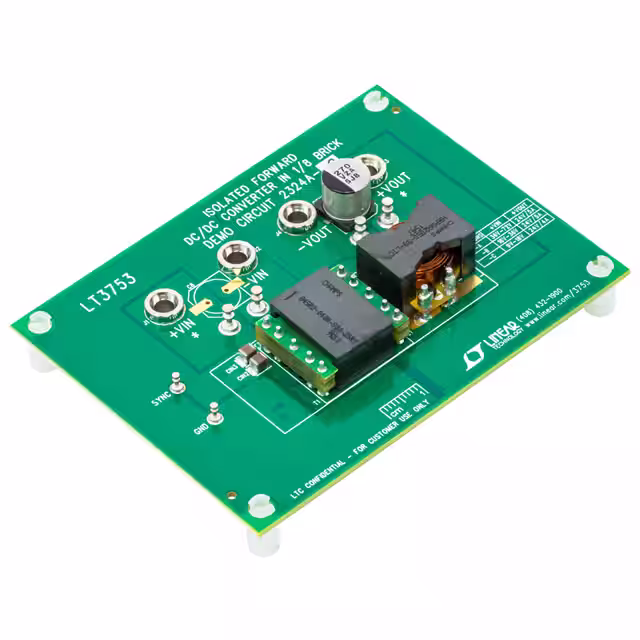

DC2324A-CEVAL BOARD FOR LT3753 |
4,756 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 24V | 5A | 9V ~ 18V | Forward Converter | 240kHz | Board(s) | LT3753 |
|

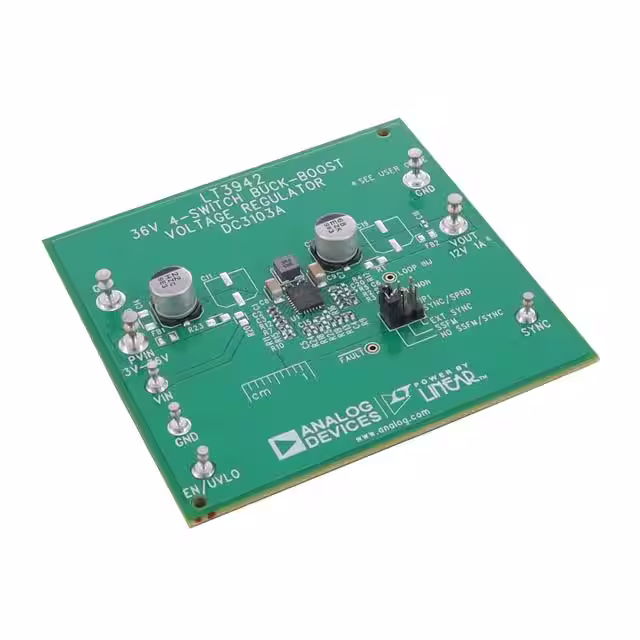

DC3103AEVAL BOARD FOR LT3942 |
2,419 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 1A | 3V ~ 36V | Buck-Boost | 2MHz | Board(s) | LT3942 |
|

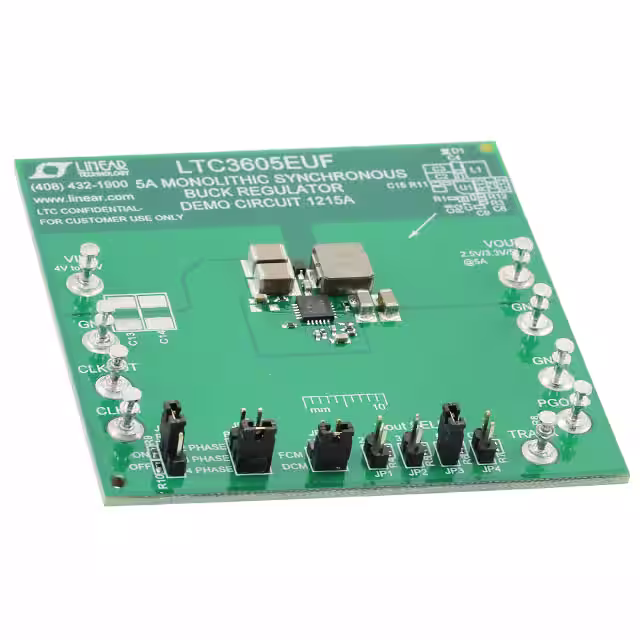

DC1215AEVAL BOARD FOR LTC3605 |
3,828 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V or 5V | 5A | 4V ~ 15V | Buck | 1MHz | Board(s) | LTC3605 |
|

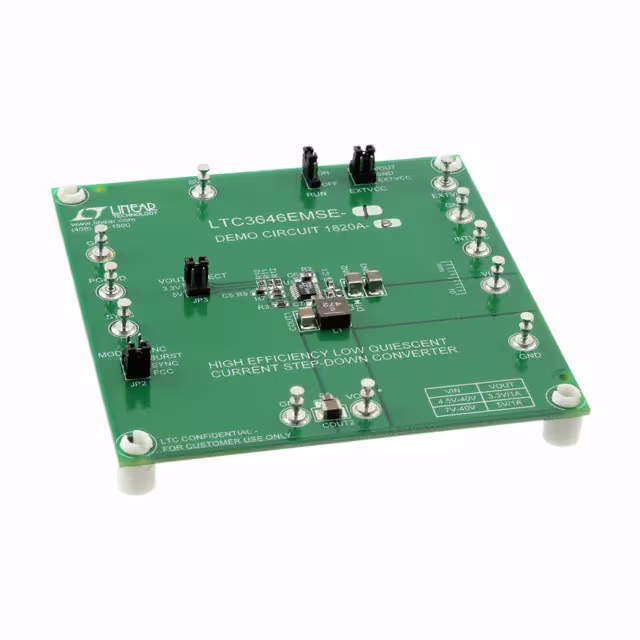

DC1820A-BEVAL BOARD FOR LTC36461 |
1,196 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 4V ~ 40V | Buck | 1.5MHz | Board(s) | LTC3646-1 |
|
DC2010AEVAL BOARD FOR LT8612 |
1,496 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 5.8V ~ 42V | Buck | 700kHz | Board(s) | LT8612 |
|

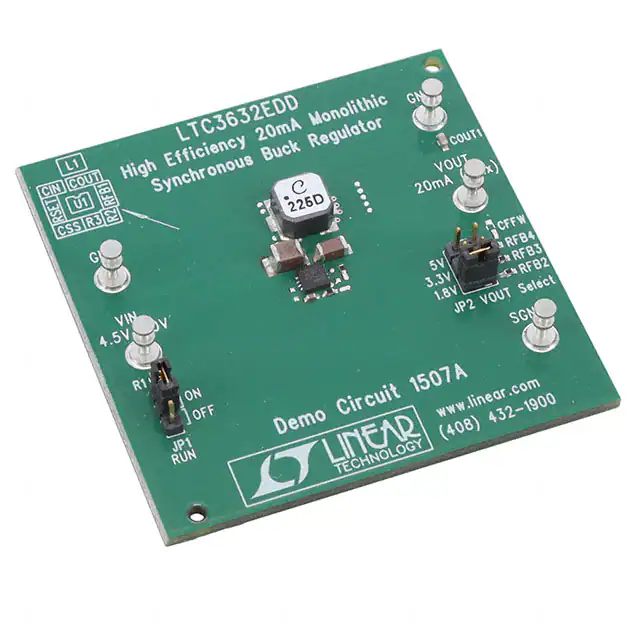

DC1507AEVAL BOARD FOR LTC3632 |
2,890 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 20mA | 4.5V ~ 50V | Buck | 60kHz | Board(s) | LTC3632 |
|

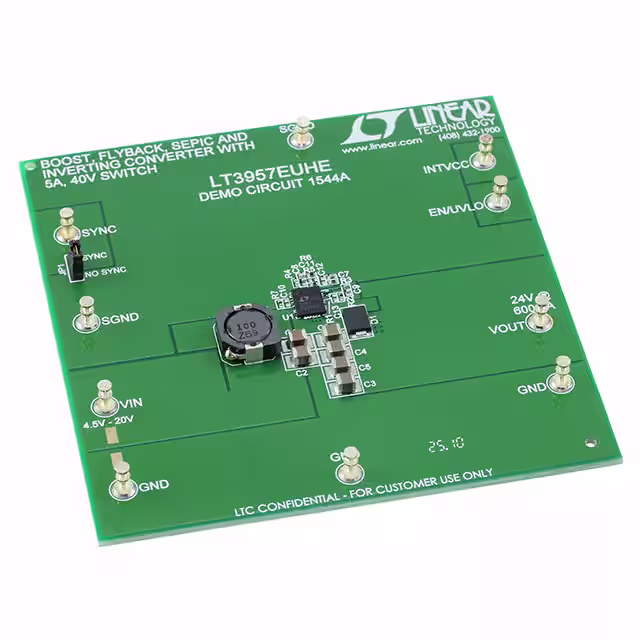

DC1544AEVAL BOARD FOR LT3957 |
4,966 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 24V | 600mA | 4.5V ~ 20V | Boost | 300kHz | Board(s) | LT3957 |
|

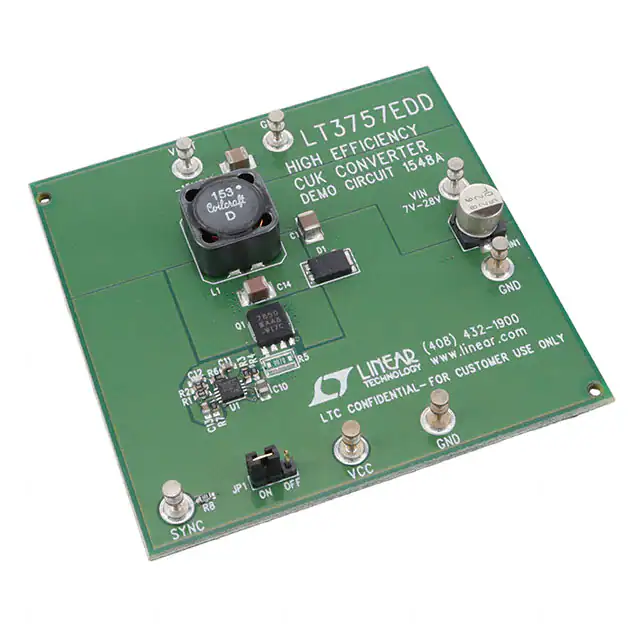

DC1548AEVAL BOARD FOR LT3757 |
3,159 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | -15V | 1A | 7V ~ 28V | Inverting | 300kHz | Board(s) | LT3757 |
