DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

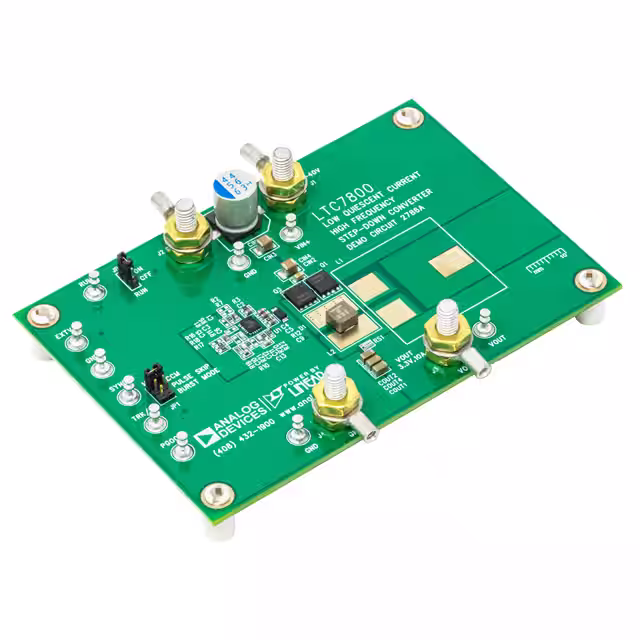

DC2786AEVAL BOARD FOR LTC7800 |
2,544 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 4V ~ 60V | Buck | - | Board(s) | LTC7800 |
|

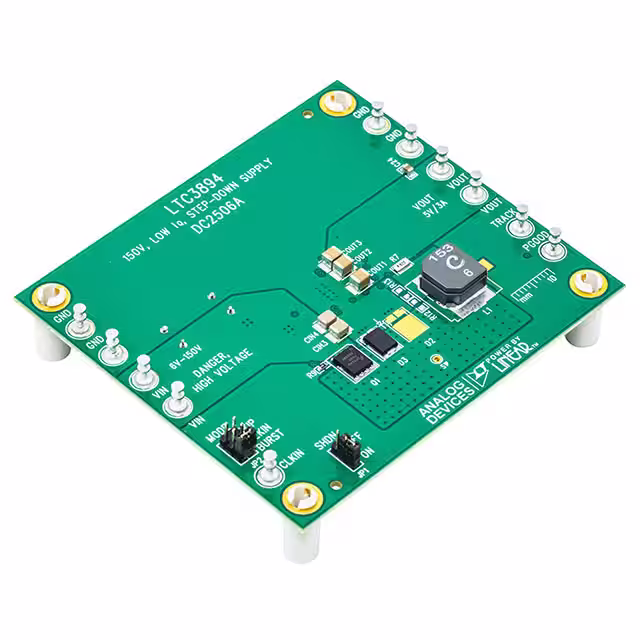

DC2506AEVAL BOARD FOR LTC3894 |
1,629 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 6V ~ 150V | Buck | 150kHz | Board(s) | LTC3894 |
|

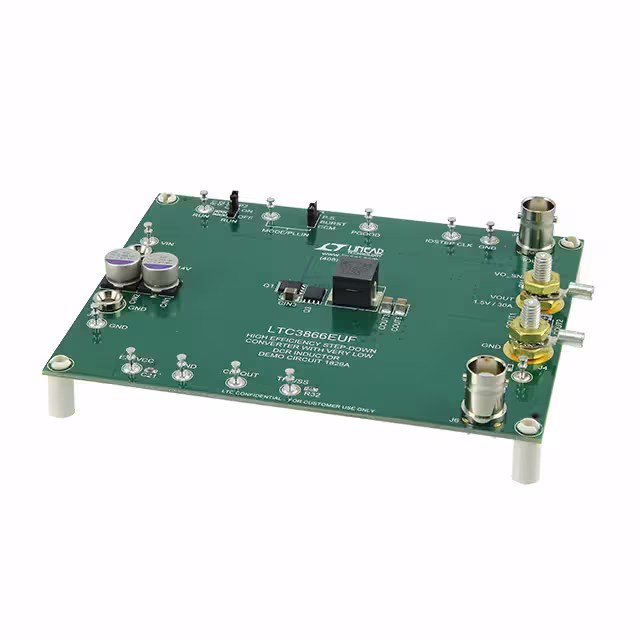

DC1829AEVAL BOARD FOR LTC3866 |
2,973 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 30A | 4.5V ~ 14V | Buck | 400kHz | Board(s) | LTC3866 |
|

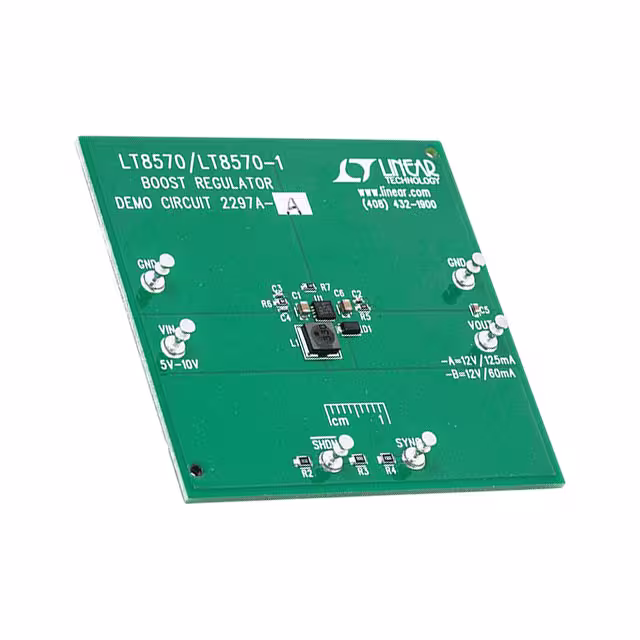

DC2297A-BEVAL BOARD FOR LT8570 LT85701 |
3,220 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V, 12V | 60mA, 125mA | 5V ~ 10V | Boost | 1.5MHz | Board(s) | LT8570, LT8570-1 |
|

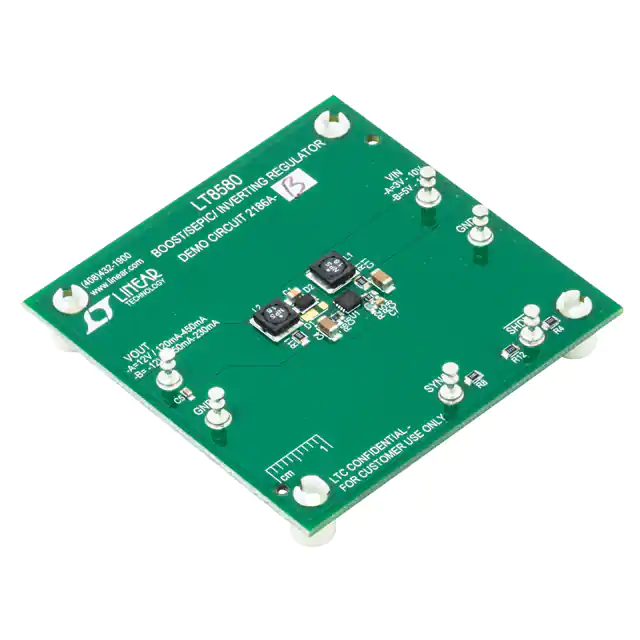

DC2186A-AEVAL BOARD FOR LT8580 |
2,181 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 120mA | 3V ~ 10V | Boost | 1.5MHz | Board(s) | LT8580 |
|

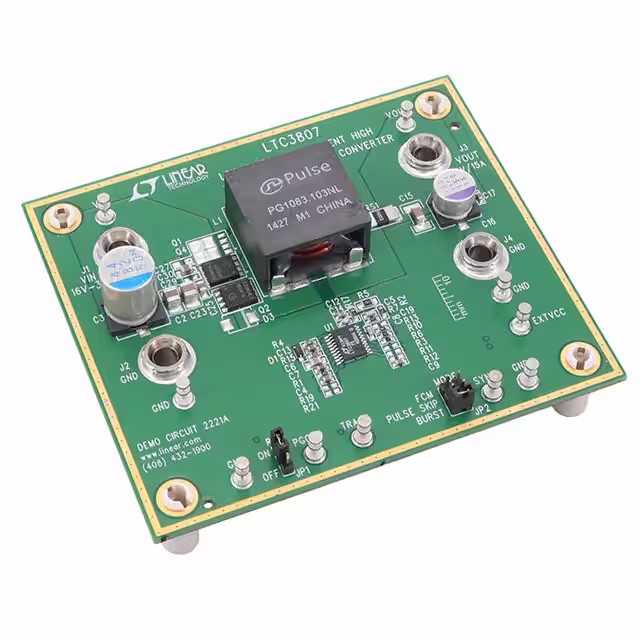

DC2221AEVAL BOARD FOR LTC3807EFE |
2,608 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 15A | 16V ~ 38V | Buck | 120kHz | Board(s) | LTC3807EFE |
|

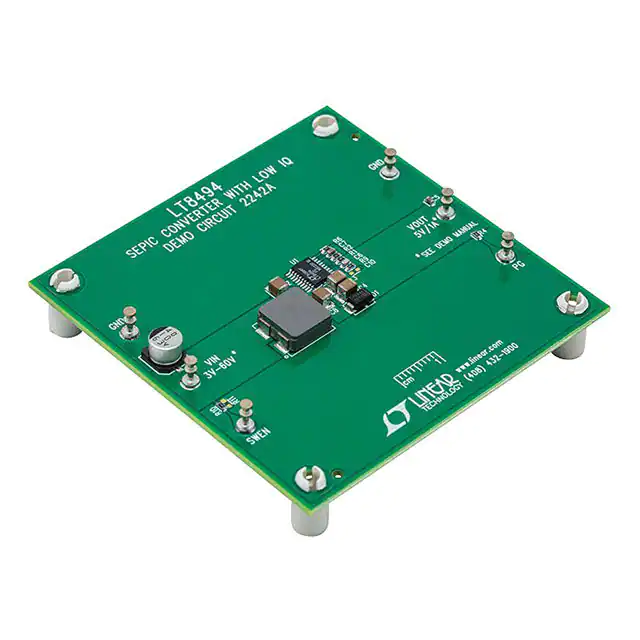

DC2242AEVAL BOARD FOR LT8494 |
4,125 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1A | 3V ~ 60V | Boost | 450kHz | Board(s) | LT8494 |
|

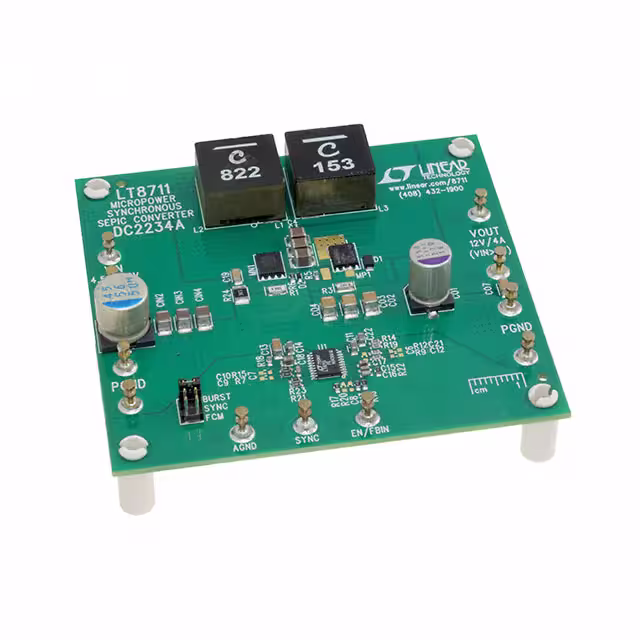

DC2234AEVAL BOARD FOR LT8711 |
4,820 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 4A | 4.5V ~ 40V | Boost, SEPIC | 200kHz | Board(s) | LT8711 |
|

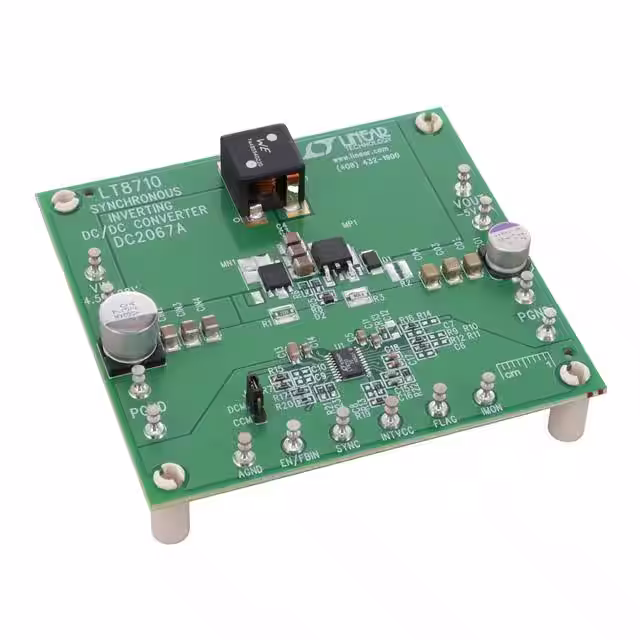

DC2067AEVAL BOARD FOR LT8710 |
4,245 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | -5V | 6A | 4.5V ~ 28V | Inverting | 300kHz | Board(s) | LT8710 |
|
EVAL-LT8357-AZEVAL BOARD FOR LT8357 |
2,212 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 2A, 1A | 4.5V ~ 20V | Boost | 200kHz | Board(s) | LT8357 |
|
|
EVAL-LT8333-AZEVAL BOARD FOR LT8333 |
1,682 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 12V | 1.25A, 1.1A, 1A | 3V ~ 26V | Boost, Inverting, SEPTIC | 2MHz | Board(s) | LT8333 |
|

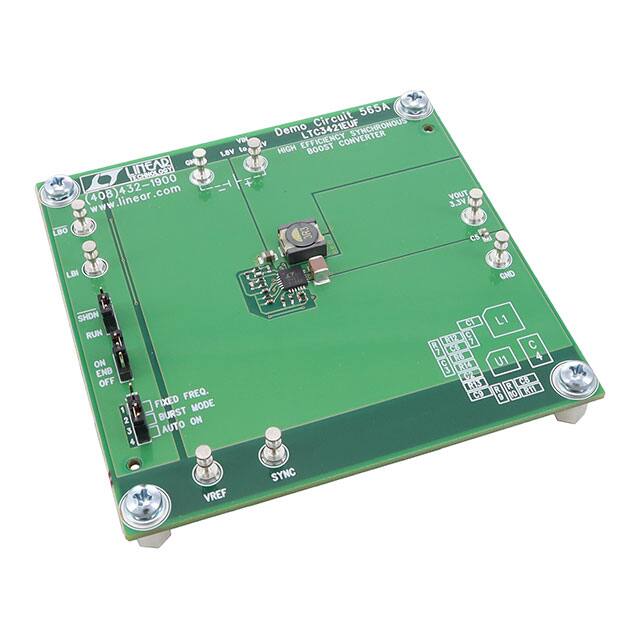

DC565AEVAL BOARD FOR LT3421 |
3,805 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 1A | 1.8V ~ 3.2V | Boost | 1MHz | Board(s) | LT3421 |
|

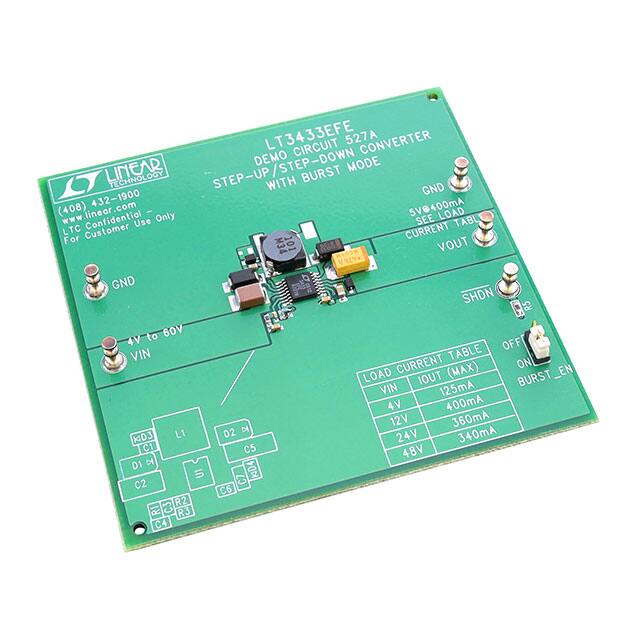

DC527AEVAL BOARD FOR LT3433 |
2,765 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 400mA | 4V ~ 60V | Buck | 200kHz | Board(s) | LT3433 |
|

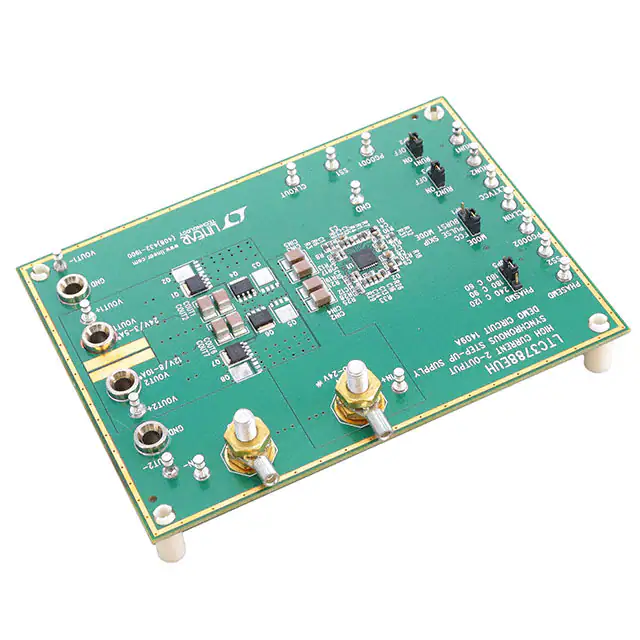

DC1409AEVAL BOARD FOR LTC3788 |
2,677 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 12V, 24V | 3A, 8A | 5V ~ 24V | Boost | 350kHz | Board(s) | LTC3788 |
|

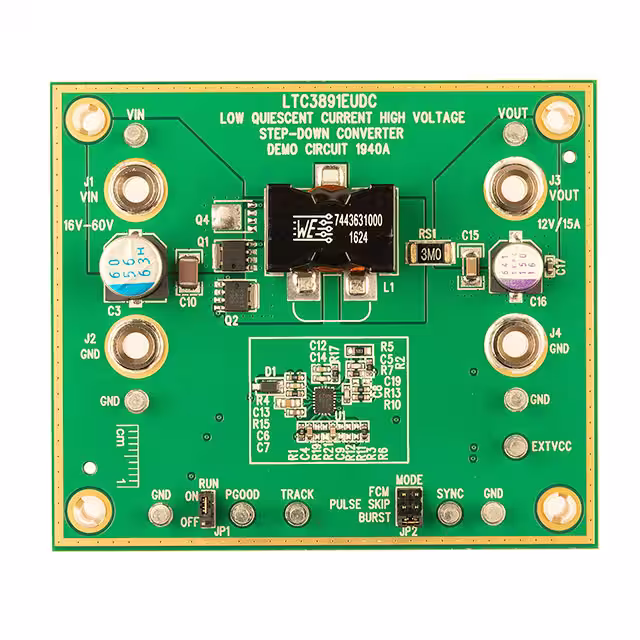

DC1940AEVAL BOARD FOR LTC3891 |
3,341 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 15A | 16V ~ 60V | Buck | 125kHz | Board(s) | LTC3891 |
|

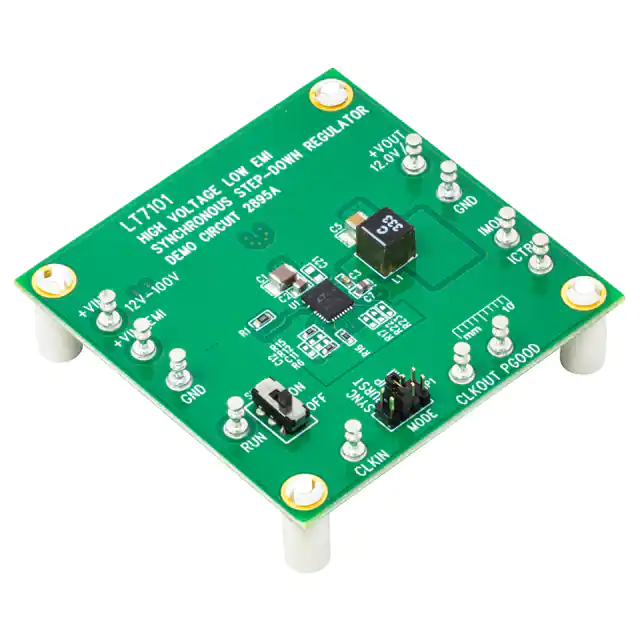

DC2895AEVAL BOARD FOR LT7101 |
3,674 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 1A | 12V ~ 100V | Buck | 400kHz | Board(s) | LT7101 |
|

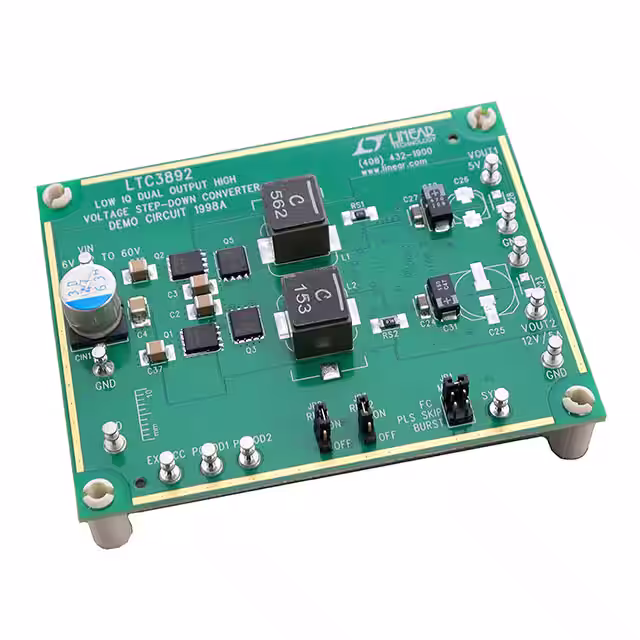

DC1998AEVAL BOARD FOR LTC3892 |
1,648 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 12V | 8A, 5A | 6V ~ 60V | Buck | 200kHz | Board(s) | LTC3892 |
|
STEVAL-ISA138V1EVAL BOARD FOR L6563H L6699 |
3,345 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | 90 W | 19V | 4.75A | 90 ~ 264 VAC | Flyback | - | Board(s) | L6563H, L6699 |
|

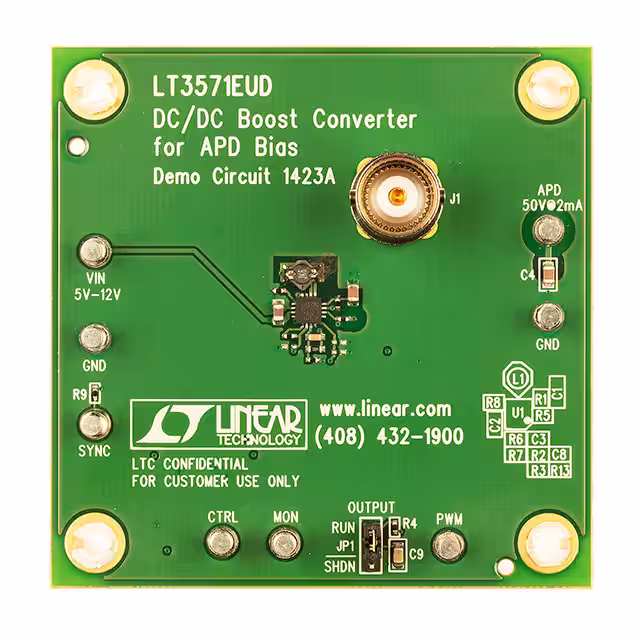

DC1423AEVAL BOARD FOR LT3571 |
4,659 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 50V | 2mA | 5V ~ 12V | Boost | 2MHz | Board(s) | LT3571 |
|
|
ISL78264EVAL1ZEVAL BOARD FOR ISL78264 |
2,959 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.8V ~ 5V, 0.8V ~ 32V | - | 3.75V ~ 42V | Buck | - | Board(s) | ISL78264 |
