DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

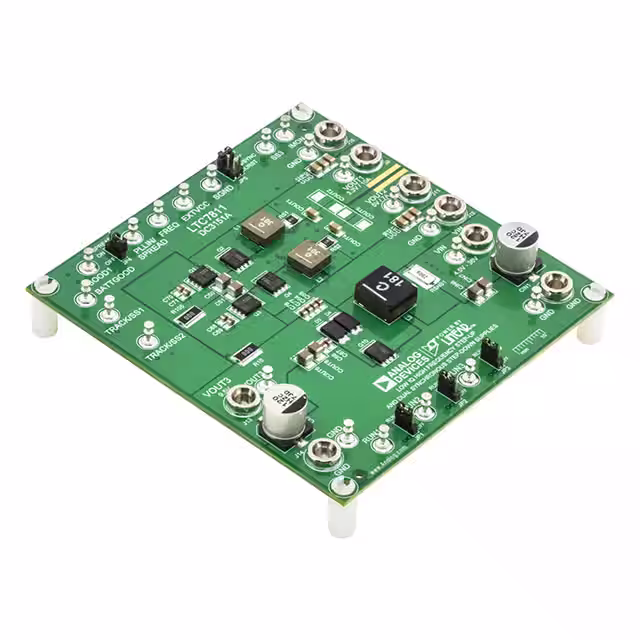

DC3151AEVAL BOARD FOR LTC7811 |
4,946 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 3.3V, 5V, 9.5V | 10A, 7A, 7A | 4.5V ~ 36V | Boost, Buck | 2.2MHz | Board(s) | LTC7811 |
|

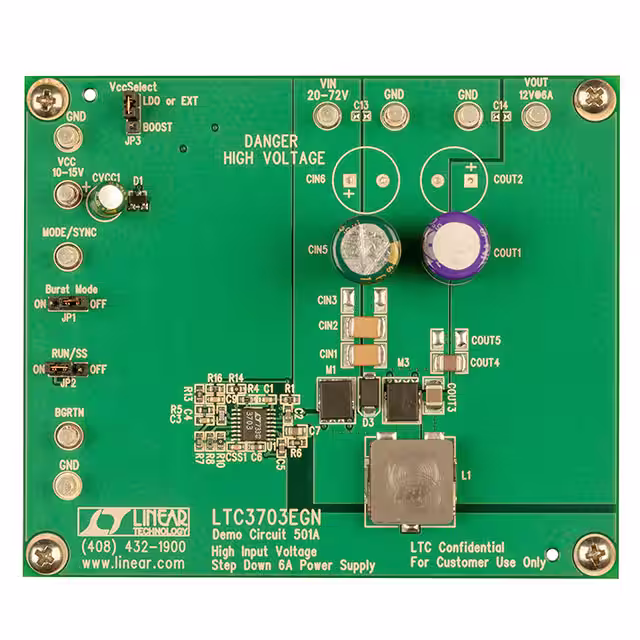

DC501AEVAL BOARD FOR LTC3703 |
2,977 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 4A | 20V ~ 72V | Buck | 260kHz | Board(s) | LTC3703 |
|
DM330017-2EVAL BOARD FOR DSPIC33EP64GS502 |
4,215 | - |
|
Datasheet | MPLAB® | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 3.3V, 15V | 2.5A, 370mA | 7V ~ 11V | Boost, Buck | 350kHz | Board(s), Cable(s), Power Supply | dsPIC33EP64GS502 |
|
MAX16712EVKIT#EVAL BOARD FOR MAX16712 |
2,885 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.2V | 6A, 6A | 2.7V ~ 16V | Buck | 1MHz | Board(s) | MAX16712 |
|
FS-EBEVAL BOARD FOR FS SERIES |
3,799 | - |
|
Datasheet | FS | Box | Active | DC/DC Converter | - | - | - | - | - | - | - | Partially Populated Board(s) | FS Series |
|
EVAL-LT8692S-AZEVAL BOARD FOR LT8692S |
4,850 | - |
|
Datasheet | Silent Switcher® | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V, 5V | 2A, 1A, 1A, 1A | 6.2V ~ 42V | Buck | 2MHz | Board(s) | LT8692S |
|

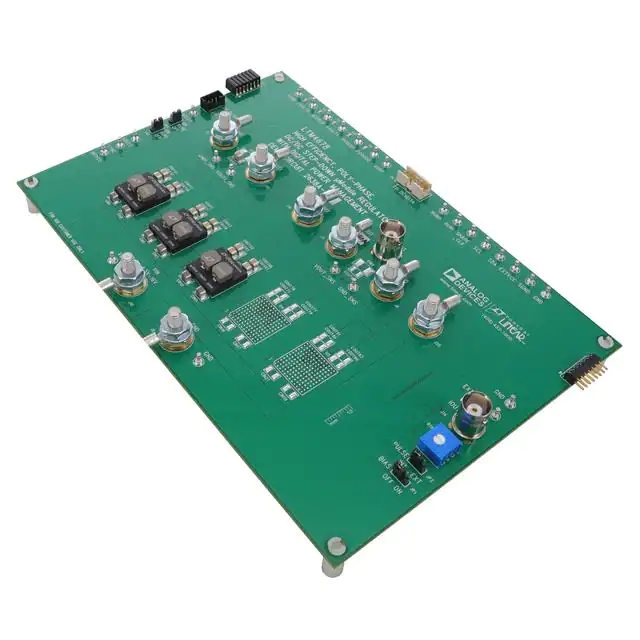

DC2638A-BEVAL BOARD FOR LTM4678 |
4,495 | - |
|
Datasheet | µModule® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 3.3V | 150A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTM4678 |
|
LMZ22005EVAL/NOPBEVAL BOARD FOR LMZ22005 |
1,236 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 6V ~ 20V | Buck | 812kHz | Board(s) | LMZ22005 |
|
TPS53219EVM-690EVAL BOARD FOR TPS53219 |
2,343 | - |
|
Datasheet | D-CAP™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V | 4A | 8V ~ 14V | Buck | 300kHz | Board(s) | TPS53219 |
|
TPS40345EVM-353EVAL BOARD FOR TPS40345 |
3,007 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 20A | 8V ~ 14V | Buck | 600kHz | Board(s) | TPS40345 |
|

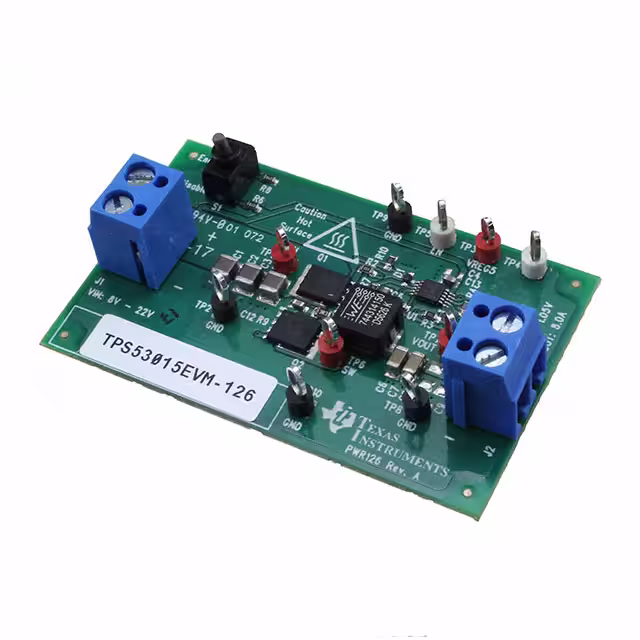

TPS53015EVM-126EVAL BOARD FOR TPS53015 |
3,013 | - |
|
Datasheet | D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 8A | 8V ~ 22V | Buck | 500kHz | Board(s) | TPS53015 |
|

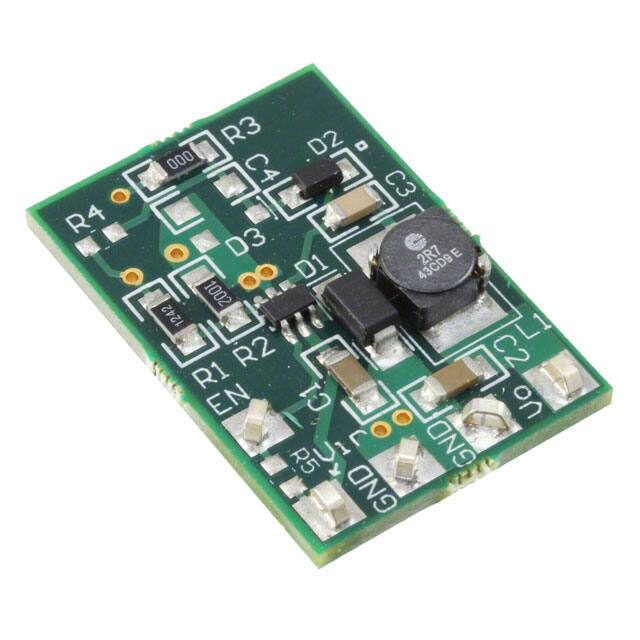

LM2734ZEVAL/NOPBEVAL BOARD FOR LM2734 |
4,041 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 3V ~ 20V | Buck | 3MHz | Board(s) | LM2734 |
|
TDHB-65H070L-DCEVAL BOARD FOR TP65H070L |
2,629 | - |
|
Datasheet | - | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | - | 16A | - | Boost, Buck, Half-Bridge | - | Board(s), Power Supply | TP65H070L |
|

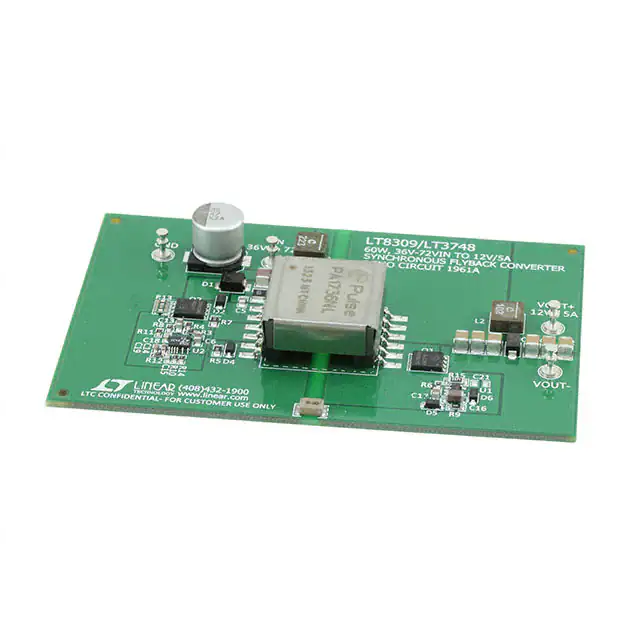

DC1961AEVAL BOARD FOR LT3748 LT8309 |
4,657 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | - | 12V | 5A | 36V ~ 72V | Flyback | 133kHz | Board(s) | LT3748, LT8309 |
|
|
DC1381A-AEVAL BOARD FOR LTC3857 |
2,161 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 8.5V | 5A, 3A | 4.5V ~ 36V | Buck | 350kHz | Board(s) | LTC3857 |
|
DC2855AEVAL BOARD FOR LTC7818 |
3,834 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 3.3V, 5V, 10V | 10A, 10A, 10A | 4.5V ~ 36V | Buck | 2.2MHz | Board(s) | LTC7818 |
|

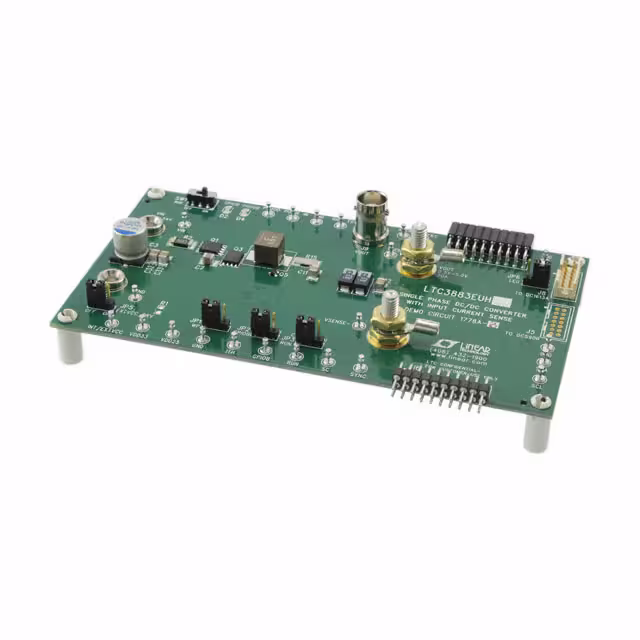

DC1778A-BEVAL BOARD FOR LTC3883 |
4,822 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 20A | 6.5V ~ 24V | Buck | 425kHz | Board(s) | LTC3883 |
|

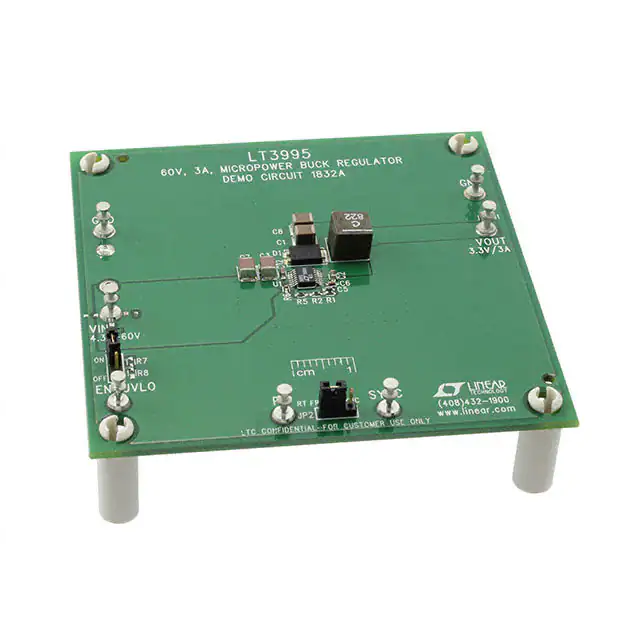

DC1832AEVAL BOARD FOR LT3995 |
1,623 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.3V ~ 60V | Buck | 300kHz | Board(s) | LT3995 |
|
DC1860BEVAL BOARD FOR LT3748 |
4,649 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | - | 52.5V | 700mA | 10V ~ 15V | Flyback | - | Board(s) | LT3748 |
|

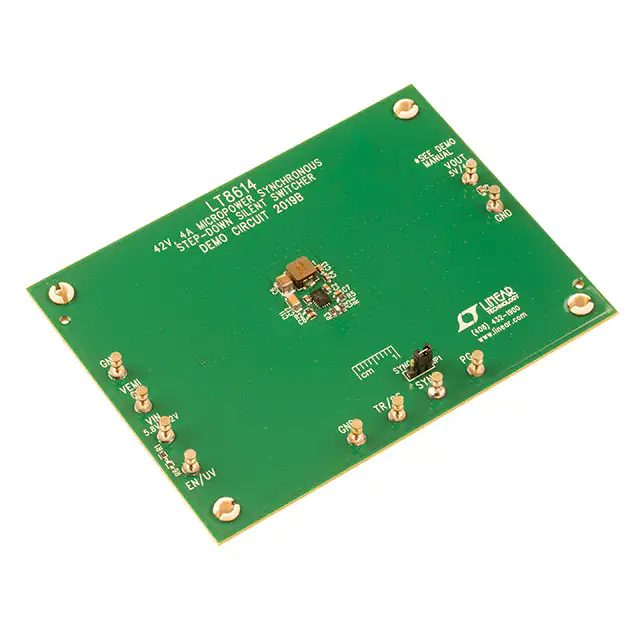

DC2019BEVAL BOARD FOR LT8614 |
1,545 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4A | 5.8V ~ 42V | Buck | 2MHz | Board(s) | LT8614 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
What DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components can I source from EGOO?
You can browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
