Ferrite Cores
Compare the current Ferrite Cores Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC95SP110X40X20FERRITE CORE SP PCS95 1PCS |
3,885 | - |
|
Datasheet | SP | Tray | Active | SP | SP 110 x 40 x 20 | PC95 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.787" (20.00mm) | 4.331" (110.00mm) | 1.575" (40.00mm) |
|

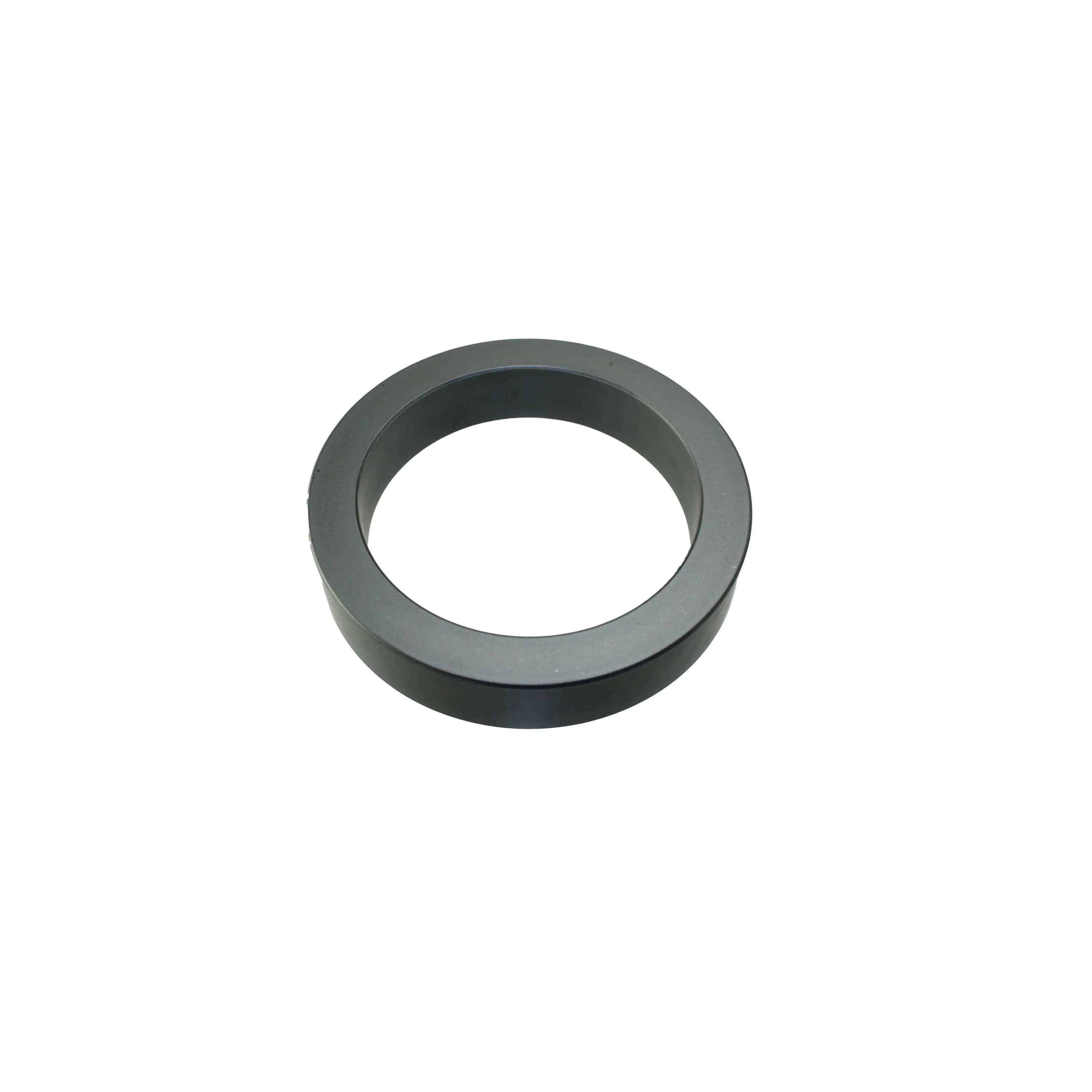

HF90T104X20X80FERRITE CORE TOROID |
3,868 | - |
|
Datasheet | T | Tray | Active | Toroid | - | - | - | - | - | Ungapped | - | 5000 | - | - | - | - | - | Epoxy | 0.787" (20.00mm) | - | - |
|
|
PC95SP135X65X20FERRITE CORE SP PCS95 1PCS |
2,495 | - |
|
Datasheet | SP | Tray | Active | SP | SP 135 x 65 x 20 | PC95 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.787" (20.00mm) | 5.315" (135.00mm) | 2.559" (65.00mm) |
|
PC95PQ65/44-ZFERRITE CORE PQ 15.5UH PCS95 2PC |
2,457 | - |
|
Datasheet | Large PQ | Tray | Active | PQ | PQ 65 x 44 | PC95 | - | 15.5 µH | ±25% | Ungapped | - | - | 0.17 | 103.0 | 604.0 | - | 62460.0 | Uncoated | 1.713" (43.50mm) | 2.559" (65.00mm) | 1.772" (45.00mm) |
|
|
PC95PQ65/54-ZFERRITE CORE PQ 13.5UH PCS95 2PC |
4,299 | - |
|
Datasheet | Large PQ | Tray | Active | PQ | PQ 65 x 54 | PC95 | - | 13.5 µH | ±25% | Ungapped | - | - | 0.21 | 123.0 | 597.0 | - | 73552.0 | Uncoated | 2.106" (53.50mm) | 2.559" (65.00mm) | 1.772" (45.00mm) |
|
PC44PQ32/30Z-12FERRITE CORE PQ PCS44 2PC SET |
1,108 | - |
|
Datasheet | - | Tray | Active | PQ | PQ 32 x 30 | PC44 | - | - | ±25% | Ungapped | - | - | 0.464 | 47.6 | 161.0 | - | 12000.0 | Uncoated | 1.195" (30.35mm) | 1.260" (32.00mm) | 0.866" (22.00mm) |
|
|
PC44PQ35/35Z-12FERRITE CORE PQ PCS44 2PC SET |
1,781 | - |
|
Datasheet | - | Tray | Active | PQ | PQ 35 x 35 | PC44 | - | - | ±25% | Ungapped | - | - | 0.448 | 87.9 | 196.0 | - | 17300.0 | Uncoated | 1.368" (34.75mm) | 1.382" (35.10mm) | 1.024" (26.00mm) |
|
PC95EI18/6/10-ZFERRITE COR HE 4.72UH PCS95 1SET |
4,080 | - |
|
Datasheet | Planar | Tray | Active | HE, PLT | EI 18 x 6 x 10 | PC95 | - | 4.72 µH | ±25% | Ungapped | - | - | 0.51 | 40.0 | 20.3 | 40.0 | 811.0 | Uncoated | 0.236" (6.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
PC95ELT20X7.7-ZFERRITE CORE ELH 5.63UH 1SET |
4,634 | - |
|
Datasheet | Planar | Tray | Active | ELH, PLT | ELT 20 x 7.7 | PC95 | - | 5.63 µH | ±25% | Ungapped | - | - | 0.47 | 54.6 | 25.6 | 52.9 | 1400.0 | Uncoated | 0.230" (5.84mm) | 0.787" (20.00mm) | 0.630" (16.00mm) |
|
PC95PQI20/9Z-12FERRITE CORE HPQ 7.07UH 1SET |
3,544 | - |
|
Datasheet | Planar | Tray | Active | HPQ, PQD | PQI 20 x 9 | PC95 | - | 7.07 µH | ±25% | Ungapped | - | - | 0.35 | 66.0 | 22.9 | 59.3 | 1510.0 | Uncoated | 0.236" (6.00mm) | 0.807" (20.50mm) | 0.551" (14.00mm) |
