Ferrite Cores
Compare the current Ferrite Cores Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC95ER22/5.5/15-ZFERRITE CORE ER 4.3UH PCS95 2PC |
226 | - |
|
Datasheet | Planar | Tray | Active | ER | ER 22 x 5.5 x 15 | PC95 | - | 4.3 µH | ±25% | Ungapped | - | - | 0.51 | 46.1 | 23.2 | 36.3 | 1070.0 | Uncoated | 0.108" (2.75mm) | 0.870" (22.10mm) | 0.600" (15.25mm) |
|
H5AP9/5Z-52H2PCS POT CORE FOR SIGNAL TRANSFO |
1,224 | - |
|
Datasheet | P | Tray | Obsolete | P (Pot Core) | P 9 x 5 | H5A | - | 1.57 µH | ±25% | Ungapped | 1562.0 | 3300 | 1.24 | 12.4 | 10.0 | 7.29 | 124.0 | Uncoated | 0.106" (2.70mm) | - | - |
|

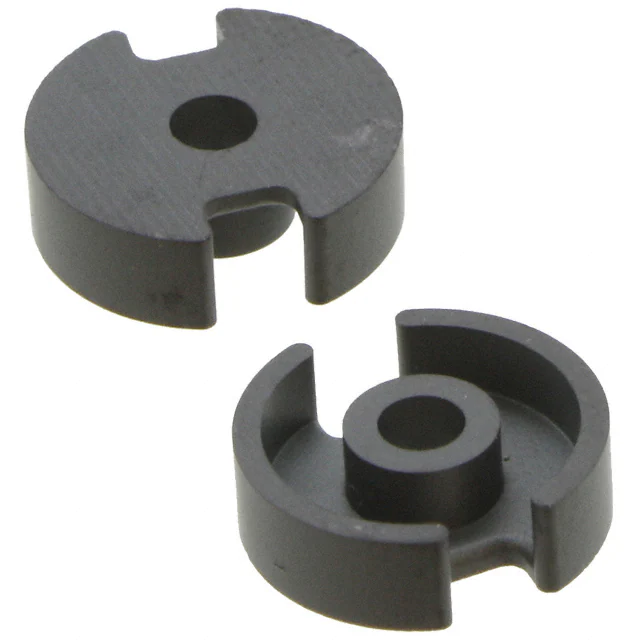

PC40P9/5Z-52HFERRITE CORE P PCS40 2PC SET |
12,460 | - |
|
Datasheet | - | Tray | Obsolete | P (Pot Core) | P 9 x 5 | PC40 | 0.288" (7.33mm) | - | - | Ungapped | 821.0 | - | 1.24 | 12.4 | 10.0 | - | 124.0 | Uncoated | 0.136" (3.45mm) | - | - |
|
|
HF60T25X13X15FERRITE CORE TOROID |
191 | - |
|
Datasheet | T | Tray | Active | Toroid | - | - | - | - | - | Ungapped | - | 1600 | - | - | - | - | - | Epoxy | 0.512" (13.00mm) | - | - |
|
|
H5AP22/13Z-52H2PCS POT CORE FOR SIGNAL TRANSFO |
184 | - |
|
Datasheet | P | Tray | Obsolete | P (Pot Core) | P 22 x 13 | H5A | - | 5.9 µH | ±25% | Ungapped | 2333.0 | 3300 | 0.497 | 31.5 | 63.4 | 47.7 | 1997.0 | Uncoated | - | - | - |
|
|
H5AP26/16Z-52H2PCS POT CORE FOR SIGNAL TRANSFO |
168 | - |
|
Datasheet | P | Tray | Obsolete | P (Pot Core) | P 26 x 16 | H5A | - | 7.8 µH | ±25% | Ungapped | 2483.0 | 3300 | 0.4 | 37.6 | 94.0 | 71.3 | 3534.0 | Uncoated | 0.642" (16.30mm) | - | - |
|
PC95SP100X100X5FERRITE CORE SP PCS95 1PCS |
4,545 | - |
|
Datasheet | SP | Tray | Active | SP | SP 100 x 100 x 5 | PC95 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.197" (5.00mm) | 3.937" (100.00mm) | 3.937" (100.00mm) |
|
H5C2ER9.5/5-ZFERRITE CORE ER H5C2 2PC SET |
205 | - |
|
Datasheet | - | Tray | Active | ER | ER 9.5 x 5 | H5C2 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.197" (5.00mm) | 0.374" (9.50mm) | 0.197" (5.00mm) |
|
PC40EER40-ZFERRITE CORE EER PCS40 2PC SET |
2,528 | - |
|
Datasheet | - | Tray | Active | EER | EER 40 | PC40 | - | - | ±25% | Gapped | - | - | 0.658 | 98.0 | 149.0 | - | 14600.0 | Uncoated | 0.882" (22.40mm) | 1.575" (40.00mm) | 0.524" (13.30mm) |
|
|
PC95ER9.5/5-ZFERRITE CORE ER 1.19UH PCS95 2PC |
149 | - |
|
Datasheet | Planar | Tray | Active | ER | ER 9.5 x 5 | PC95 | - | 1.19 µH | ±25% | Ungapped | - | - | 1.67 | 8.47 | 14.2 | 7.6 | 120.0 | Uncoated | 0.098" (2.50mm) | 0.374" (9.50mm) | 0.197" (5.00mm) |
