Ferrite Cores

Compare the current Ferrite Cores Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.

For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Core Type	Supplier Device Package	Material	Diameter	Inductance Factor (Al)	Tolerance	Gap	Effective Permeability (µe)	Initial Permeability (µi)	Core Factor (ΣI/A) mm⁻¹	Effective Length (le) mm	Effective Area (Ae) mm²	Minimum Core Cross Section (Amin) mm²	Effective Magnetic Volume (Ve) mm³	Finish	Height	Length	Width
PC95PQI26/12Z-12 FERRITE CORE HPQ 11.95UH 1SET TDK Corporation	601	-	RFQ	Datasheet	Planar	Tray	Active	HPQ, PQD	PQI 26 x 12	PC95	-	11.95 µH	±25%	Ungapped	-	-	0.22	123.0	27.7	109.0	3410.0	Uncoated	0.287" (7.30mm)	1.043" (26.50mm)	0.748" (19.00mm)
HF90T44.5X13X30 FERRITE CORE TOROID TDK Corporation	1,682	-	RFQ	Datasheet	T	Tray	Active	Toroid	-	-	1.752" (44.50mm)	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.512" (13.00mm)	-	-
HF60T38X14X22 FERRITE CORE TOROID TDK Corporation	360	-	RFQ	Datasheet	T	Tray	Active	Toroid	-	-	-	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.551" (14.00mm)	-	-
PC95PQ20/16Z-12 FERRITE CORE PQ 4.48UH PCS95 2PC TDK Corporation	287	-	RFQ	Datasheet	PQ	Tray	Active	PQ	PQ 20 x 16	PC95	-	4.48 µH	±25%	Ungapped	-	-	0.61	37.4	62.0	-	2310.0	Uncoated	0.638" (16.20mm)	0.807" (20.50mm)	0.551" (14.00mm)
PC95PQ32/20Z-12 FERRITE CORE PQ 9.12UH PCS95 2PC TDK Corporation	113	-	RFQ	Datasheet	PQ	Tray	Active	PQ	PQ 32 x 20	PC95	-	9.12 µH	±25%	Ungapped	-	-	0.33	55.5	170.0	-	9420.0	Uncoated	0.809" (20.55mm)	1.260" (32.00mm)	0.866" (22.00mm)

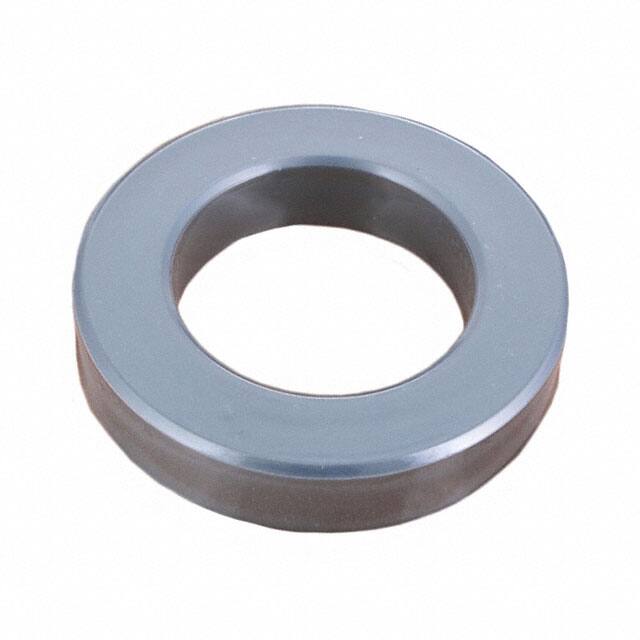

HF90T62X13X39 FERRITE CORE TOROID TDK Corporation	165	-	RFQ	Datasheet	T	Tray	Active	Toroid	-	-	-	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.512" (13.00mm)	-	-
HF60T62X13X39 FERRITE CORE TOROID TDK Corporation	321	-	RFQ	Datasheet	T	Tray	Active	Toroid	-	-	-	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.512" (13.00mm)	-	-
PC47EI12.5-Z FERRITE CORE E 1.2UH PCS47 1SET TDK Corporation	634	-	RFQ	Datasheet	E	Tray	Active	E	-	PC47	-	1.2 µH	±25%	Ungapped	-	2500	1.48	21.3	14.4	-	308.0	Uncoated	0.291" (7.40mm)	0.488" (12.40mm)	-
PC95ER14.5/6-Z FERRITE CORE ER 1.88UH PCS95 2PC TDK Corporation	3,599	-	RFQ	Datasheet	Planar	Tray	Active	ER	ER 14.5 x 6	PC95	-	1.88 µH	±25%	Ungapped	-	-	1.08	17.6	19.0	17.3	333.0	Uncoated	0.118" (3.00mm)	0.571" (14.50mm)	0.264" (6.70mm)
PC47EPC17-Z FERRITE CORE EPCS 1.15UH 2PC TDK Corporation	262	-	RFQ	Datasheet	EPC	Tray	Active	EPC	EPC 17	PC47	-	1.15 µH	±25%	Ungapped	-	-	1.76	40.2	22.8	-	917.0	Uncoated	0.337" (8.55mm)	0.693" (17.60mm)	0.236" (6.00mm)

Ferrite Cores FAQ

How can I narrow the current Ferrite Cores selection?

Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.

Can EGOO help source hard-to-find or obsolete Ferrite Cores parts?

Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.

Can I request a quotation for a BOM or small-batch requirement?

Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.

What information should I provide when requesting a quote?

Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
