Ferrite Cores
Compare the current Ferrite Cores Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65651D0100A033FERRITE CORE P 100NH M33 2PCS |
1,909 | - |
|
Datasheet | P18/11 | Box | Active | P (Pot Core) | P 18 x 11 | M33 | 0.724" (18.40mm) | 100 nH | ±3% | Gapped | 48.0 | 750 | 0.6 | 25.9 | 43.0 | - | 1114.0 | Uncoated | 0.209" (5.30mm) | - | - |
|

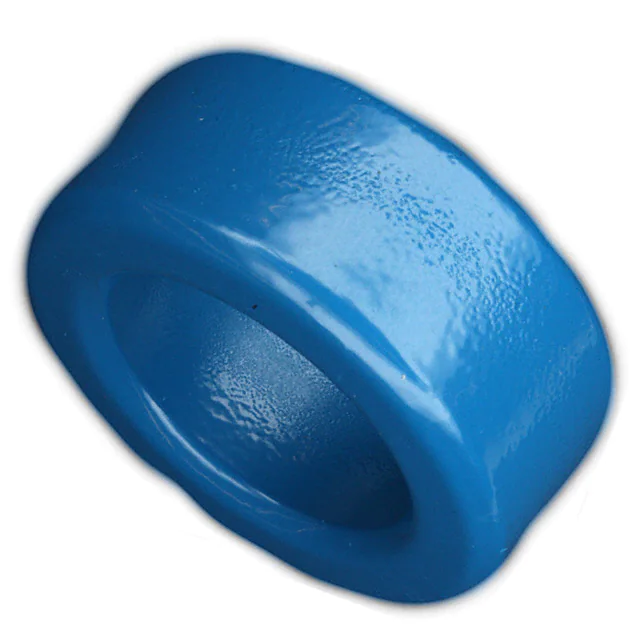

B64290L0674X038FERRITE CORE TOROID 13.5UH T38 |
216 | - |
|
Datasheet | TX36/23/15 | Tray | Active | Toroid | - | T38 | 1.476" (37.50mm) | 13.5 µH | ±30% | Ungapped | - | 10000 | 0.94 | 89.65 | 95.89 | - | 8597.0 | Epoxy | 0.638" (16.20mm) | - | - |
|

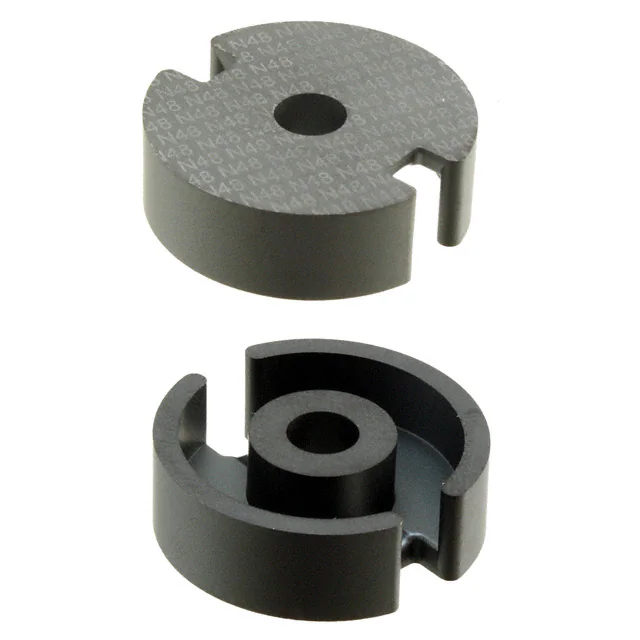

B65671D0000R048FERRITE CORE P 4.9UH N48 2PCS |
1,255 | - |
|
Datasheet | P26/16 | Box | Active | P (Pot Core) | P 26 x 16 | N48 | 1.024" (26.00mm) | 4.9 µH | -20%, +30% | Ungapped | 1560.0 | - | 0.4 | 37.2 | 93.0 | 76.5 | 3460.0 | Uncoated | 0.321" (8.15mm) | - | - |
|

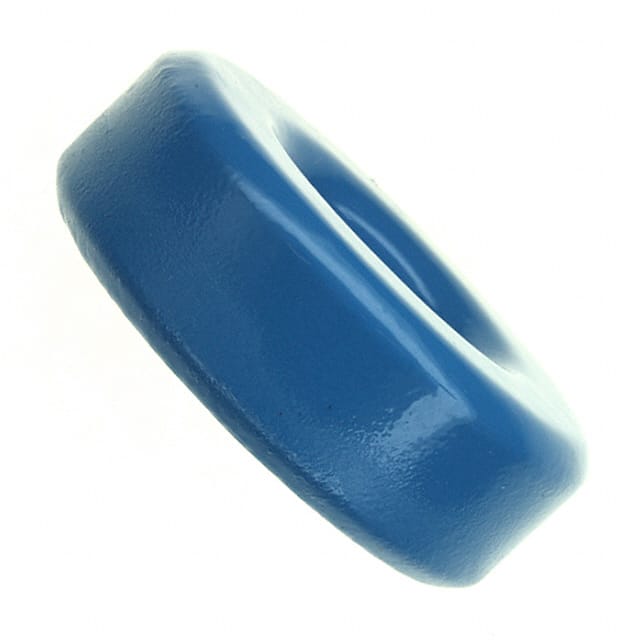

B64290L0668X038FERRITE CORE TOROID 17.6UH T38 |
1,042 | - |
|
Datasheet | TX38/19/13 | Tray | Active | Toroid | - | T38 | 1.551" (39.40mm) | 17.6 µH | ±30% | Ungapped | - | 10000 | 0.71 | 82.97 | 116.2 | - | 9644.0 | Epoxy | 0.543" (13.80mm) | - | - |
|

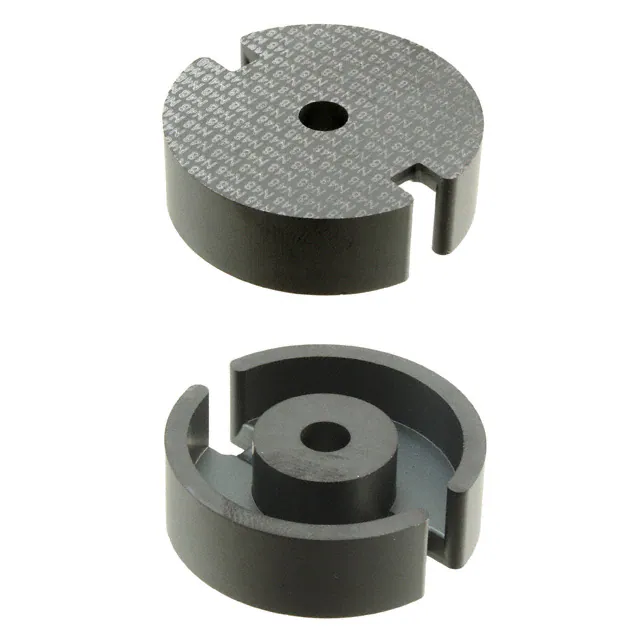

B65611D0000R048FERRITE CORE P 7.6UH N48 2PCS |
198 | - |
|
Datasheet | P36/22 | Tray | Active | P (Pot Core) | P 36 x 22 | N48 | 1.417" (36.00mm) | 7.6 µH | -20%, +30% | Ungapped | 1560.0 | - | 0.26 | 52.0 | 202.0 | - | 10500.0 | Uncoated | 0.433" (11.00mm) | - | - |
|

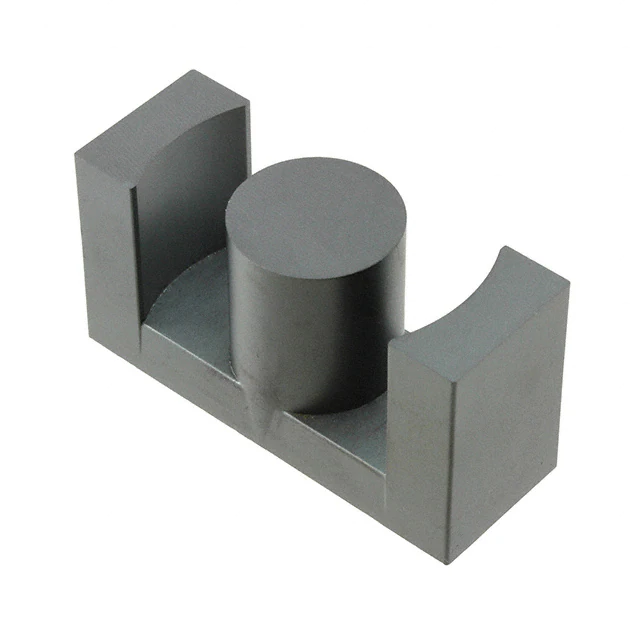

B66397G0000X187FERRITE CORE ETD N87 1PC |
525 | - |
|
Datasheet | ETD59/31/22 | Box | Active | ETD | ETD 59 x 31 x 22 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.228" (31.20mm) | 2.354" (59.80mm) | 0.870" (22.10mm) |
|

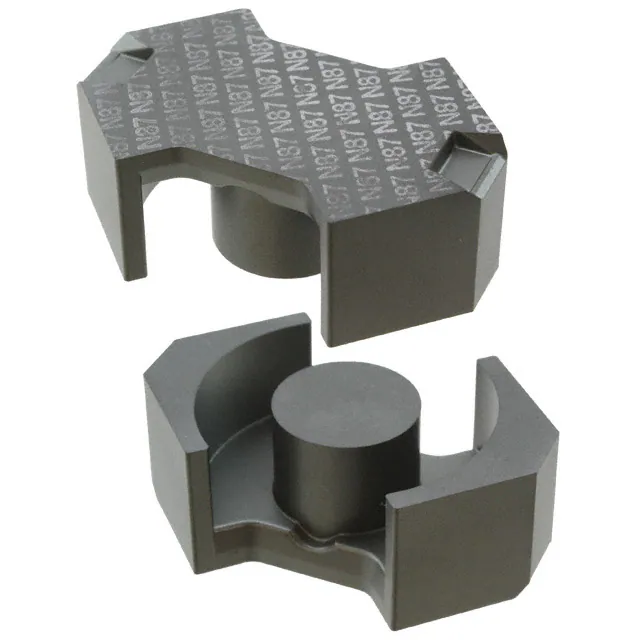

B65887E0000R087FERRITE CORE RM 6UH N87 2PCS |
717 | - |
|
Datasheet | RM14 | Box | Active | RM | RM 14 | N87 | - | 6 µH | -20%, +30% | Ungapped | 1670.0 | 2200 | 0.35 | 70.0 | 200.0 | 170.0 | 14000.0 | Uncoated | 0.594" (15.10mm) | 1.661" (42.20mm) | 0.748" (19.00mm) |
|

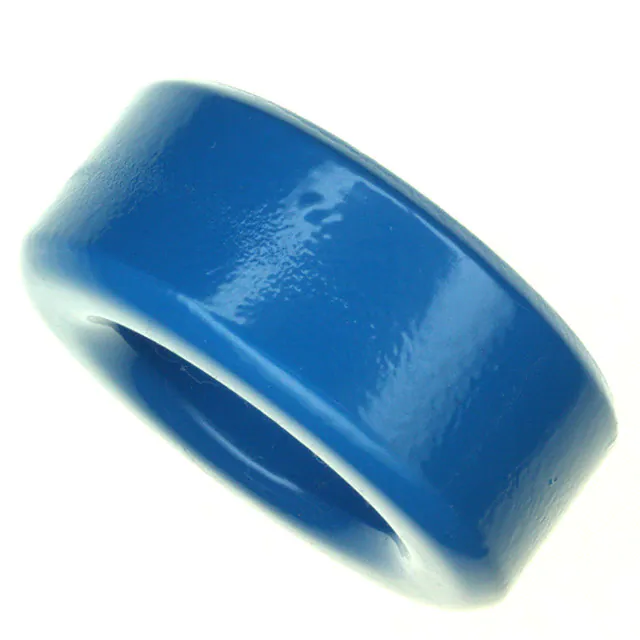

B64290L0082X087FERRITE CORE TOROID 4.46UH N87 |
1,116 | - |
|
Datasheet | TX50/30/20 | Tray | Active | Toroid | - | N87 | 2.040" (51.80mm) | 4.46 µH | ±25% | Ungapped | - | 2200 | 0.62 | 120.4 | 195.7 | - | 23560.0 | Epoxy | 0.839" (21.30mm) | - | - |
|

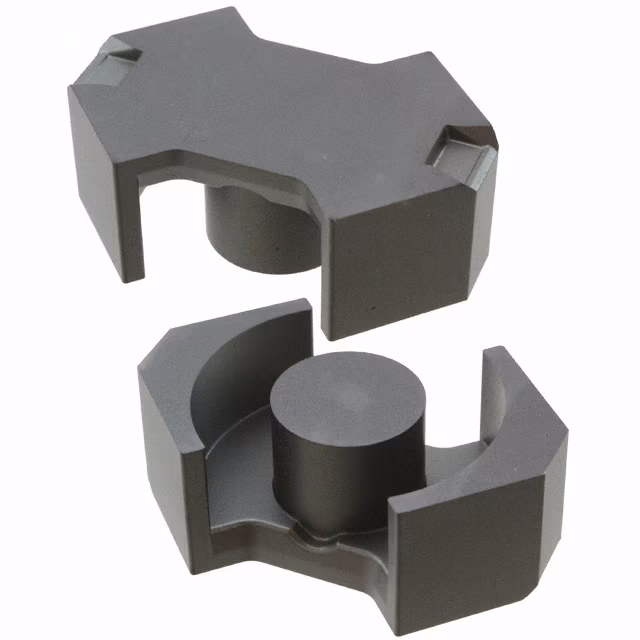

B65887E0400A041FERRITE CORE RM 400NH N41 2PCS |
196 | - |
|
Datasheet | RM14 | Box | Active | RM | RM 14 | N41 | - | 400 nH | ±3% | Gapped | 111.0 | 2800 | 0.35 | 70.0 | 200.0 | 170.0 | 14000.0 | Uncoated | 0.594" (15.10mm) | 1.661" (42.20mm) | 0.748" (19.00mm) |
|

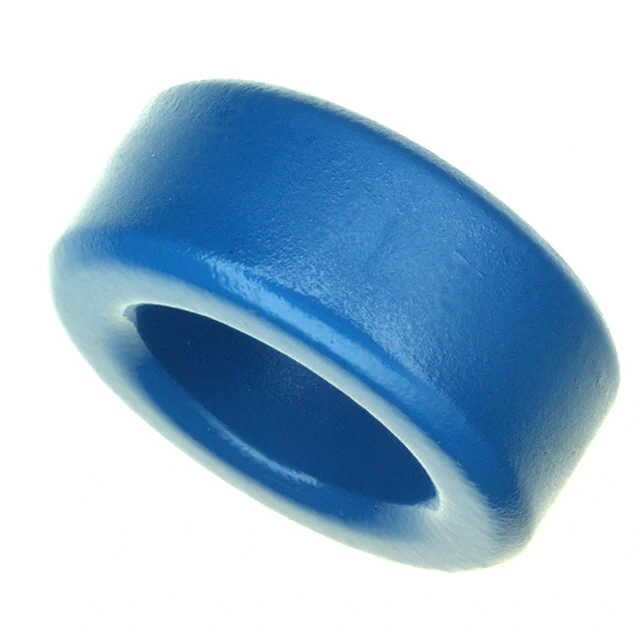

B64290L0082X830FERRITE CORE TOROID 8.7UH N30 |
1,582 | - |
|
Datasheet | TX50/30/20 | Tray | Active | Toroid | - | N30 | 2.040" (51.80mm) | 8.7 µH | ±25% | Ungapped | - | 4300 | 0.62 | 120.4 | 195.7 | - | 23560.0 | Epoxy | 0.839" (21.30mm) | - | - |
Ferrite Cores FAQ
How can I narrow the current Ferrite Cores selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Ferrite Cores parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
