Ferrite Cores
Compare the current Ferrite Cores Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

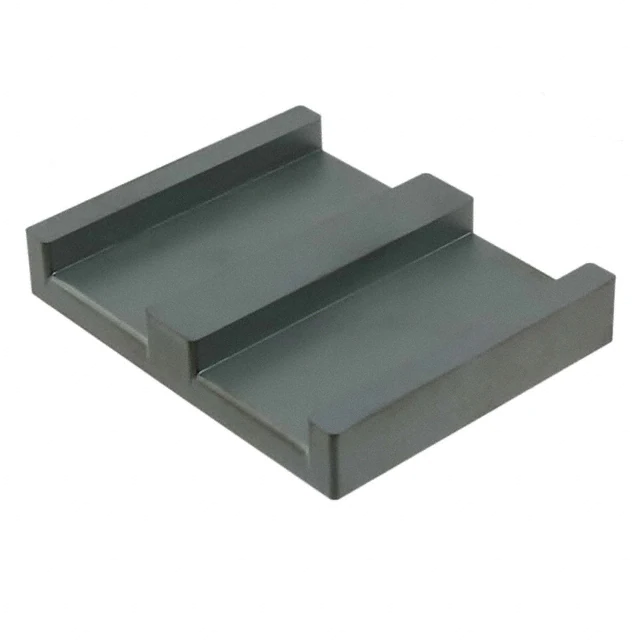

B66295G0000X187FERRITE CORE ELP N87 1PC |
839 | - |
|
Datasheet | ELP64/10/50 | Box | Active | ELP | ELP 64 x 10 x50 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.402" (10.20mm) | 2.520" (64.00mm) | 2.000" (50.80mm) |
|

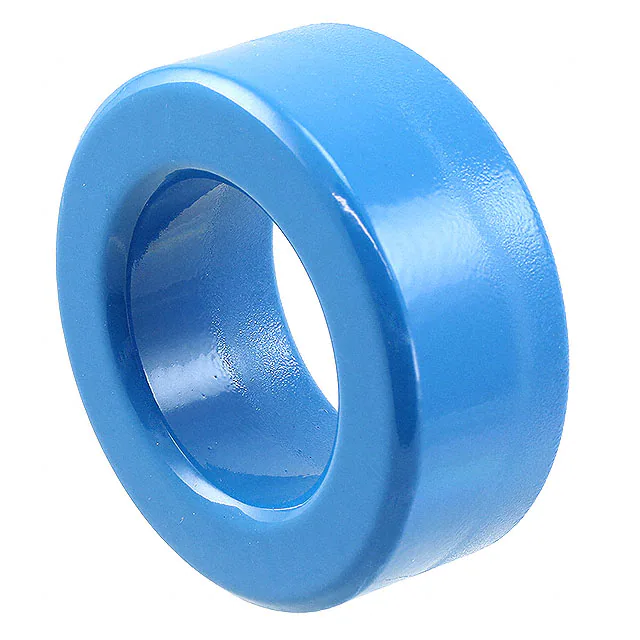

B64290L0699X830FERRITE CORE TOROID 10.8UH N30 |
231 | - |
|
Datasheet | TX63/38/25 | Box | Active | Toroid | - | N30 | 2.571" (65.30mm) | 10.8 µH | ±25% | Ungapped | - | 4300 | 0.5 | 152.1 | 305.9 | - | 46530.0 | Epoxy | 1.047" (26.60mm) | - | - |
|
B64290L0699X037FERRITE CORE TOROID 13.9UH T37 |
138 | - |
|
Datasheet | TX63/38/25 | Box | Active | Toroid | - | T37 | 2.571" (65.30mm) | 13.9 µH | ±25% | Ungapped | - | 5500 | 0.5 | 152.1 | 305.9 | - | 46530.0 | Epoxy | 1.047" (26.60mm) | - | - |
|

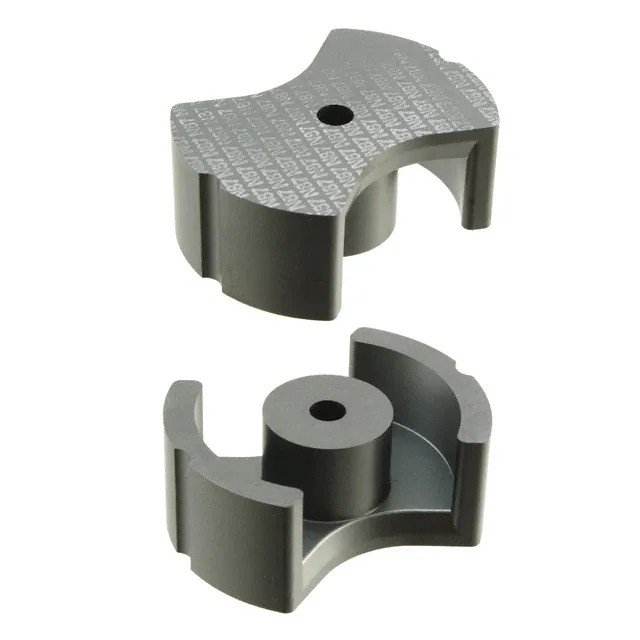

B65646A0000R087FERRITE CORE PM 7.4UH N87 2PCS |
180 | - |
|
Datasheet | PM50/39 | Box | Active | PM | PM 50 x 39 | N87 | 1.969" (50.00mm) | 7.4 µH | -20%, +30% | Ungapped | 1340.0 | 2200 | 0.227 | 84.0 | 370.0 | 280.0 | 31000.0 | Uncoated | 0.768" (19.50mm) | - | - |
|

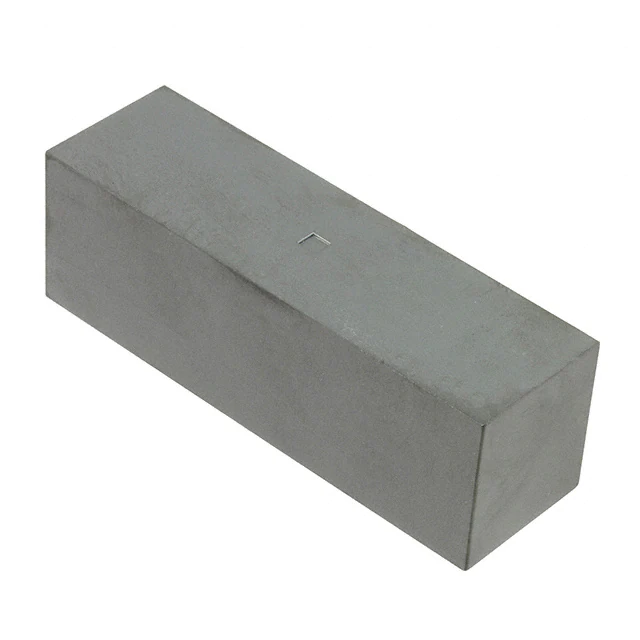

B67345B0002X087FERRITE CORE I N87 1PC |
119 | - |
|
Datasheet | I93/28/30 | Box | Active | I | I 93 x 28 x 30 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.102" (28.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|

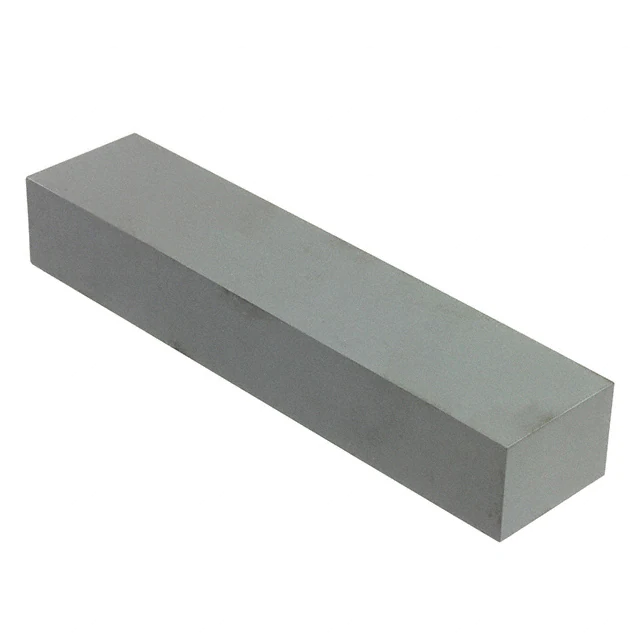

B67385P0000X187FERRITE CORE I N87 1PC |
107 | - |
|
Datasheet | I126/28/20 | Box | Active | I | I 126 x 28 x 20 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.102" (28.00mm) | 4.961" (126.00mm) | 0.787" (20.00mm) |
|

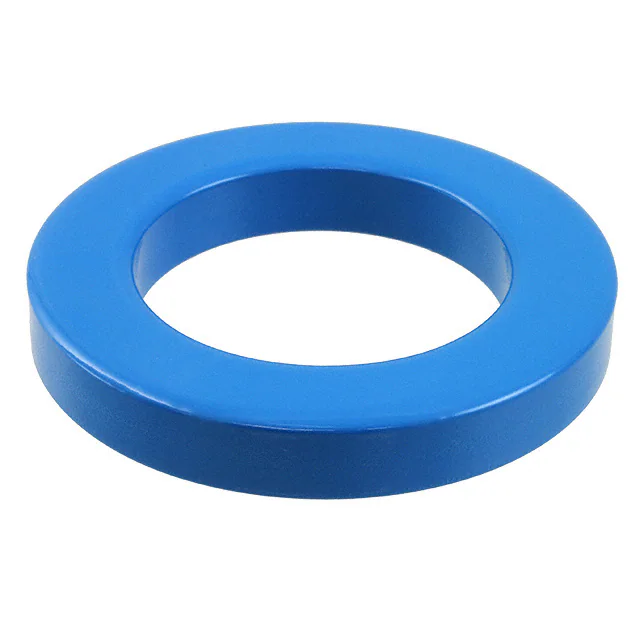

B64290L0084X830FERRITE CORE TOROID 5.5UH N30 |
672 | - |
|
Datasheet | TX102/66/15 | Box | Active | Toroid | - | N30 | 4.126" (104.80mm) | 5.5 µH | ±25% | Ungapped | - | 4200 | 0.96 | 255.3 | 267.2 | - | 68220.0 | Epoxy | 0.650" (16.50mm) | - | - |
|

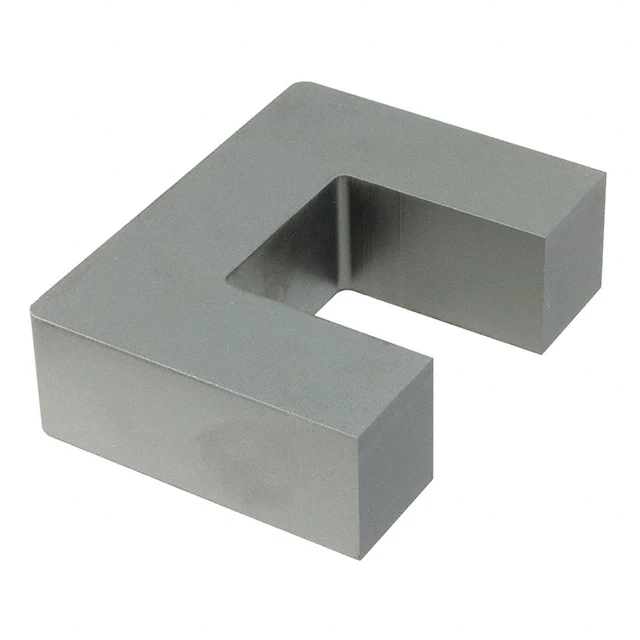

B67370A0002X187FERRITE CORE U N87 1PC |
2,842 | - |
|
Datasheet | U101/76/30 | Box | Active | U | U 101 x 76 x 30 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.976" (101.00mm) | 1.181" (30.00mm) |
|
B64290P0036X830FERRITE CORE TOROID 700NH N30 |
48,382 | - |
|
Datasheet | TC4.0/2.4/1.6 | Box | Active | Toroid | - | N30 | 0.158" (4.02mm) | 700 nH | ±25% | Ungapped | - | 4300 | 7.7 | 9.63 | 1.25 | - | 12.0 | Parylene | 0.064" (1.62mm) | - | - |
|
B64290L0038X087FERRITE CORE TOROID 900NH N87 |
1,015 | - |
|
Datasheet | TX10/6/4 | Bulk | Active | Toroid | - | N87 | 0.425" (10.80mm) | 900 nH | ±25% | Ungapped | - | 2200 | 3.07 | 24.07 | 7.83 | - | 188.0 | Epoxy | 0.187" (4.75mm) | - | - |
Ferrite Cores FAQ
How can I narrow the current Ferrite Cores selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Ferrite Cores parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
