Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32524R3106K000CAP FILM 10UF 10% 250VDC RADIAL |
1,352 | - |
|
Datasheet | Radial | 10 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|

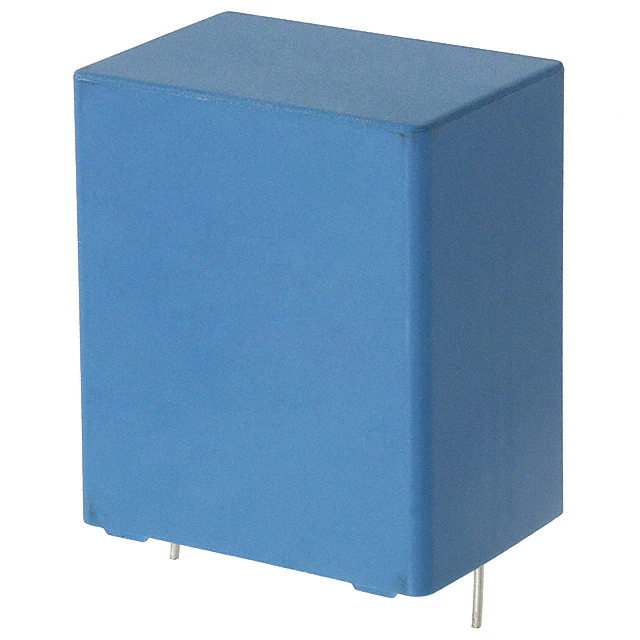

B32924C3565M000CAP FILM 5.6UF 20% 630VDC RADIAL |
4,023 | - |
|
Datasheet | Radial | 5.6 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
FKP1Y022207E00KSSDCAP FILM 0.022UF 10% 6KVDC RAD |
919 | - |
|
Datasheet | Radial | 0.022 µF | ±10% | 700V | 6000V (6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

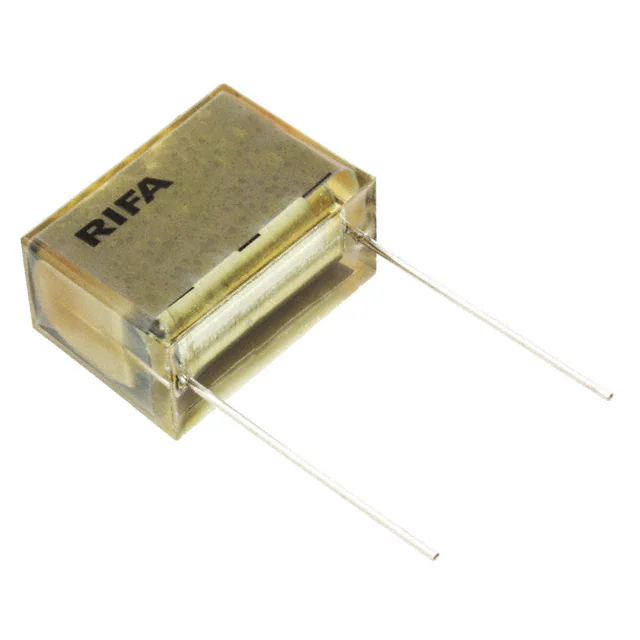

PME271M647KR30CAP FILM 0.47UF 10% 275VAC RAD |
140 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X2 | - |
|

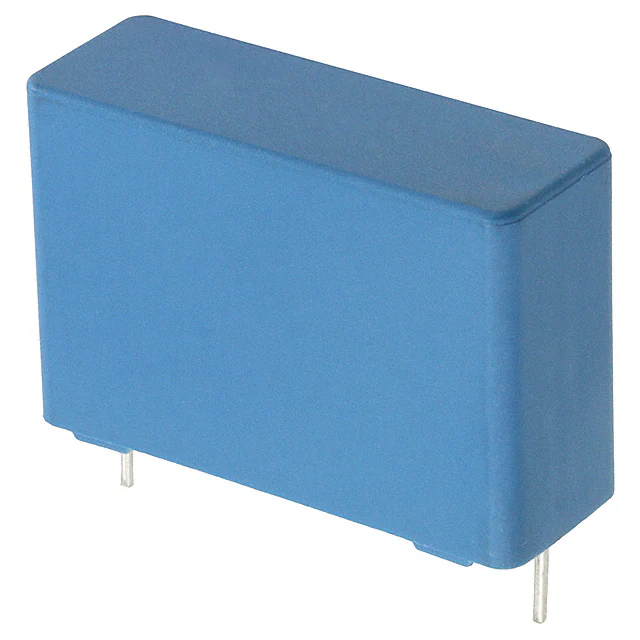

B32774D0205K000CAP FILM 2UF 10% 1.1KVDC RADIAL |
2,760 | - |
|
Datasheet | Radial | 2 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 26.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32934B3225K000CAP FILM 2.2UF 10% 305VAC RADIAL |
428 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
B32914A5684M000CAP FILM 0.68UF 20% 1KVDC RADIAL |
740 | - |
|
Datasheet | Radial | - | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|

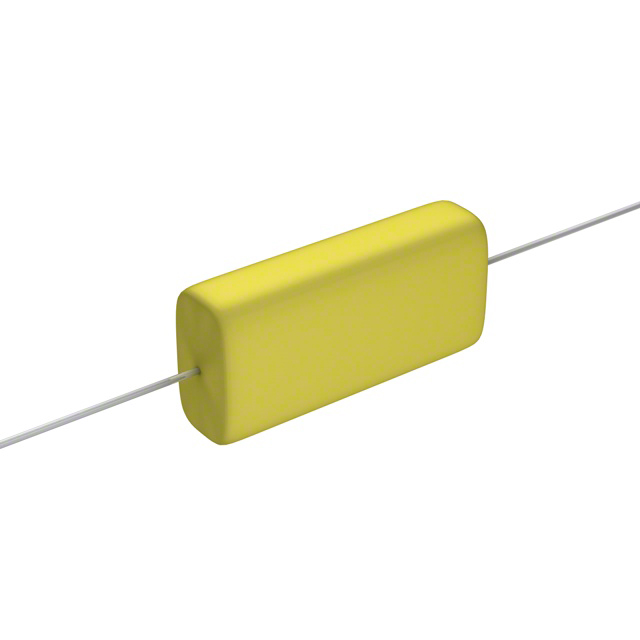

MMP2W1K-FCAP FILM 1UF 10% 250VDC AXIAL |
274 | - |
|
Datasheet | Axial | 1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.531" W, 0.295" T x 1.102" L (13.50mm, 7.50mm x 28.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
MKP1848530094K2CAP FILM 3UF 5% 900VDC RADIAL |
3,601 | - |
|
Datasheet | Radial | 3 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 29.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
B32523R0226K000CAP FILM 22UF 10% 63VDC RADIAL |
428 | - |
|
Datasheet | Radial | 22 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | - | - |
|

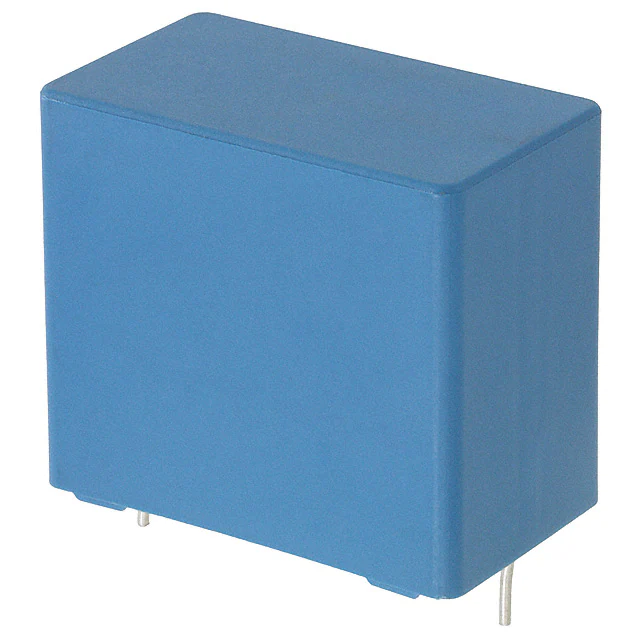

B32774D1305K000CAP FILM 3UF 10% 1.3KVDC RADIAL |
6,013 | - |
|
Datasheet | Radial | 3 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 16 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
MKP4O141007E00KSSDCAP FILM 1UF 10% 1KVDC RAD |
783 | - |
|
Datasheet | Radial | 1 µF | ±10% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
B32562J1106K000CAP FILM 10UF 10% 100VDC 2DIP |
1,985 | - |
|
Datasheet | 2-DIP | 10 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
B32926C3685K000CAP FILM 6.8UF 10% 630VDC RADIAL |
4,823 | - |
|
Datasheet | Radial | 6.8 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
PME264NE6100MR30CAP FILM 0.1UF 20% 660VAC RADIAL |
164 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 660V | - | Paper, Metallized | - | -40°C ~ 85°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X2 | - |
|
B32676E6475K000CAP FILM 4.7UF 10% 630VDC RADIAL |
973 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 0.709" W (42.00mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
MKP1848S61070JP2CCAP FILM 10UF 5% 700VDC RADIAL |
647 | - |
|
Datasheet | Radial | 10 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 13.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.063" W (42.00mm x 27.00mm) | 0.709" (18.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
BFC233920475CAP FILM 4.7UF 20% 630VDC RADIAL |
1,876 | - |
|
Datasheet | Radial | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|

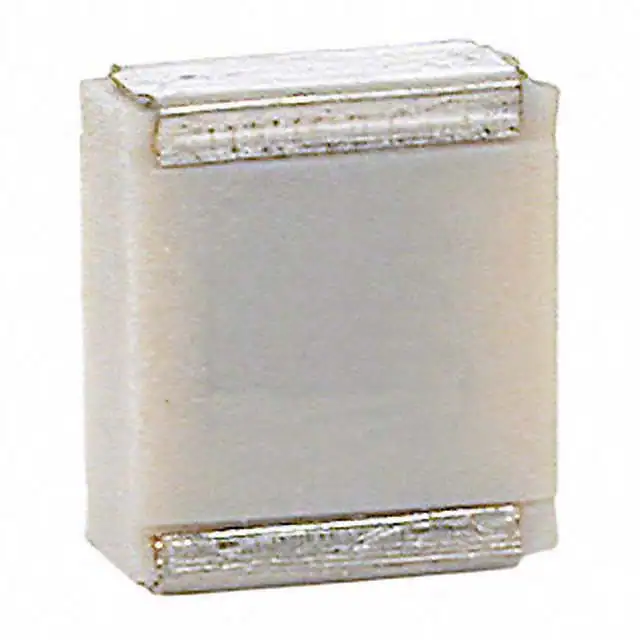

SMC5.7104J50J35TR12CAP FILM 0.1UF 5% 50VDC 2220 |
4,841 | - |
|
Datasheet | 2220 (5750 Metric) | 0.1 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.165" (4.20mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
35MU105MB13225CAP FILM 1UF 20% 35VDC 1210 |
9,495 | - |
|
Datasheet | 1210 (3225 Metric) | 1 µF | ±20% | - | 35V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.063" (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
