Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32926C3825M000CAP FILM 8.2UF 20% 630VDC RADIAL |
489 | - |
|
Datasheet | Radial | 8.2 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
B32524Q1226K000CAP FILM 22UF 10% 100VDC RADIAL |
8,442 | - |
|
Datasheet | Radial | 22 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
B32914A5105M000CAP FILM 1UF 20% 1KVDC RADIAL |
1,663 | - |
|
Datasheet | Radial | 1 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
B32774D4106K000CAP FILM 10UF 10% 450VDC RADIAL |
12,927 | - |
|
Datasheet | Radial | 10 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 10.9 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32754C4305K000CAP FILM 3UF 10% 800VDC RADIAL |
723 | - |
|
Datasheet | Radial | 3 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
25MU225MB23225CAP FILM 2.2UF 20% 25VDC 1210 |
2,368 | - |
|
Datasheet | 1210 (3225 Metric) | 2.2 µF | ±20% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|

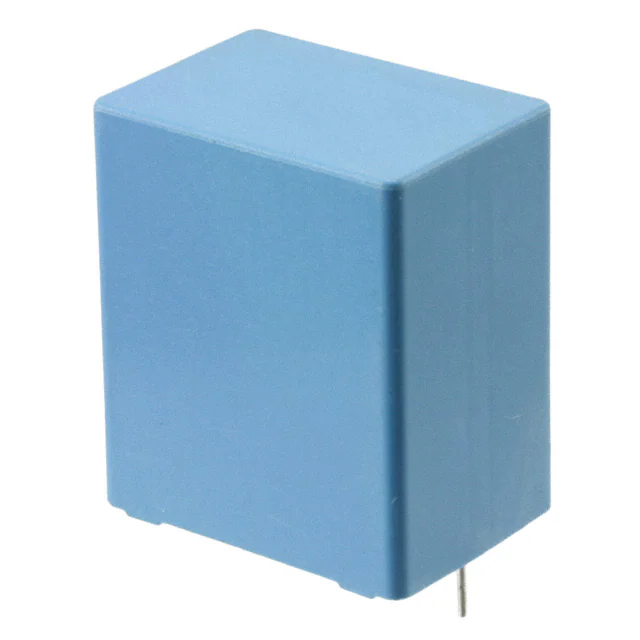

B32024A3105M000CAP FILM 1UF 20% 1.5KVDC RADIAL |
5,120 | - |
|
Datasheet | Radial | 1 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
MKT1813610065GCAP FILM 10UF 10% 63VDC AXIAL |
862 | - |
|
Datasheet | Axial | 10 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.571" Dia x 1.240" L (14.50mm x 31.50mm) | - | PC Pins | - | General Purpose | - | - |
|
B32774D1505K000CAP FILM 5UF 10% 1.3KVDC RADIAL |
1,273 | - |
|
Datasheet | Radial | 5 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 9.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
16MU335MB33225CAP FILM 3.3UF 20% 16VDC 1210 |
1,086 | - |
|
Datasheet | 1210 (3225 Metric) | 3.3 µF | ±20% | - | 16V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
F339X151048MKP2T0CAP FILM 1UF 20% 1KVDC RADIAL |
4,613 | - |
|
Datasheet | Radial | 1 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
B32914A5155M000CAP FILM 1.5UF 20% 1KVDC RADIAL |
8,377 | - |
|
Datasheet | Radial | 1.5 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
FE37M6C0206KBCAP FILM 20UF 10% 900VDC RADIAL |
5,604 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 5.5 mOhms | -40°C ~ 100°C | Through Hole | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
B32774D8126K000CAP FILM 12UF 10% 800VDC RADIAL |
5,997 | - |
|
Datasheet | Radial | 12 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32916A3335M000CAP FILM 3.3UF 20% 760VDC RADIAL |
1,944 | - |
|
Datasheet | Radial | 3.3 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
16MU106MC44532CAP FILM 10UF 20% 16VDC 1812 |
2,475 | - |
|
Datasheet | 1812 (4532 Metric) | 10 µF | ±20% | - | 16V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
940C30S68K-FCAP FILM 0.068UF 10% 3KVDC AXIAL |
838 | - |
|
Datasheet | Axial | 0.068 µF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 0.748" Dia x 1.811" L (19.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
16MU475MC14532CAP FILM 4.7UF 20% 16VDC 1812 |
666 | - |
|
Datasheet | 1812 (4532 Metric) | 4.7 µF | ±20% | - | 16V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.063" (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
PHE850ER7100MR03R06L2CAP FILM 1UF 20% 1.25KVDC RADIAL |
1,450 | - |
|
Datasheet | Radial | 1 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.417" (36.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
940C6W1K-FCAP FILM 1UF 10% 600VDC AXIAL |
488 | - |
|
Datasheet | Axial | 1 µF | ±10% | 275V | 600V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 0.827" Dia x 1.339" L (21.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
Film Capacitors FAQ
What Film Capacitors components can I source from EGOO?
You can browse available Film Capacitors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Film Capacitors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
