Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32674D4225K000CAP FILM 2.2UF 10% 450VDC RADIAL |
11,639 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 14.9 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|

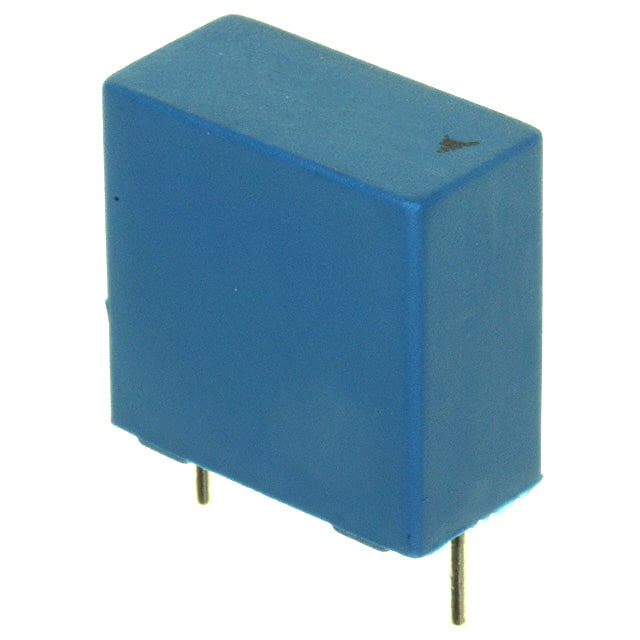

B32522C0106K000CAP FILM 10UF 10% 63VDC RADIAL |
2,688 | - |
|
Datasheet | Radial | 10 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | - | - |
|

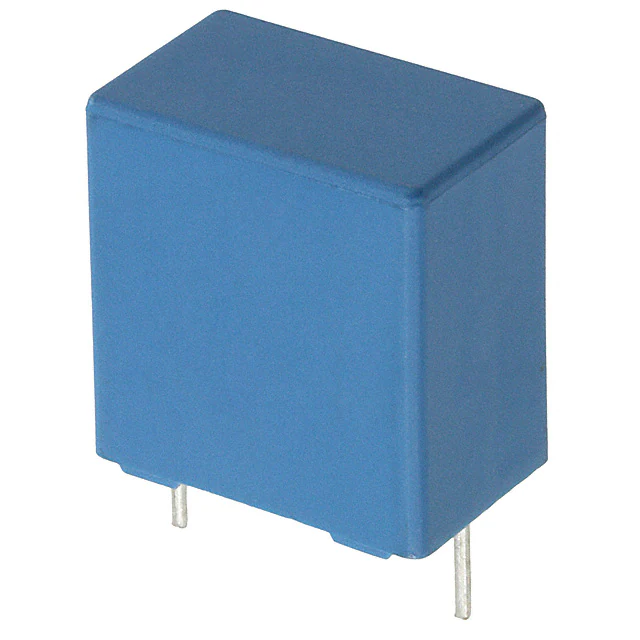

B32672P4225K000CAP FILM 2.2UF 10% 450VDC RADIAL |
7,325 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
B32934B3105K000CAP FILM 1UF 10% 305VAC RADIAL |
2,646 | - |
|
Datasheet | Radial | 1 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|

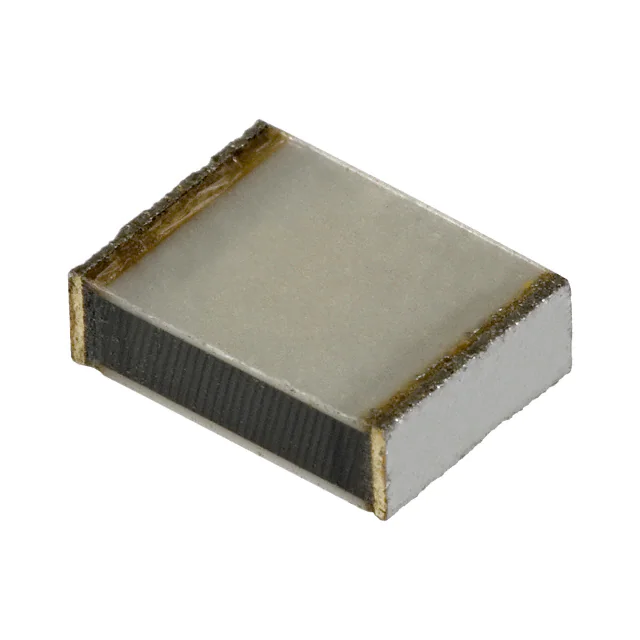

ECW-U1334KC9CAP FILM 0.33UF 10% 100VDC 2820 |
13,975 | - |
|
Datasheet | 2820 (7150 Metric) | 0.33 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.146" (3.70mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E2685KFCAP FILM 6.8UF 10% 250VDC RADIAL |
7,901 | - |
|
Datasheet | Radial | 6.8 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.921" (23.40mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|

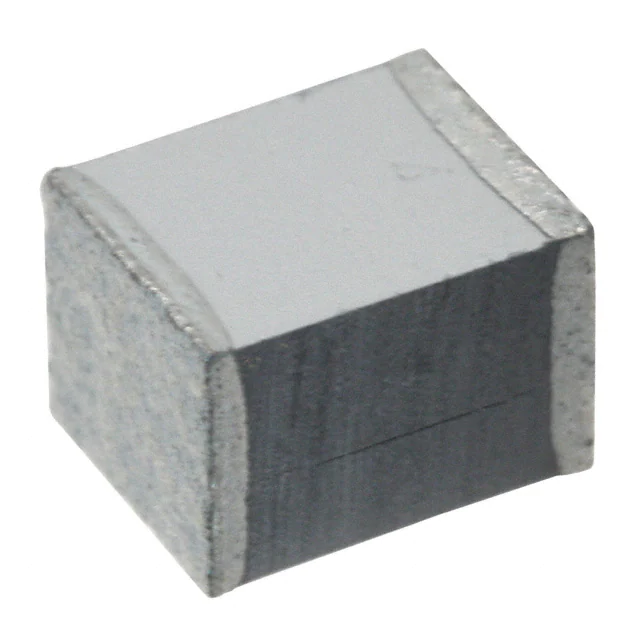

CB052E0105JBCCAP FILM 1UF 5% 100VDC 2824 |
4,976 | - |
|
Datasheet | 2824 (7260 Metric) | 1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.224" (5.70mm) | Solder Pads | - | General Purpose | - | - |
|
R76PN33304030JCAP FILM 0.33UF 5% 630VDC RADIAL |
2,738 | - |
|
Datasheet | Radial | 0.33 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
63MU103KZ12012CAP FILM 10000PF 10% 63VDC 0805 |
350 | - |
|
Datasheet | 0805 (2012 Metric) | 10000 pF | ±10% | - | 63V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
LDECD4100KA0N00CAP FILM 1UF 10% 50VDC 2220 |
11,137 | - |
|
Datasheet | 2220 (5750 Metric) | 1 µF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
LDEME3100JA5N00CAP FILM 0.1UF 5% 400VDC 2824 |
13,274 | - |
|
Datasheet | 2824 (7260 Metric) | 0.1 µF | ±5% | 160V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.213" (5.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDEDE4150KA0N00CAP FILM 1.5UF 10% 63VDC 2824 |
10,477 | - |
|
Datasheet | 2824 (7260 Metric) | 1.5 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.169" (4.30mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDEDE4100KA5N00CAP FILM 1UF 10% 63VDC 2824 |
7,111 | - |
|
Datasheet | 2824 (7260 Metric) | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.122" (3.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDEEE4100KA0N00CAP FILM 1UF 10% 100VDC 2824 |
29,938 | - |
|
Datasheet | 2824 (7260 Metric) | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.213" (5.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
B32923H3225MCAP FILM 2.2UF 20% 630VDC RADIAL |
851 | - |
|
Datasheet | Radial | 2.2 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.571" W (26.50mm x 14.50mm) | 1.169" (29.70mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|

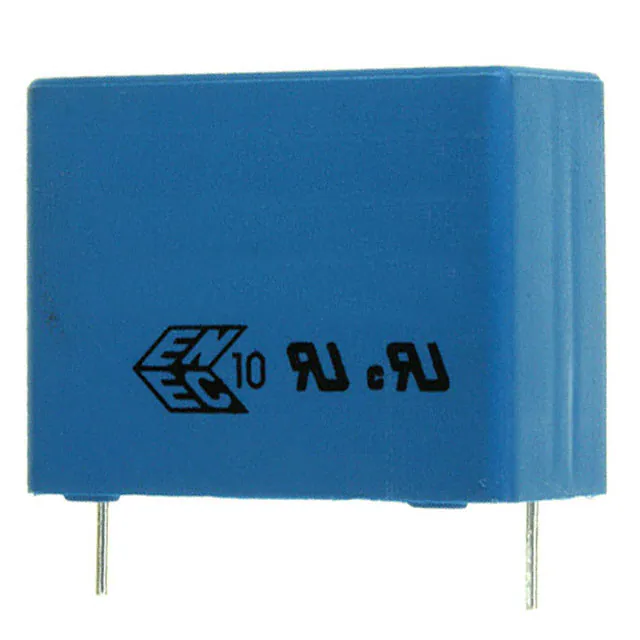

B32924C3475M000CAP FILM 4.7UF 20% 630VDC RADIAL |
800 | - |
|
Datasheet | Radial | 4.7 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
MKP1O133306F00KSSDCAP FILM 0.33UF 10% 1KVDC RAD |
980 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|

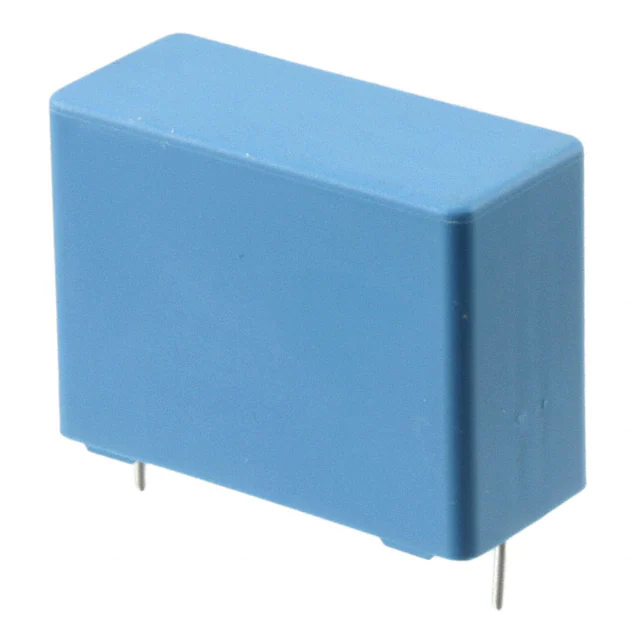

B32024A3334M000CAP FILM 0.33UF 20% 1.5KVDC RAD |
6,277 | - |
|
Datasheet | Radial | 0.33 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
R474R34705001KCAP FILM 0.47UF 10% 1KVDC RADIAL |
2,985 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
PHE450PF6470JF13R06L2CAP FILM 0.47UF 5% 1KVDC RADIAL |
2,571 | - |
|
Datasheet | Radial | 0.47 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
