Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R82CC4220Z370JCAP FILM 2.2UF 5% 50VDC RADIAL |
39,133 | - |
|
Datasheet | Radial | 2.2 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
LDEEC3100KA5N00CAP FILM 0.1UF 10% 100VDC 1812 |
14,031 | - |
|
Datasheet | 1812 (4532 Metric) | 0.1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDEQD1100KA5N00CAP FILM 1000PF 10% 1KVDC 2220 |
5,997 | - |
|
Datasheet | 2220 (5750 Metric) | 1000 pF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.075" (1.90mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
R46KN347000N0MCAP FILM 0.47UF 20% 560VDC RAD |
29,926 | - |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|

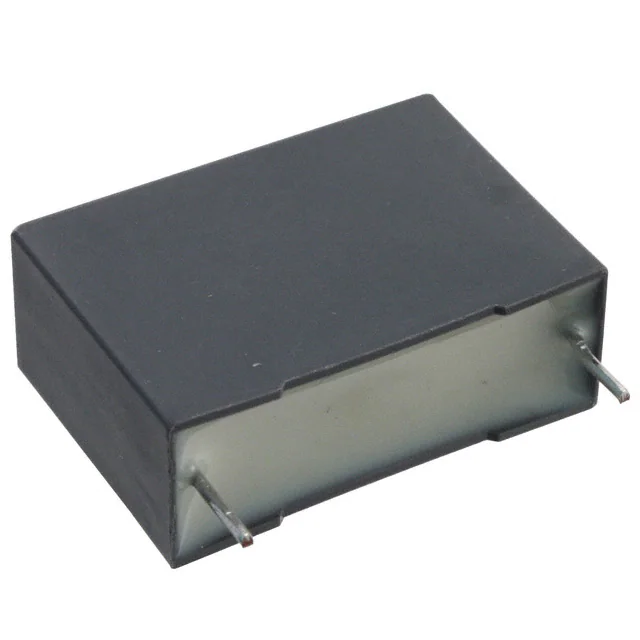

R463N410000N2MCAP FILM 1UF 20% 630VDC RADIAL |
9,533 | - |
|
Datasheet | Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
LDECB3100KA0N00CAP FILM 0.1UF 10% 50VDC 1210 |
10,819 | - |
|
Datasheet | 1210 (3225 Metric) | 0.1 µF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.083" (2.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PME271Y510MR30CAP FILM 10000PF 20% 1KVDC RAD |
1,982 | - |
|
Datasheet | Radial | 10000 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.205" W (18.50mm x 5.20mm) | 0.413" (10.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | Y2 | - |
|
|
LDEPD2100KA5N00CAP FILM 10000PF 10% 630VDC 2220 |
27,279 | - |
|
Datasheet | 2220 (5750 Metric) | 10000 pF | ±10% | 200V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.118" (3.00mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
R71QR41004010KCAP FILM 1UF 10% 1KVDC RADIAL |
8,217 | - |
|
Datasheet | Radial | 1 µF | ±10% | 275V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
R46KN415040P1MCAP FILM 1.5UF 20% 560VDC RADIAL |
3,880 | - |
|
Datasheet | Radial | 1.5 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
