Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

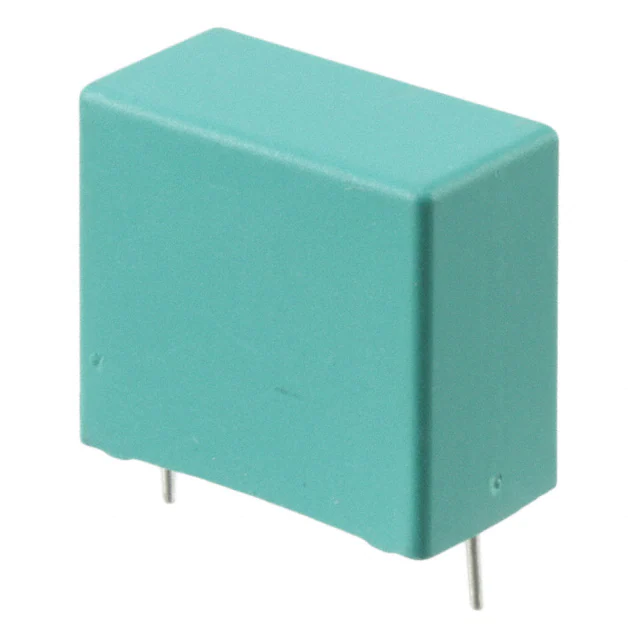

PHE850ED6220MD20R06L2CAP FILM 0.22UF 20% 1.25KVDC RAD |
166 | - |
|
Datasheet | Radial | 0.22 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.531" W (26.00mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
R76PN33304030JCAP FILM 0.33UF 5% 630VDC RADIAL |
2,738 | - |
|
Datasheet | Radial | 0.33 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
LDECD4100KA0N00CAP FILM 1UF 10% 50VDC 2220 |
11,137 | - |
|
Datasheet | 2220 (5750 Metric) | 1 µF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|

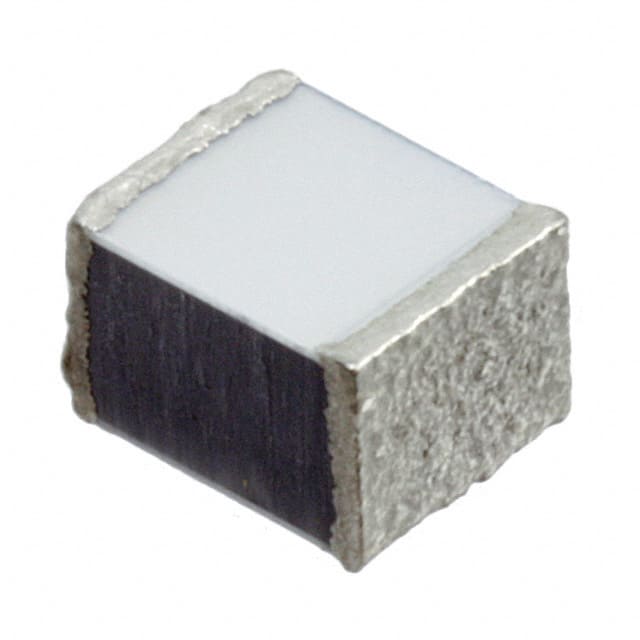

LDEME3100JA5N00CAP FILM 0.1UF 5% 400VDC 2824 |
13,274 | - |
|
Datasheet | 2824 (7260 Metric) | 0.1 µF | ±5% | 160V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.213" (5.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDEDE4150KA0N00CAP FILM 1.5UF 10% 63VDC 2824 |
10,477 | - |
|
Datasheet | 2824 (7260 Metric) | 1.5 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.169" (4.30mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDEDE4100KA5N00CAP FILM 1UF 10% 63VDC 2824 |
7,111 | - |
|
Datasheet | 2824 (7260 Metric) | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.122" (3.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDEEE4100KA0N00CAP FILM 1UF 10% 100VDC 2824 |
29,938 | - |
|
Datasheet | 2824 (7260 Metric) | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.213" (5.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
R474R34705001KCAP FILM 0.47UF 10% 1KVDC RADIAL |
2,985 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
PHE450PF6470JF13R06L2CAP FILM 0.47UF 5% 1KVDC RADIAL |
2,571 | - |
|
Datasheet | Radial | 0.47 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
PHE845VY6220MR30L2CAP FILM 0.22UF 20% 1.5KVDC RAD |
4,215 | - |
|
Datasheet | Radial | 0.22 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
