Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDEDD4100JA0N00CAP FILM 1UF 5% 63VDC 2220 |
3,344 | - |
|
Datasheet | 2220 (5750 Metric) | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|

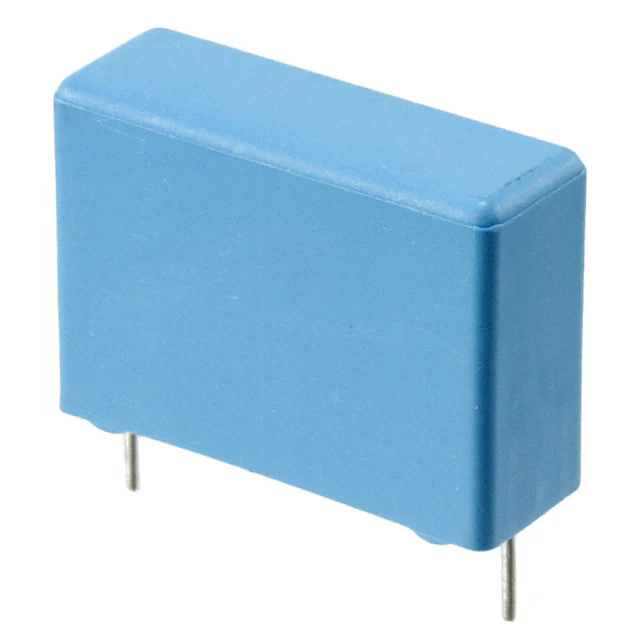

PHE450XD5100JD15R06L2CAP FILM 10000PF 5% 3KVDC RADIAL |
1,950 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 1000V (1kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|

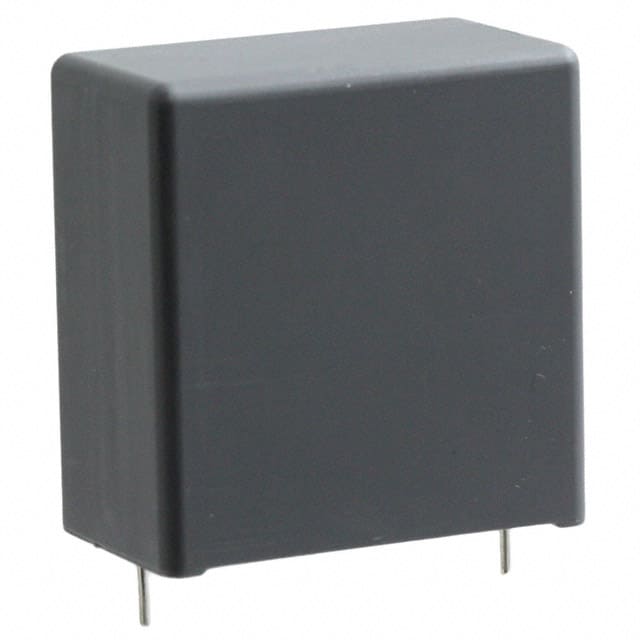

R463R447000M2MCAP FILM 4.7UF 20% 630VDC RADIAL |
3,288 | - |
|
Datasheet | Radial | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
PME271M647KR30CAP FILM 0.47UF 10% 275VAC RAD |
140 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X2 | - |
|
PME264NE6100MR30CAP FILM 0.1UF 20% 660VAC RADIAL |
164 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 660V | - | Paper, Metallized | - | -40°C ~ 85°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X2 | - |
|
SMC5.7104J50J35TR12CAP FILM 0.1UF 5% 50VDC 2220 |
4,841 | - |
|
Datasheet | 2220 (5750 Metric) | 0.1 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.165" (4.20mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
PHE850ER7100MR03R06L2CAP FILM 1UF 20% 1.25KVDC RADIAL |
1,450 | - |
|
Datasheet | Radial | 1 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.417" (36.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | Y2 | - |
|

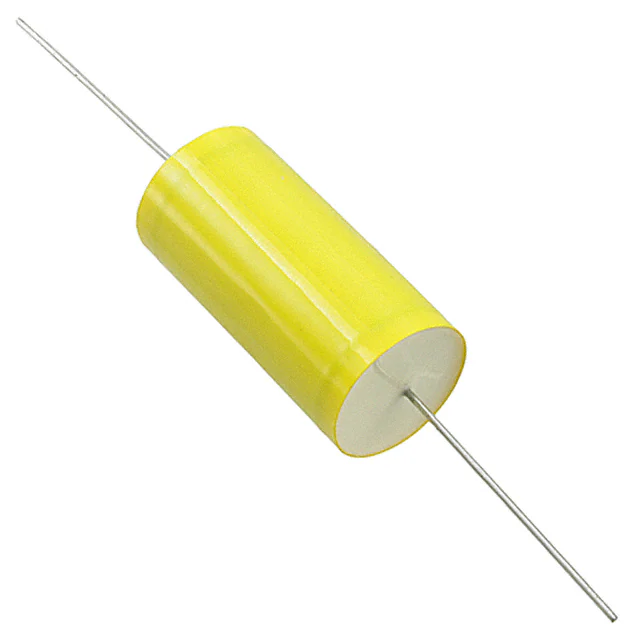

C4CAYUD3100AA1JCAP FILM 0.1UF 5% 3KVDC AXIAL |
467 | - |
|
Datasheet | Axial | 0.1 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 12.8 mOhms | -40°C ~ 85°C | Through Hole | 1.063" Dia x 1.732" L (27.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
R76QW4100SE30KCAP FILM 1UF 10% 1KVDC RADIAL |
3,493 | - |
|
Datasheet | Radial | 1 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C4ATDBW5200A30JCAP FILM 20UF 5% 250VDC RADIAL |
3,444 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 4.2 mOhms | -40°C ~ 85°C | Through Hole | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
