Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R76QD0220SE00JCAP FILM 220PF 5% 1KVDC RADIAL |
7,605 | - |
|
Datasheet | Radial | 220 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.319" (8.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R76UI0100SE40JCAP FILM 100PF 5% 2KVDC RADIAL |
4,753 | - |
|
Datasheet | Radial | 100 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 6.366 Ohms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

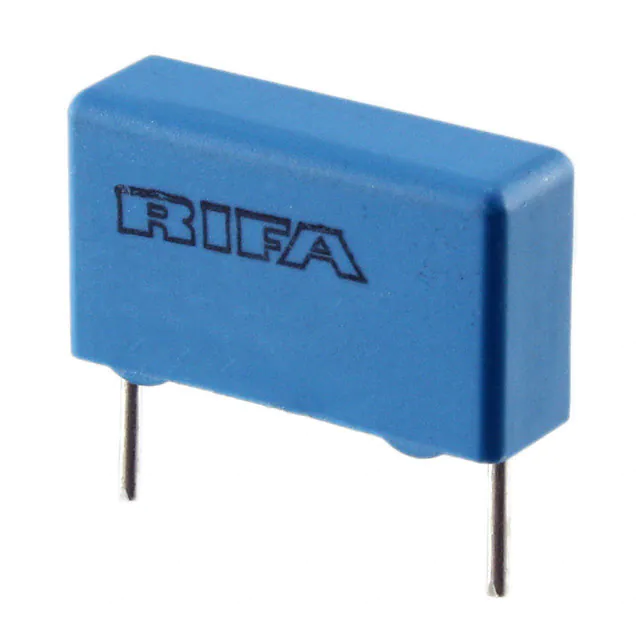

PHE450PB5100JR06CAP FILM 10000PF 5% 1KVDC RADIAL |
2,792 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|

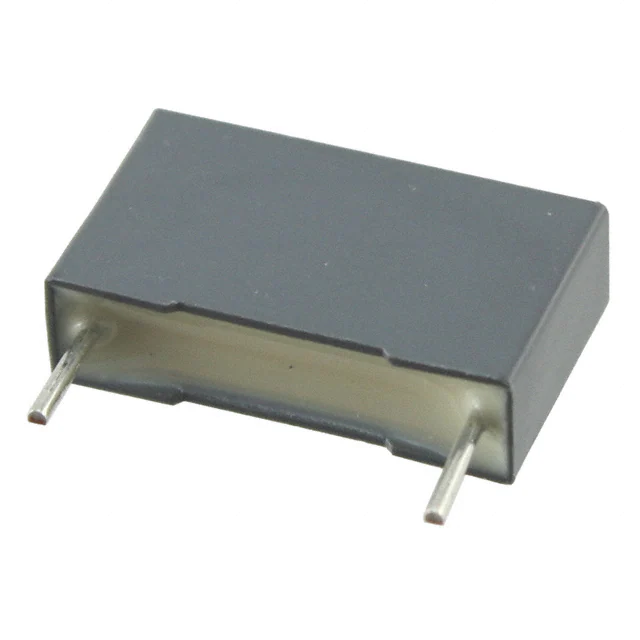

R73UI0470SE03JCAP FILM 470PF 5% 2KVDC RADIAL |
5,013 | - |
|
Datasheet | Radial | 470 pF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R463I33305002KCAP FILM 0.33UF 10% 630VDC RAD |
1,300 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.732" (18.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R82EC4100Z370JCAP FILM 1UF 5% 100VDC RADIAL |
10,000 | - |
|
Datasheet | Radial | 1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
R76QF1100SE00JCAP FILM 1000PF 5% 1KVDC RADIAL |
709 | - |
|
Datasheet | Radial | 1000 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | - | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
SMR5102J50J01L16.5CBULKCAP FILM 1000PF 5% 50VDC RADIAL |
3,013 | - |
|
Datasheet | Radial | 1000 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
PME271YA4100MR30CAP FILM 1000PF 20% 1KVDC RADIAL |
2,572 | - |
|
Datasheet | Radial | 1000 pF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.531" L x 0.154" W (13.50mm x 3.90mm) | 0.295" (7.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
R46KI333050N0KCAP FILM 0.33UF 10% 560VDC RAD |
24,022 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
