Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F43KR3500ZA01KCAP FILM 0.5UF 10% 275VAC RADIAL |
40 | - |
|
Datasheet | Radial | 0.5 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | Insulated Flexible Leads | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
R75MR44704030JCAP FILM 4.7UF 5% 400VDC RADIAL |
28 | - |
|
Datasheet | Radial | 4.7 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C4AQIBU5120M12JCAP FILM 12UF 5% 800VDC RADIAL |
83 | - |
|
Datasheet | Radial | 12 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 5.7 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C276CC35200AA0JCAP FILM 20UF 5% 470VAC RADIAL |
55 | - |
|
Datasheet | Radial, Can | 20 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 2.992" (76.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
C4AF9BU4550F12KFILM CAP AC, 5.5 UF, 10%,310 VAC |
30 | - |
|
Datasheet | Radial | 5.5 µF | ±10% | 310V | 620V | Polypropylene (PP), Metallized | 13 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|

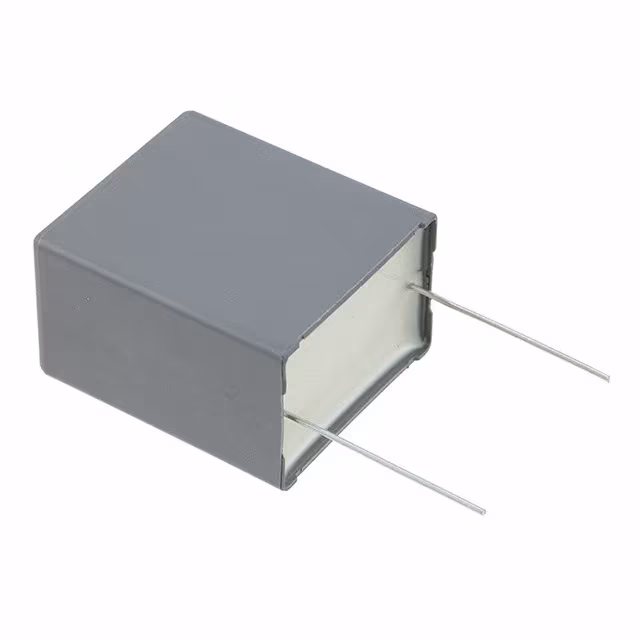

R463R447050M1KCAP FILM 4.7UF 10% 630VDC RADIAL |
3,695 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
C274AC24800AA0JCAP FILM 8UF 5% 470VAC RADIAL |
67 | - |
|
Datasheet | Radial, Can | 8 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
R75TW333050L3JCAP FILM 0.33UF 5% 1.6KVDC RAD |
66 | - |
|
Datasheet | Radial | 0.33 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 8.2 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.752" (19.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R76PR412050H3JCAP FILM 1.2UF 5% 630VDC RADIAL |
33 | - |
|
Datasheet | Radial | 1.2 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 2.7 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C4AF3BU4220A12KCAP FILM 2.2UF 10% 400VAC RADIAL |
60 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 400V | - | Polypropylene (PP), Metallized | 4.7 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
