Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQPBU4500M12JCAP FILM 5UF 5% 1.2KVDC RADIAL |
45 | - |
|
Datasheet | Radial | 5 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R71VR510050H6KFILM, RADIAL, PULSE, SINGLE META |
91 | - |
|
Datasheet | Radial | 10 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
R75TR339050H3JCAP FILM 0.39UF 5% 1.6KVDC RAD |
70 | - |
|
Datasheet | Radial | 0.39 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 8.2 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C276CC34800AA0JCAP FILM 8UF 5% 470VAC RADIAL |
48 | - |
|
Datasheet | Radial, Can | 8 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
C274AC35100AA0JCAP FILM 10UF 5% 470VAC RADIAL |
34 | - |
|
Datasheet | Radial, Can | 10 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.972" (75.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
C878BF34300SA4JCAP FILM 3UF 5% 470VAC RADIAL |
90 | - |
|
Datasheet | Radial, Can | 3 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C4AQOBU4800P12JCAP FILM 8UF 5% 900VDC RADIAL |
44 | - |
|
Datasheet | Radial | 8 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 7.3 mOhms | -55°C ~ 125°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
C4AF9BW4750F3FKFILM CAP AC, 7.5 UF, 10%,310 VAC |
29 | - |
|
Datasheet | Radial - 4 Leads | 7.5 µF | ±10% | 310V | 620V | Polypropylene (PP), Metallized | 10.6 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|

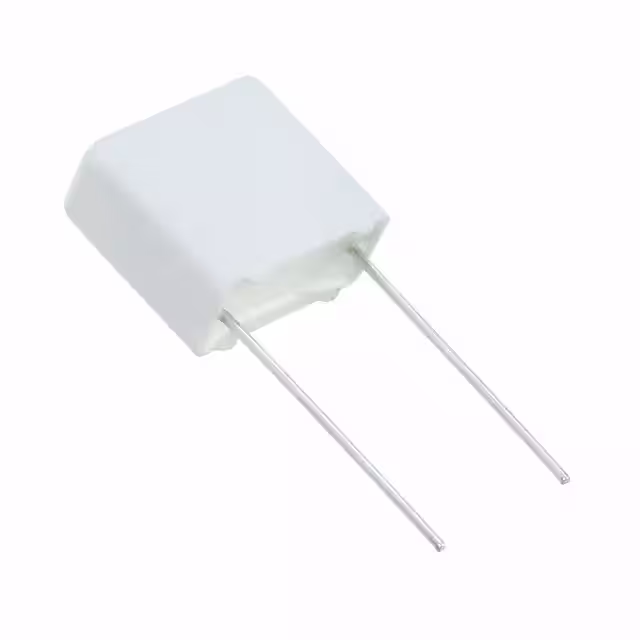

SMR10105J63A04L16.5CBULKCAP FILM 1UF 5% 63VDC RADIAL |
67 | - |
|
Datasheet | Radial | 1 µF | ±5% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | High Temperature |
|
|
C878AF24600AA1JCAP FILM 6UF 5% 470VAC RADIAL |
47 | - |
|
Datasheet | Radial, Can | 6 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
