Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C284ACA4400AL0JCAP FILM 4UF 5% 470VAC RADIAL |
41 | - |
|
Datasheet | Radial, Can | 4 µF | ±5% | 470V | - | Polypropylene (PP) | - | -25°C ~ 85°C | Chassis Mount | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | Wire Leads | - | Motor Run | - | - |
|

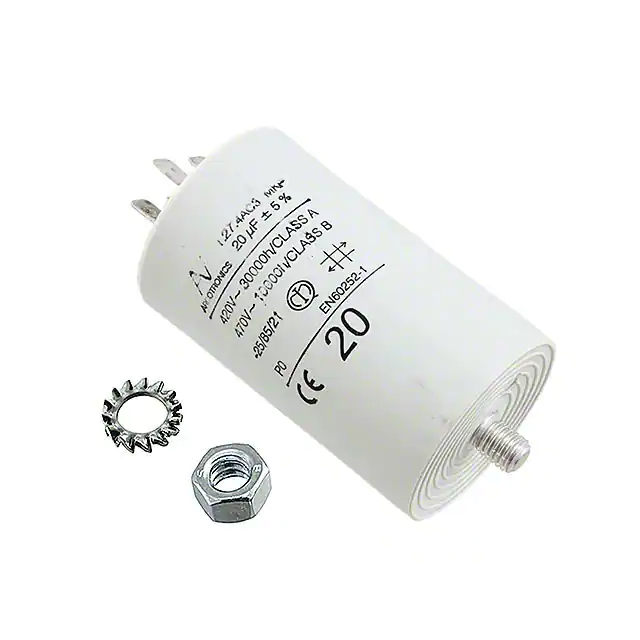

C274AC35200AA0JCAP FILM 20UF 5% 470VAC RADIAL |
88 | - |
|
Datasheet | Radial, Can | 20 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 2.992" (76.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
C4ATJBW4100A3DJCAP FILM 1UF 5% 700VDC RADIAL |
92 | - |
|
Datasheet | Radial - 4 Leads | 1 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
R76MW468050H3JCAP FILM 6.8UF 5% 400VDC RADIAL |
62 | - |
|
Datasheet | Radial | 6.8 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 0.6 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C4AQIBW5300M3LJCAP FILM 30UF 5% 800VDC RADIAL |
60 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQNBW5220M36JCAP FILM 22UF 5% 1KVDC RADIAL |
30 | - |
|
Datasheet | Radial - 4 Leads | 22 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 3.6 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.819" (46.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C4AF1BW5245T3OKFILM, POWER, METALLIZED POLYPROP |
90 | - |
|
Datasheet | Radial - 4 Leads | 24.5 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 2.4 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
C4AF9BW5200F3OKFILM CAP AC, 20 UF, 10%,310 VAC |
90 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | 310V | 620V | Polypropylene (PP), Metallized | 4.7 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
|
C4AQLBW5700A3LKCAP FILM 70UF 10% 500VDC RADIAL |
92 | - |
|
Datasheet | Radial - 4 Leads | 70 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AQIBW5300A3LJCAP FILM 30UF 5% 800VDC RADIAL |
66 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
